Lutron Electronics GRAFIK Eye seeTouch SG-4SN Series Manual

Lutron Electronics GRAFIK Eye seeTouch SG-4SN Series Manual

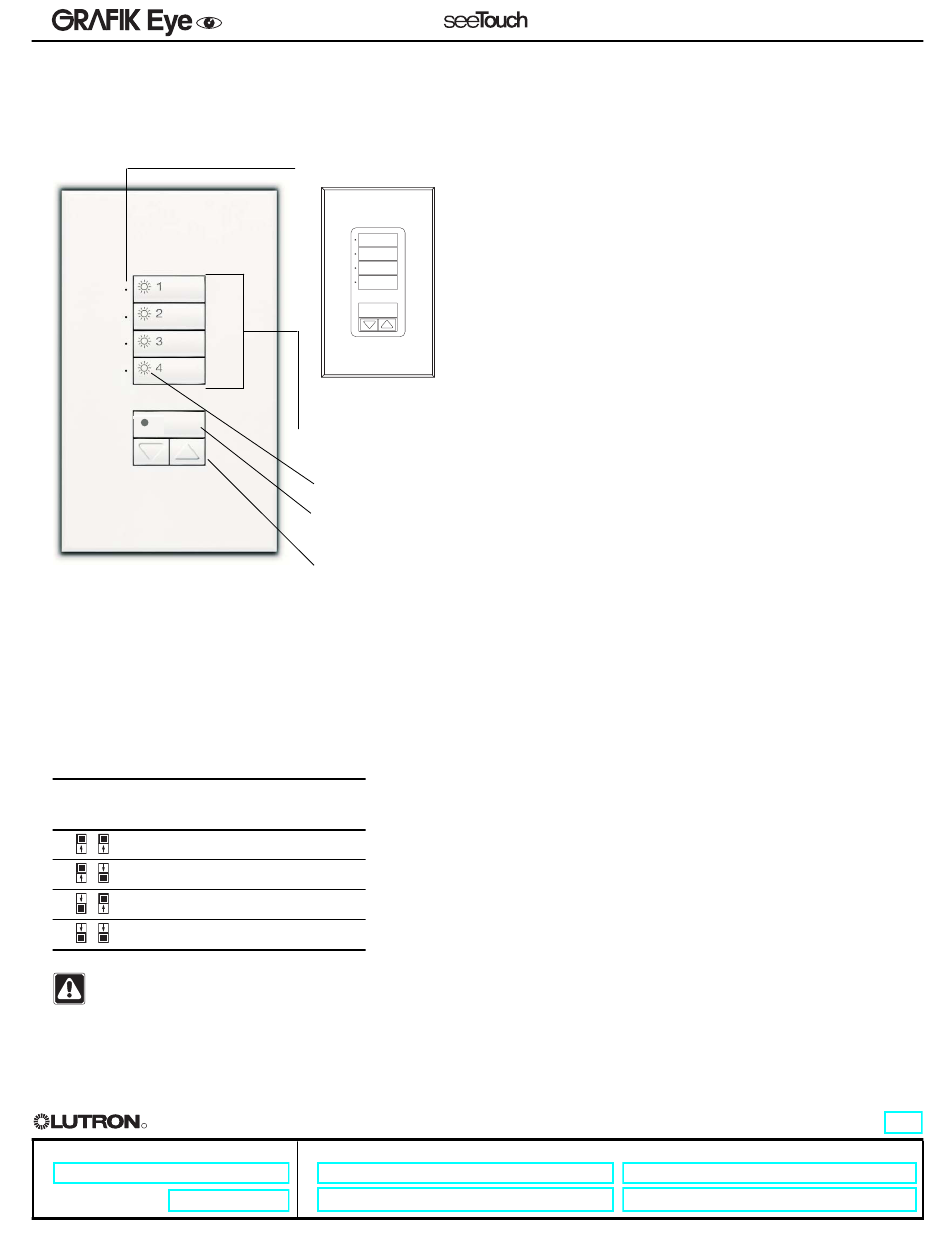

4-scene with off and raise/lower wallstation

Advertisement

Quick Links

®
Color and Engraving Codes
SG-4SN-___-___

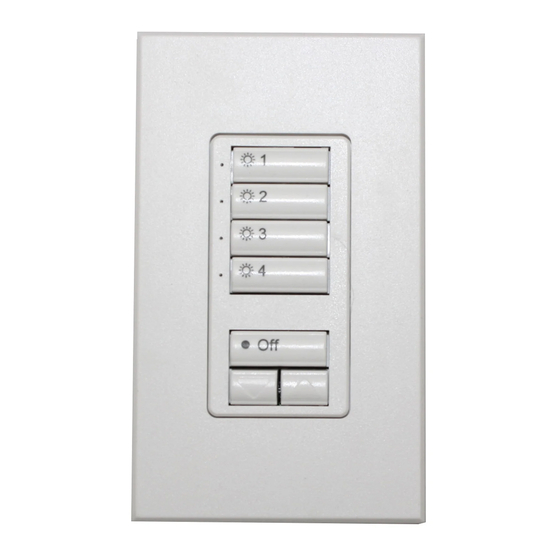

4-Scene with Off and Raise/Lower
Wallstation
Off
SG-4S N-WH-EGN
Field Selected Functionality
DIP Switch Settings
Scene selection
buttons activate:
5 6
Scenes 1 to 4
Scenes 5 to 8
Scenes 9 to 12
Scenes 13 to 16
DIP Switches 7-10 are set at the factory. Do not change
switch 7, 8, or 9. Switch 10 controls the button backlight.
Refer to product installation guide for more details.
S P E C I F I C AT I O N S U B M I T TA L
R
Job Name:
Job Number:
LEDs
SG-4S I-WH-E00
(Insert version)
Scene Selection Buttons
Engraving
Off
Master Raise/Lower
Model Numbers:
TM
Description
• Used to select and adjust scenes in GRAFIK Eye
Control Units.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it
easy to find and operate the control in low light
conditions.
• Optional button engraving is angled up to the eye
for easy reading.
• Scene selection functionality can be selected in
the field.
• Status LEDs indicate which scene is selected.
• Off button turns all lights off.
• Master raise/lower brightens or dims all lighting in
the selected scene.
• Works with GRAFIK Eye 3000 and 4000 Series
Control Units.
• Selects scenes in just one Control Unit or a group
of up to eight Control Units.
Finish and Engraving Options
• Available with button engraving.
• Three engraving options are available: General
Engraving, Standard Engraving, & Non-Standard
Text Engraving. For more details, please refer to
the seeTouch Ordering Guide (P/N 367-274) or
visit the website at www.lutron.com/seetouch. .
Wallstations
sg-4 01.29.04
Page
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRAFIK Eye seeTouch SG-4SN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lutron Electronics GRAFIK Eye seeTouch SG-4SN Series

  • Page 1 Wallstations ® sg-4 01.29.04 Color and Engraving Codes SG-4SN-___-___ Description 4-Scene with Off and Raise/Lower • Used to select and adjust scenes in GRAFIK Eye Control Units. Wallstation • Large, rounded buttons are easy to use. LEDs • Backlit buttons with optional engraving make it easy to find and operate the control in low light conditions.
  • Page 2 Wallstations ® sg-9 01.29.04 Specifications Dimensions Front View Power Low-voltage type Class 2 (PELV). Operating voltage:12/24 V Direct Current. Key Design Features • Field-changeable button and faceplate assemblies allow easy customization. • Front accessible DIP switches allow change of function without removing the unit from the wall.
  • Page 3 Wallstations ® sg-10 01.29.04 Color/Finish and Customizing Information Color/Finish Multi-ganging Matte Finishes • Order Insert (I) style controls. • To order new Wallplates for multi-ganging, specify White “R3” openings in a Lutron NovaT* multi-gang FB Ivory ® Beige (fins broken) Series model number. Gray Brown Examples:...
  • Page 4 Wallstations ® sg-11 01.29.04 Wallstation Installation Low-voltage Class 2 (PELV) Wiring DIP Switches • Use low-voltage Class 2 (PELV) wiring to daisy-chain • Set DIP switches 1-4 to give the Wallstation a unique system address from 1 to 16. Wallstations to Control Units and other components. •...

This manual is also suitable for:

Grafik eye seetouch sg-4sn-wh-egnGrafik eye seetouch sg-4si-be-egn
