Lutron Electronics Grafik Eye seeTouch SG-4MN Series Manual

®
Color and Engraving Codes
SG-4MN-___-___

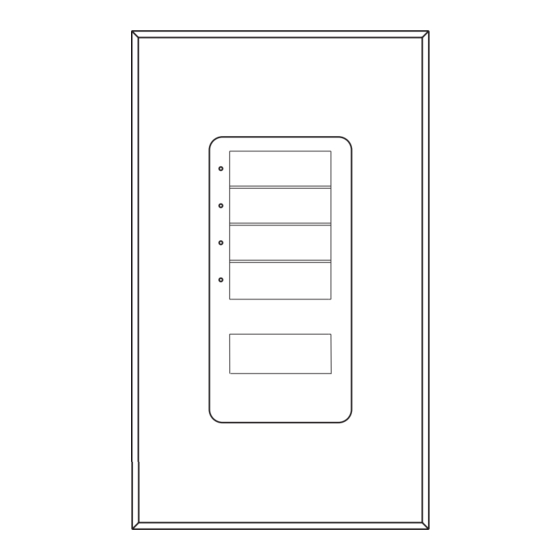

4-Button Master Wallstation
SG-4M N-WH-E01
Field Selected Functionality
DIP Switch Settings
Bottom button:
5 6
Turns all associated Control
Units on to Scene 1.
Turns all associated Control
Units off.
DIP Switches 7-10 are set at the factory. Do not change
switch 7, 8, or 9. Switch 10 controls the button backlight.
Refer to product installation guide for more details.
S P E C I F I C AT I O N S U B M I T TA L
R
Job Name:
Job Number:

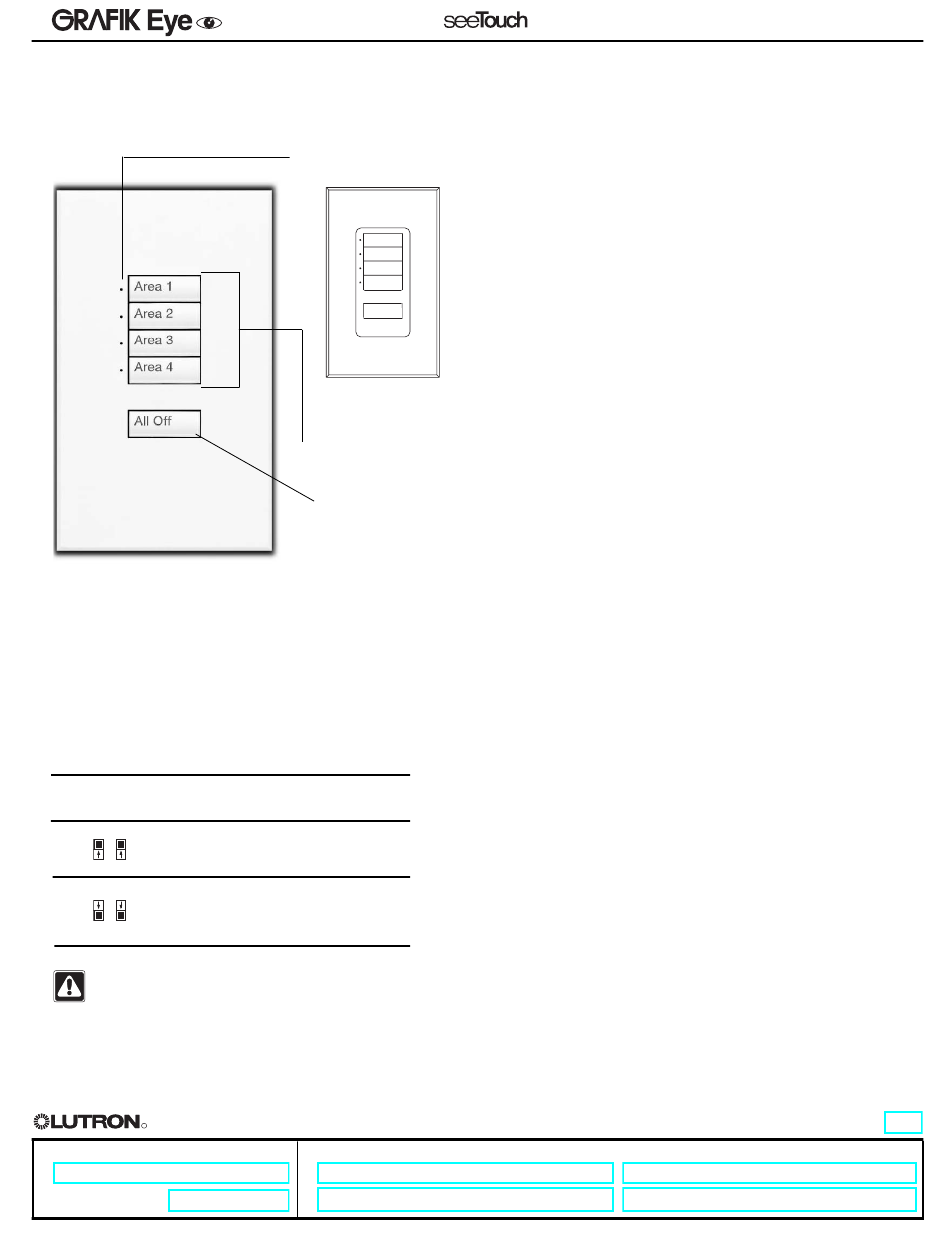

LEDs
SG-4M I-WH-E00
(Insert version)
Toggle buttons
All off
(or all on to Scene 1)
Model Numbers:
TM
Description
• Allows user to control several different areas of
GRAFIK Eye lighting from one master location.
• Each button can operate a different GRAFIK Eye
Control Unit or group of Control Units.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it
easy to find and operate the control in low light
conditions.
• Optional button engraving is angled up to the eye
for easy reading.
• Four toggle buttons turn their associated Control
Units on (to Scene 1) and off.
• Status LEDs indicate which Control Units are on.
• The bottom button either turns all associated
Control Units on (to scene 1) or off, depending on
settings of DIP switches 5 and 6.
• In a home, a Master Wallstation might be placed
inside the main entry. The first button would turn
on foyer lights, the second button would light a
path to the kitchen, etc.
• The Master Wallstation works with a total of eight
GRAFIK Eye 3000 or 4000 Series Control Units.
The Control Units can be assigned to buttons in
any combination.
Finish and Engraving Options
• Available with button engraving.
• Three engraving options are available: General
Engraving, Standard Engraving, & Non-Standard
Text Engraving. For more details, please refer to
the seeTouch Ordering Guide (P/N 367-274) or
visit the website at www.lutron.com/seetouch.
Wallstations
sg-8 01.29.04
