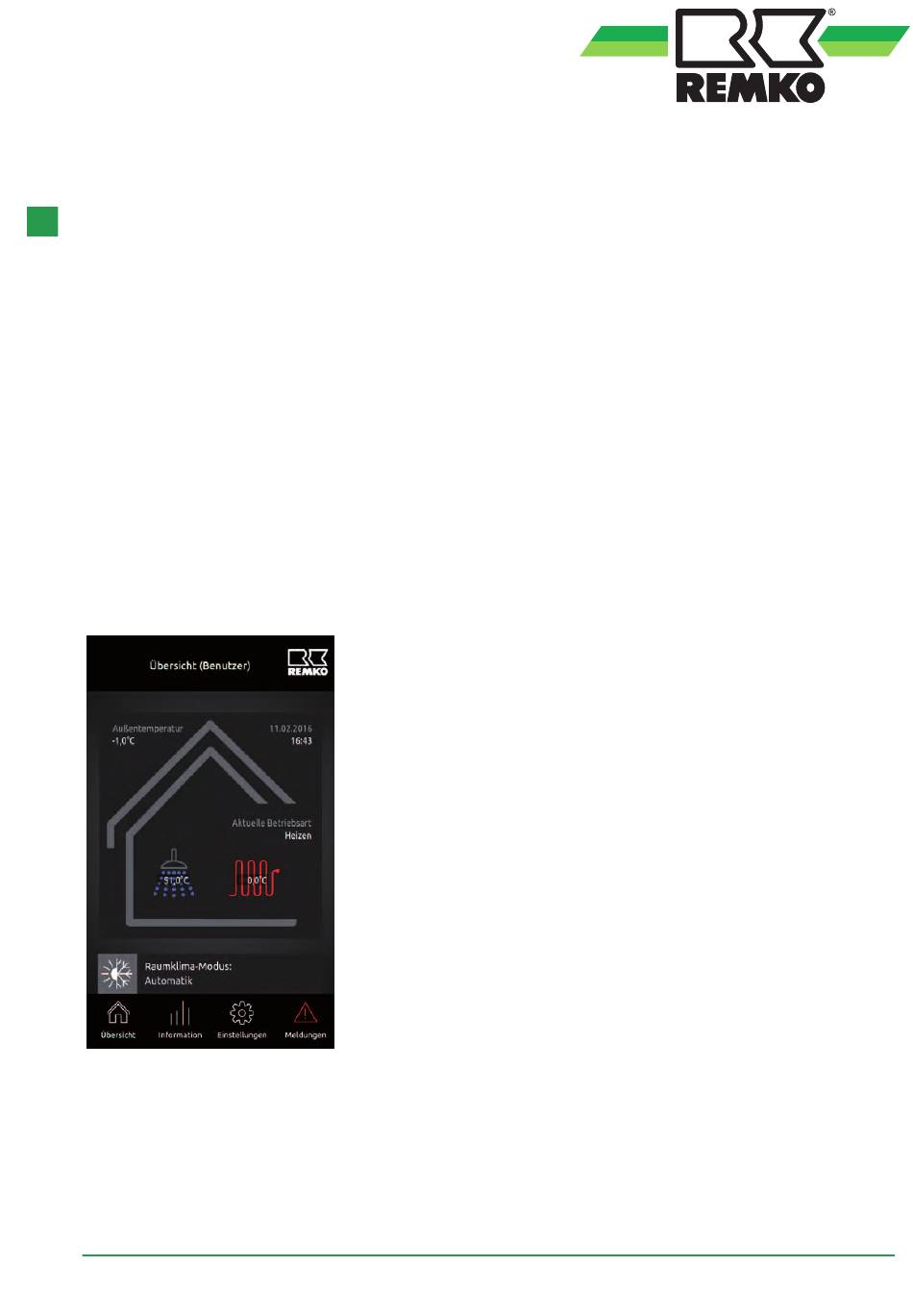

- Page 1 Operating and installation instructions REMKO Smart-Control Touch For the room air conditioner series ML, MVV, MXD, MXW, RVD and RXT Manual for experienced specialists 0229-2019-07 Edition 1, en_GB Read the instructions prior to performing any task!
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original...
-
Page 3: Table Of Contents
2.1 Unit data............................7 2.2 Unit dimensions..........................7 2.3 Scope of delivery..........................7 Operation............................... 8 3.1 General operation........................... 8 3.2 External access via REMKO Smart Web..................12 Assembly and installation........................14 Electrical wiring and interfaces......................19 Commissioning........................... 23 Compatibility............................23... -
Page 4: Safety And Usage Instructions
REMKO Smart-Control Touch Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage. -
Page 5: Safety Notes For The Operator
"certificate of warranty" to The setup, connection and operation of the REMKO GmbH & Co. KG at the time when the units and its components must be undertaken units are purchased and commissioned. -
Page 6: Transportation And Packaging
REMKO Smart-Control Touch 1.11 Transportation and packaging The units are shipped in sturdy transport pack- aging. Immediately check the units on delivery and make a note of any damage or missing parts on the delivery note. Inform the forwarding agent and contractual partner. -
Page 7: Technical Data And Scope Of Delivery
Technical data and scope of delivery 2.1 Unit data Series Smart Control Touch Operating mode Remote control Power supply +12 V DC Enclosure class Max. power consumption Max. cable length Recommended cable type (connecting line) sheathed, min. 0.5 Environment Ambient temperature °C 0-70 Air humidity... -
Page 8: Operation
3.1 General operation and weather information. The higher-level room cli- mate mode can also be viewed and changed here. The REMKO Smart Control Touch regulation is an operating module with touch display. No buttons are required to adjust and change parameters. - Page 9 Settings Defining the higher-level operating mode Fig. 6: Settings Fig. 8: Room climate mode Under "Settings" it is possible to adjust the basic In the "Overview" window, the higher-level oper- settings of the Smart Control Touch and the oper- ating mode can be set under Room climate mode. ating settings of the individual indoor units.
- Page 10 REMKO Smart-Control Touch Making operating settings Status By pressing the basic control "Settings", all con- Switching the selected indoor unit on and off. By nected indoor units are displayed. After selecting selecting the "Timer" function, the controller the desired indoor unit, the following settings can adheres to the time programs.
- Page 11 Fig. 9: WPA2 Personal Authentication the expert level must be called up by pressing the REMKO logo in the upper right corner of the dis- When WPA2 Personal authentication is selected, play. A password must then be input using the the two items "SSID"...
-
Page 12: External Access Via Remko Smart Web
If there is a stable network connection between the router and the Smart Control Touch, it is possible with the REMKO Smart Web interface to mirror the display of the Smart Control Touch to a terminal device via the Internet. - Page 13 Indoor unit serial number The serial number of the indoor unit can be read from the name plate of the indoor unit, which is located behind the front panel for wall units and under the filter flap for ceiling cassettes. (EN: Serial number) Outdoor unit serial number (EN: Indoor unit*)
-
Page 14: Assembly And Installation
User In this window, additional users can be added to operate the controller and access to the REMKO service (limited to 1 hour) can be granted. Editing a unit Here, it is possible to edit the data that was input when adding the device. - Page 15 Remove the four marked Phillips screws and Place the mounting plate together with the then pull the mounting plate together with the electronics in the surface-mounted housing electronics out of the surface-mounted and then screw it to the surface-mounted housing. housing using the four marked Phillips screws.
- Page 16 REMKO Smart-Control Touch Place the aluminium frame in front of the Flush-mounted installation mounting plate using the magnets. For the flush-mounted installation, a double socket with the following dimensions must be provided at the desired installation position. Fig. 17: Double socket A 12V direct current source is required for the flush-mounted installation.
- Page 17 The flush-mounted installation can be carried out Remove the four marked Phillips screws and as follows: then pull the mounting plate together with the electronics out of the surface-mounted Pull through the aluminium frame fixed by housing. magnets and remove from the housing. The flush-mounted casing can now be Release the grey lever of the terminal block attached to the intended installation position.
- Page 18 REMKO Smart-Control Touch Place the mounting plate together with the Place the aluminium frame in front of the electronics in the surface-mounted housing mounting plate using the magnets. and then screw it to the surface-mounted housing using the four marked Phillips screws.
-
Page 19: Electrical Wiring And Interfaces
Electrical wiring and Power supply connection (12V/GND) interfaces For the surface-mounted installation, the trans- former included in the scope of delivery is used for the power supply (230V~ / 12V ). If the unit is flush-mounted, a 12V direct current source must be provided at the installation position. - Page 20 REMKO Smart-Control Touch Connection variants The Smart Control Touch is connected to the X, Y and E contacts of the indoor units in single-split and multi- split systems. With VRF systems of the MVV series, the required connections are located on the outdoor unit.
- Page 21 Fig. 20: Multi-split system connection 1: Router 5: Indoor unit 1 2: WiFi 6: Indoor unit 2,3,4... 3: Network cable 7: Flush-mounted power supply unit or power 4: Smart Control Touch supply unit with Euro plug...
- Page 22 REMKO Smart-Control Touch Fig. 21: VRF system connection 1: Router 5: Outdoor unit type MVV ...DC 2: WiFi 6: Flush-mounted power supply unit or power 3: Network cable supply unit with Euro plug 4: Smart Control Touch...
-
Page 23: Commissioning
Commissioning Compatibility Addressing the indoor units The Smart Control Touch is intended for connec- tion to the following device types: If the Smart Control Touch is to control several indoor units, an address must be assigned to the Single-split individual units. Ensure that each address is used only once. -
Page 24: Index
REMKO Smart-Control Touch Index Addressing the indoor units ....23 Safety Assembly ......14 Dangers of failure to observe the safety notes . - Page 26 REMKO Smart-Control Touch...
- Page 28 REMKO QUALITY WITH SYSTEMS Air-Conditioning | Heating | New Energies Telephone +49 (0) 5232 606-0 REMKO GmbH & Co. KG Hotline within Germany +49 (0) 5232 606-0 Klima- und Wärmetechnik Telefax +49 (0) 5232 606-260 Im Seelenkamp 12 E-mail info@remko.de...
