U N D E R C O U N T E R D O O R C L O S E D A N D 1 4 5 ˚ M A X O P E N I N G
CABINETRY
587 mm
TO BACK OF
APPLIANCE
SUB-ZERO DOOR
19 mm
DOOR PANEL
600 mm
DOOR PANEL

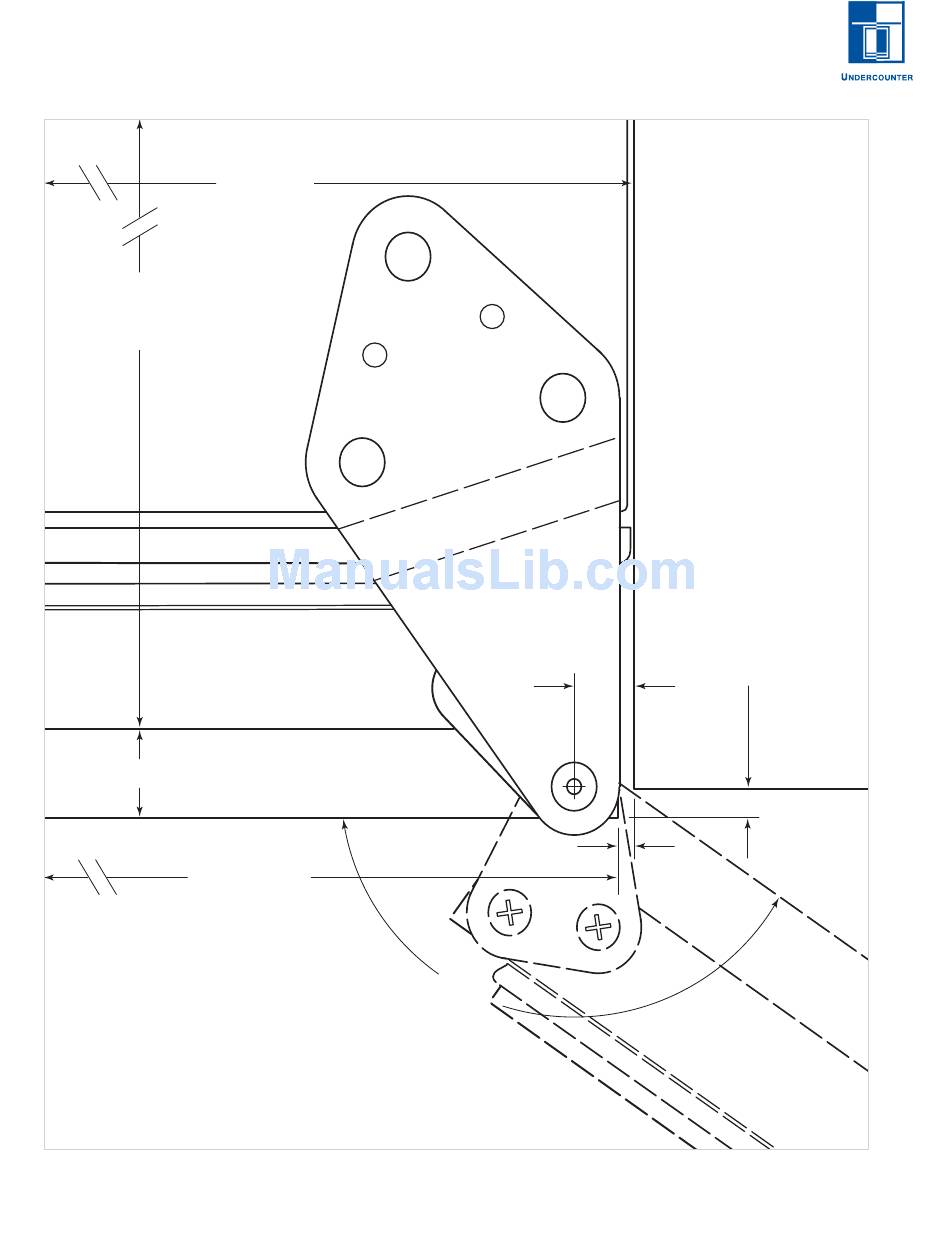

The full-scale illustration shows what
considerations you need to make for the
installation of the Undercounter unit and how
the maximum door opening may interact
with adjacent cabinets and countertops.
610 mm
OPENING
WIDTH
13
mm
145 *
˚
*
UNDERCOUNTER
UNIT MUST EXTEND
A MINIMUM 6 mm
BEYOND THE FRONT
SURFACE OF
ADJOINING
CABINETRY TO
ALLOW THE MAXIMUM
DOOR SWING
6 mm*
3 mm
DOOR
PANEL
SUB-ZERO
DOOR
71
