M O D E L I 4 2 4 – D O O R C L O S E D A N D 1 4 5 ˚ M A X O P E N I N G
587 mm
TO BACK OF
APPLIANCE
SUB-ZERO DOOR
19 mm

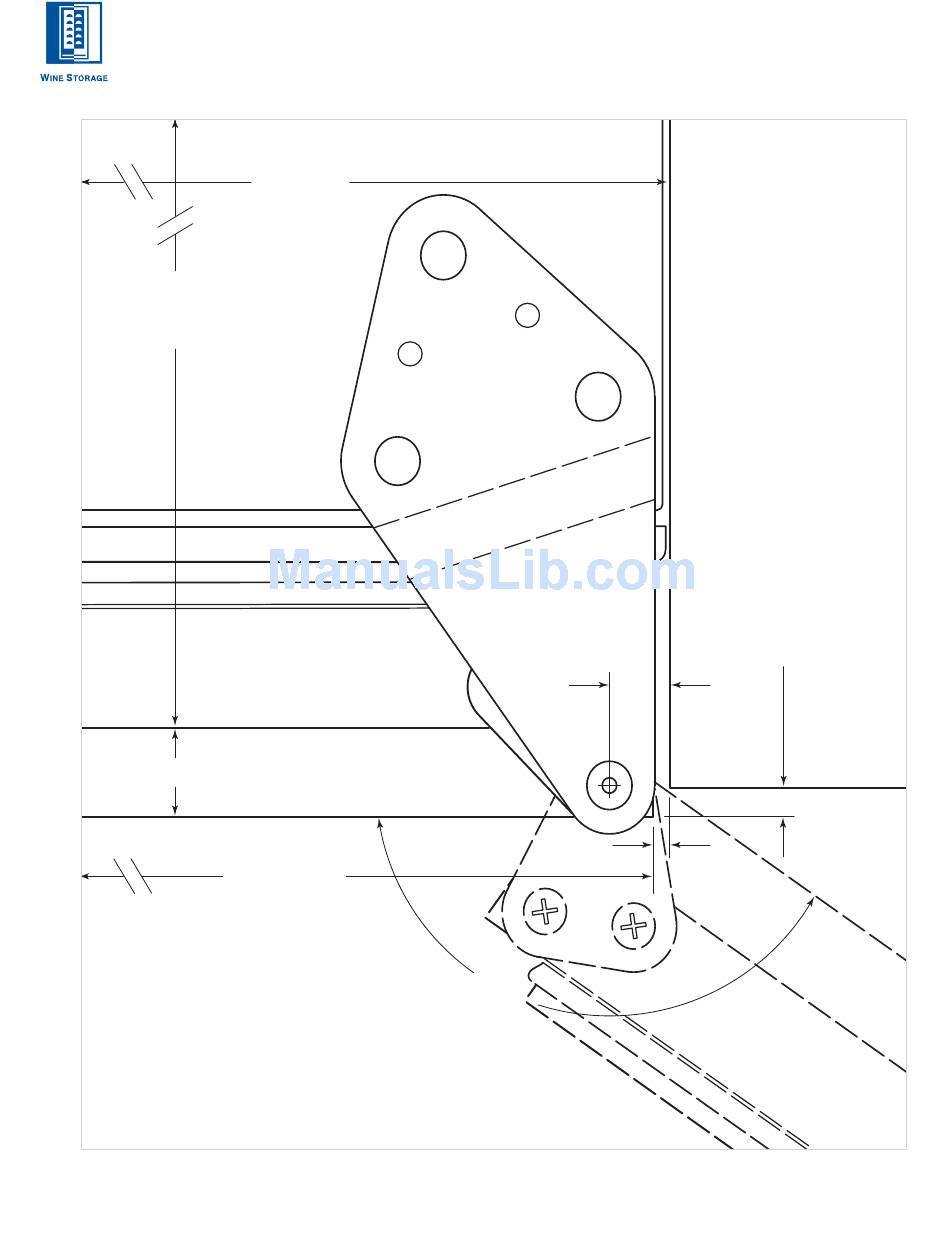

The full-scale illustration shows what
considerations you need to make for the
installation of Model I424 and how the
maximum door opening may interact with
adjacent cabinets and countertops.
62
610 mm
CABINETRY
OPENING
DOOR PANEL
600 mm
DOOR PANEL
WIDTH
13
mm
145 *
˚
*
MODEL I424 MUST
EXTEND A MINIMUM
6 mm BEYOND THE
FRONT SURFACE OF
ADJOINING
CABINETRY TO
ALLOW THE MAXIMUM
DOOR SWING
6 mm*
3 mm
DOOR
PANEL
SUB-ZERO
DOOR
