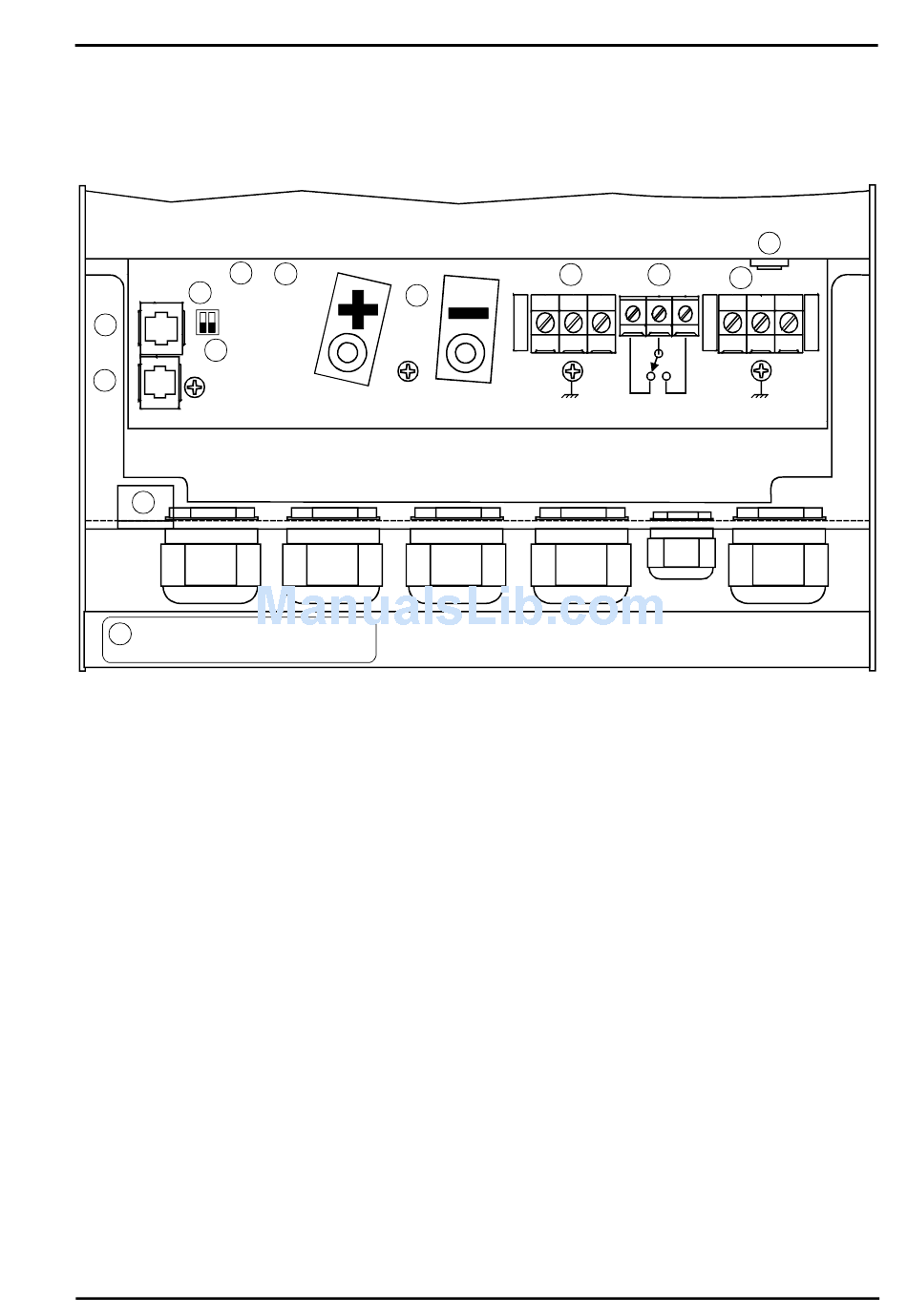

3.4 Connection Plan

Remote
L
control
RCT-01 D
C
E
F

temperature sensor CT35

remote power sharing RPS-01
M
J
A Battery +/-
B Reserved
C Remote contr.
D Transfer delay
E Equalize
F Temp.
G Aux. Contact
H AC Input
J ID Plate
K AC Output
L Reserved
M Hole
N Protection

3.5 Cabling

Connecting the HP-COMPACT is a very important step of the installation. You must take
care that all connection work is carried out in a clean and correct way and that under no
circumstance a cable is connected to a wrong terminal.
Connecting of the HP-COMPACT must be carried out in the following order. In case of
dismantling this order must be reversed.
User manual
B
A
Battery
Connection terminal (M8) for battery cable (HPC 4024/5048/
7048 with fuse)
Connection terminal for Remote Control RCC-01
Slide switch for Transfer Delay
Slide switch for equalization of the Battery
Connection terminal for Temperature sensor CT-35 and/or
Remote Power Sharing RPS-01
Connection terminal for Auxiliary Contact
Connection terminal for AC-input
Identification plate with Technical data and Serial number
Connection terminal for AC-output
Pass through hole for RCC-01, CT-35 and RPS-01
Thermal circuit breaker 30A (50A for HPC7048) for the
Transfer system
HP-COMPACT V3.0 E
H G
L N
Auxiliary
AC in
contact
HP-COMPACT
N
K
L N
AC out
