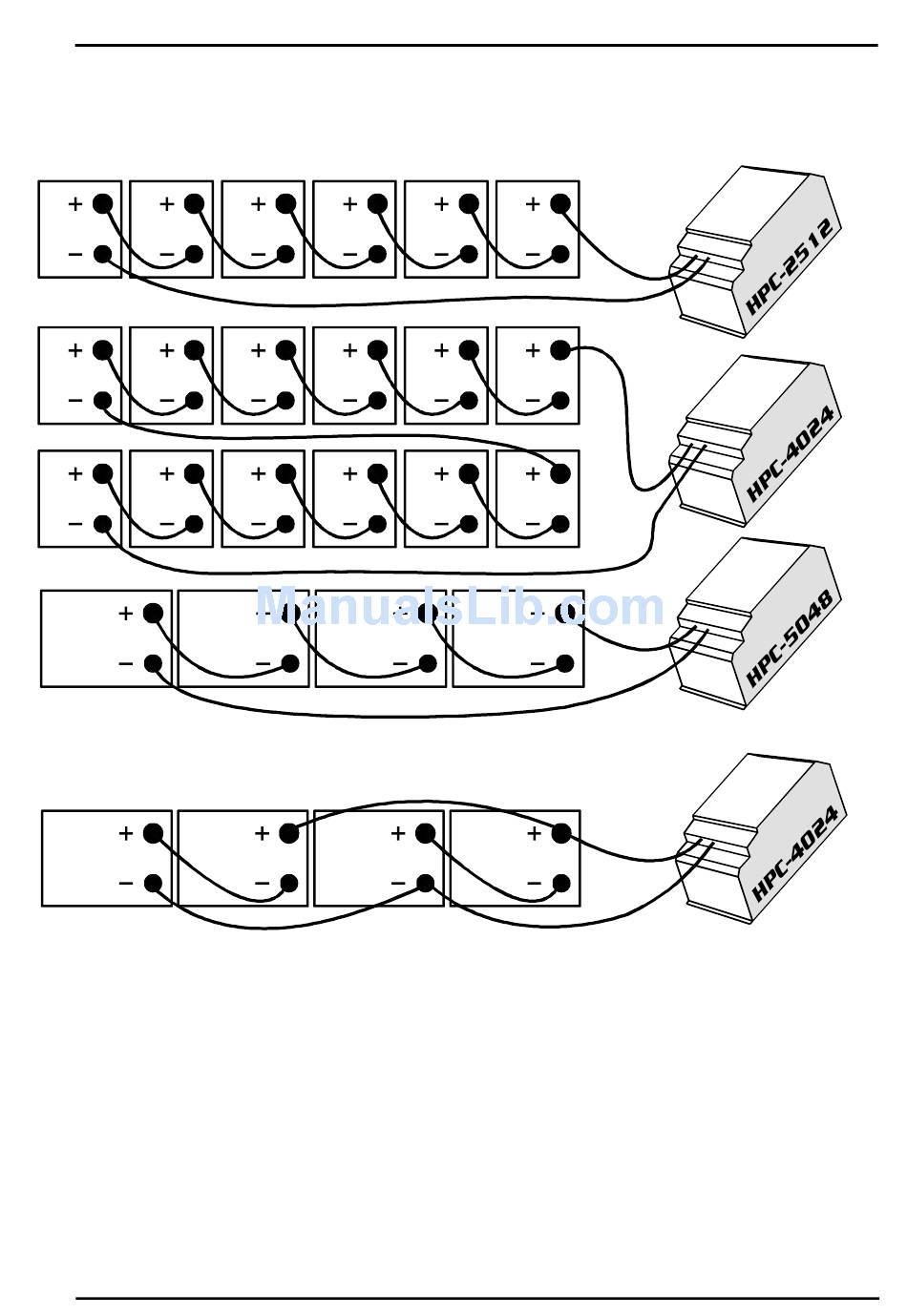

2.3.2 Connection in serie
2V 2V
2V 2V
2V 2V
12V 12V
2.3.3 Connection in parallel and in serie
12V 12V

3 Mounting and installing

3.1 Installation place

The location of the HP-COMPACT must be driven by the following criteria:
- Protection from unauthorized handling
- Dry dust free room, no condensation
- Never install directly over the battery and never in a cabinet together with the batteries
- Keep ventilation holes free
- In mobile installations it is important to keep the vibrations down as low as possible
User manual
2V 2V
2V 2V
2V 2V
12V
12V
HP-COMPACT V3.0 E
2V 2V
2V 2V
2V 2V
12V
12V
HP-COMPACT
