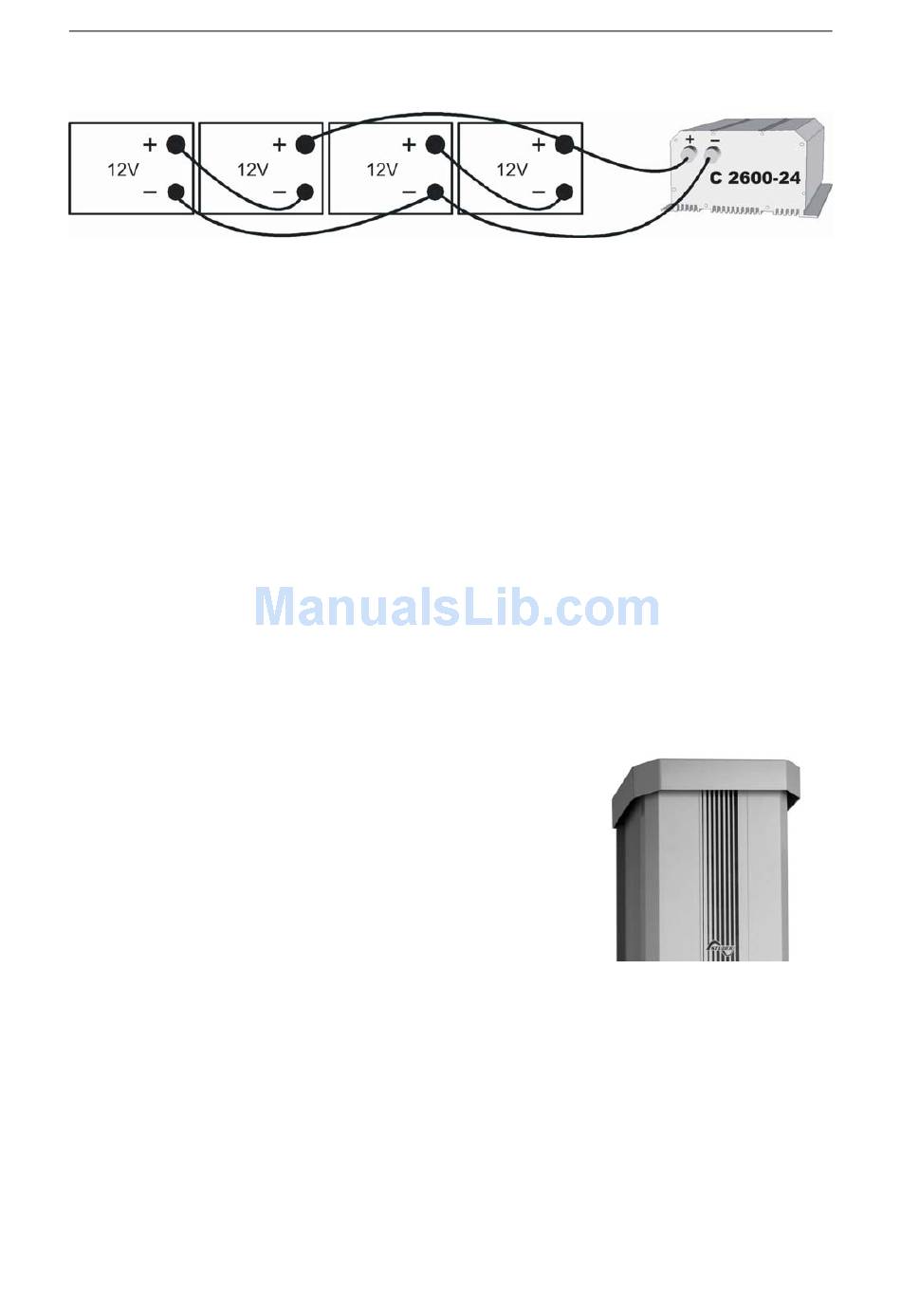

2.3.3 Serial and parallel connection
3

Mounting and installing

3.1

Installation place

The location of the COMPACT must be driven by the following criteria:
− Protection from unauthorized handling
− Dry dust free room, no condensation
− Never install directly over the battery and never in a cabinet together with the
batteries
− Keep ventilation holes free
− In mobile installations it is important to keep the vibrations down as low as
possible
3.2

Fixing

3.2.1 Fixing the COMPACT
Basically the COMPACT can be installed in any desired location. Preferred is that the
appliance be wall mounted with battery cables downwards. The COMPACT is fixed
on the wall with four screws through the four holes (diameter 5.5mm) which are
accessible from the outside. In motor vehicles COMPACT must be fixed on vibrations
reducing elements. The COMPACT must not be fixed on a combustible base, as the
back of the casing can get hot and reach up to 80 degree Celsius.
3.2.2 Protection cover IP-23
This cover IP23 (Order ref. CIP-23) can be easily
installed after the fixation of the COMPACT. For that
release a little the too screws down and more the tow up.
Then it's possible to pass the IP 23 cover between the
COMPACT and the wall. The cover must touch the
screws. Lock on the four screws, it's ready.
3.3

Connections

3.3.1 General instructions on connecting
− The cable connection on the terminals AC INPUT / AC OUTPUT / 16A 230VAC
are carried out with a screwdriver Nr.1 and the connection on the SOLAR
terminal with a screwdriver Nr.2.
− The conductor cross section on the terminals AC INPUT / AC OUTPUT / 16A
230VAC of the connecting cable must be minimum 2.5mm2.
− All connecting cables and also the mounted battery cables, must be fixed with
strain relief clamps.
− The COMPACT is delivered with battery cables already connected.
− The battery cables must never be extended. If the extension is unavoidable then
the conductor cross section must be elevated accordingly.
