2.2 Sending GPS Position to the Intuicom RTK Bridge–X from the
®
Trimble 252/262/372
It may be desired to send the corrected position of the receiver to the network in order to view
the position quality on the network. The RTK Bridge-X can be configured to accept a GGA
position on the serial port and use that position to send to the network. To be able to send the
GGA position from the receiver:
2.2.1 RTK Bridge–X setup
• The RTK Bridge-X must be configured to receive the GPS position from the data

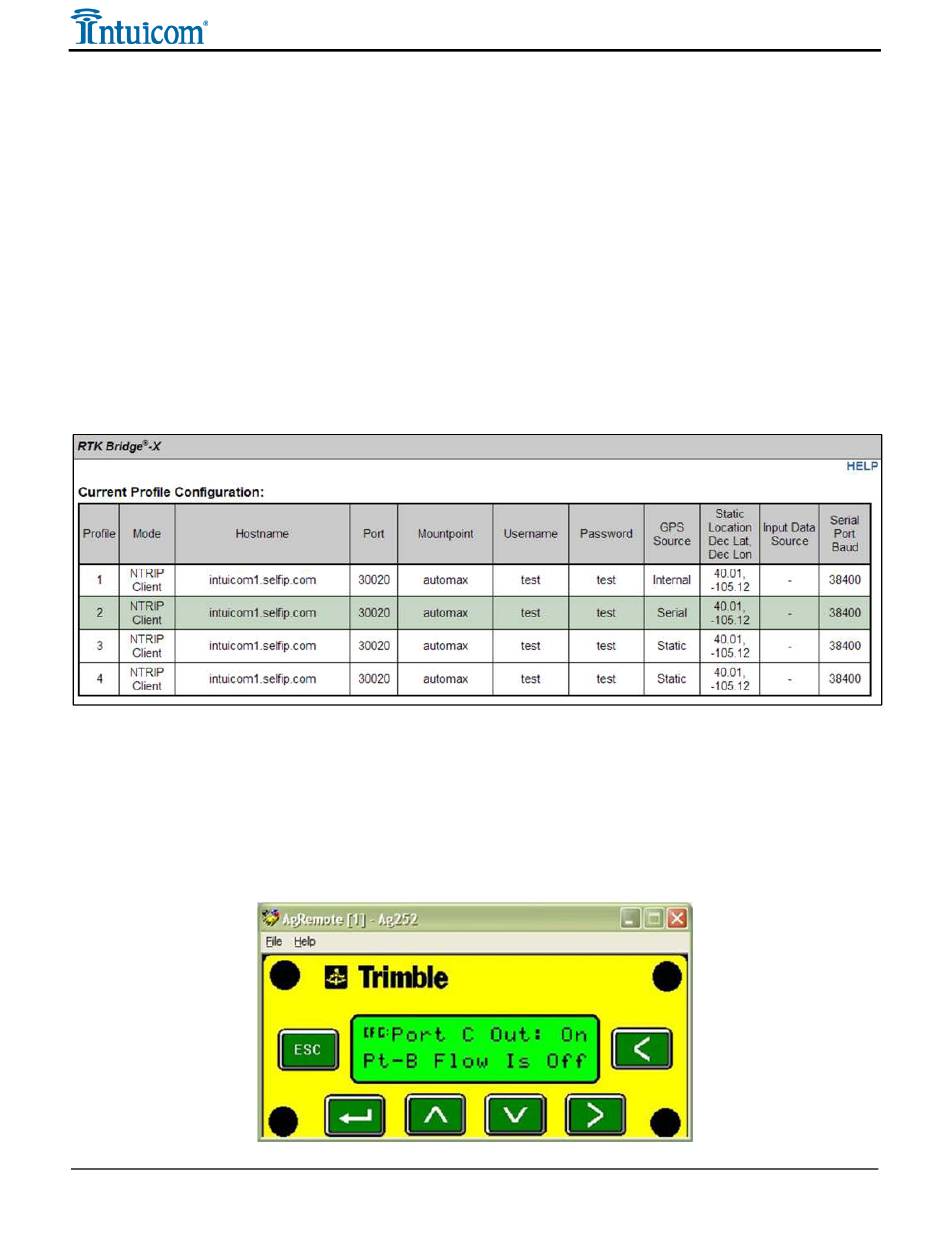

port. In the Profiles page, in the profile that is to be used, under GPS Source, select
Serial. The RTK Bridge-X is now ready to receive the GPS position from the Ag
252/262/372.
2.2.2 252/262/372 setup
• There are several settings that must be configured on the 252/262/372 to send the
GGA string to the RTK Bridge–X.
o Navigate to the Port C Configuration page in Ag Remote.
o Scroll down to Port C Out:
o Set to On
