• Confirm operation – Confirm the Intuicom RTK Bridge-M is correctly configured

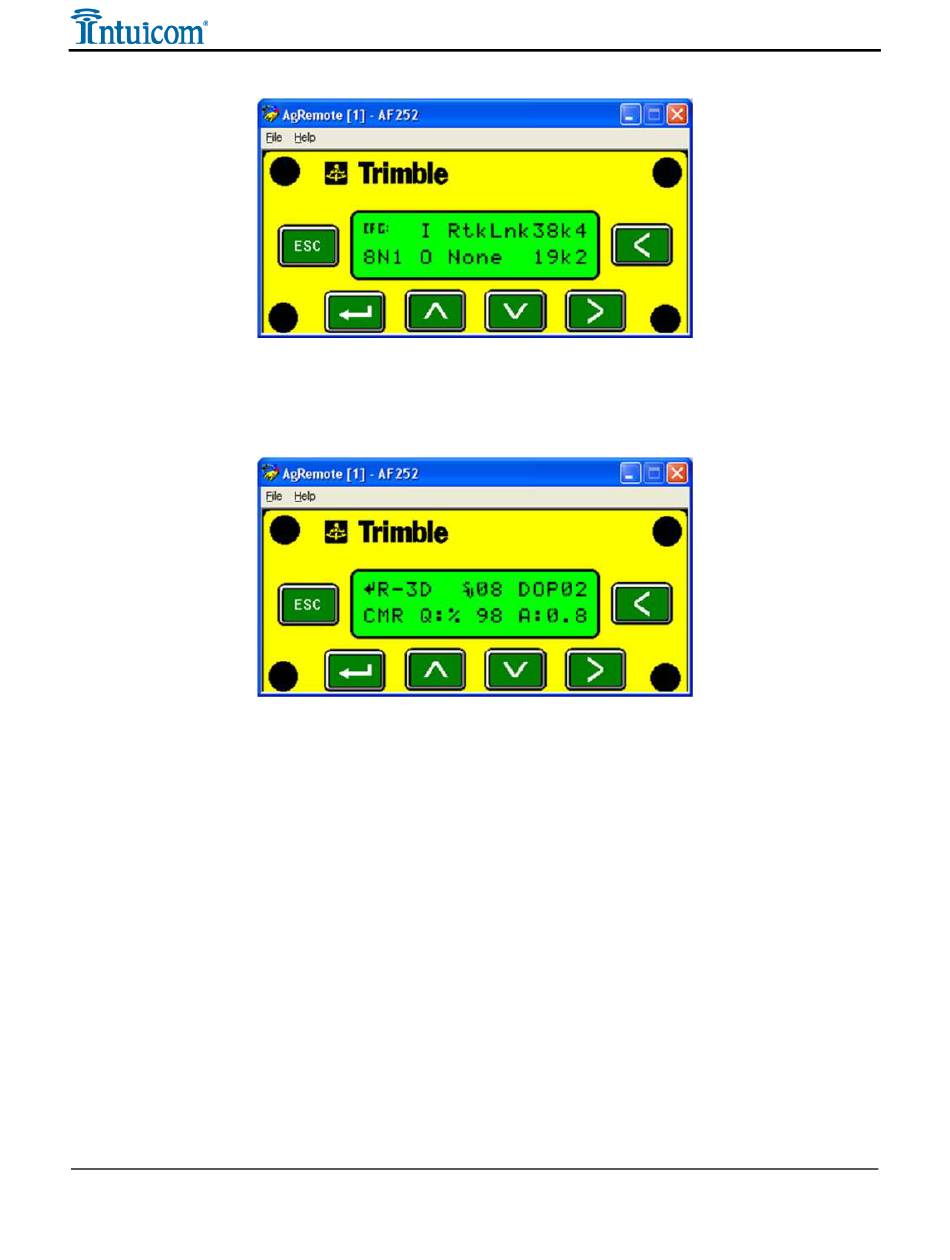

and its antennas are connected and within cellular coverage. The main status view in
AgRemote should report that it is receiving RTK corrections.
• A capital R indicates an RTK Fix, a lower case r indicates RTK float. The age is
typically between 1-2 seconds. The Q% should climb as the receiver is getting more
packets.
You have now demonstrated that the 252/262/372 is receiving corrections and fixing
position. This confirmation of Fixed RTK operation can also be visualized by a solid
GREEN LED on the roof-mounted 252/262/372 (opposite the Ports location).
