• Configure the pinout on the Deutsch connector on the RTK Bridge–X to 252/262/372
data/power cable to match the appropriate pin-out. See Pin-out Diagram 1
Deutsch
3
6
1
4
4

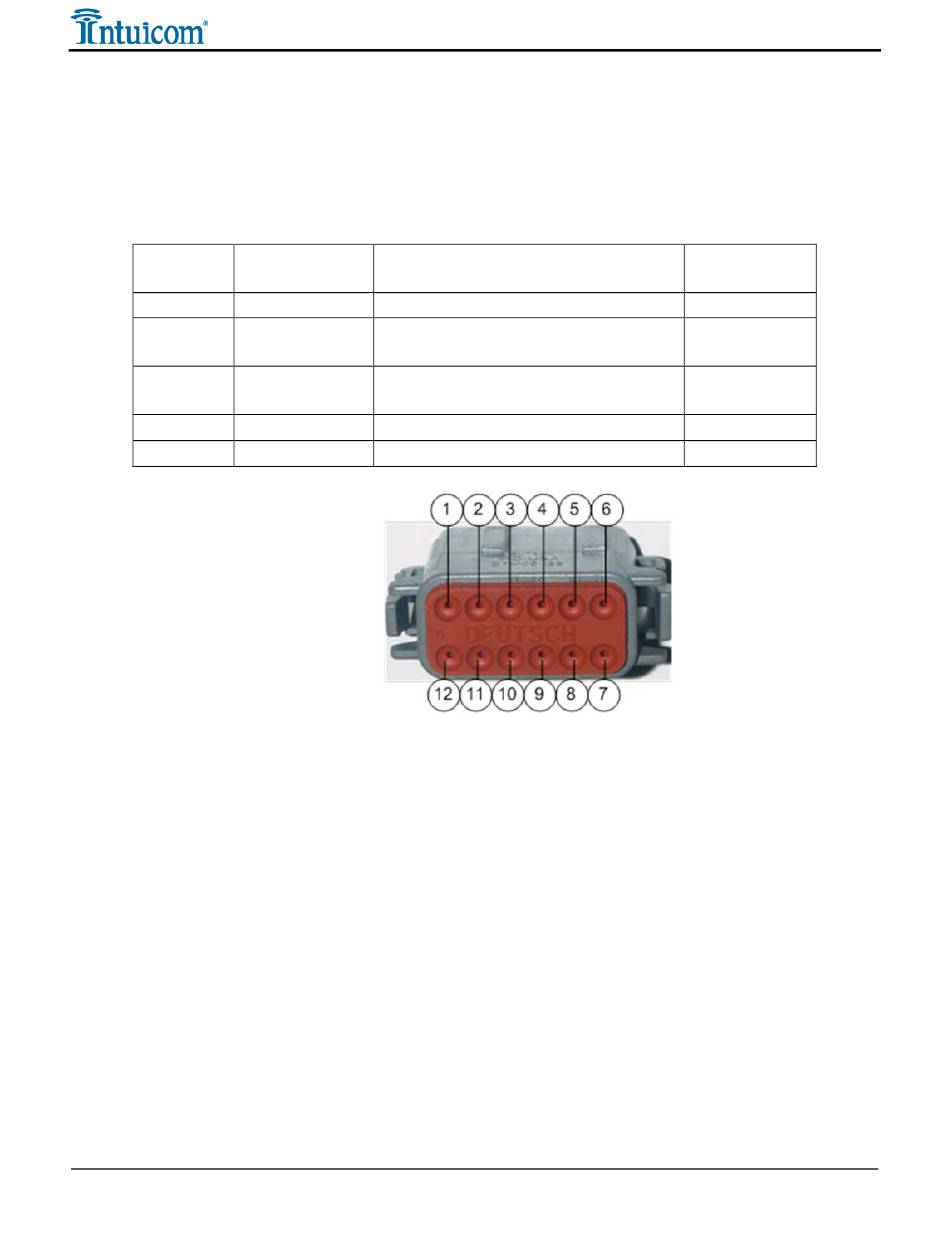

Deutsch connector
(DTM06-12S)
pinout
• Using the Intuicom RTK Bridge–X to 252/262/372 data/power cable (XRTKCAB-
DD15), connect the RTK Bridge–X data port to the B Port on the 252/262/372.
• Connect setup data/power cabling to the 252/262/372 Port A and a serial port on a PC
running AgRemote or connect to the receiver using a monitor with AgRemote or RDI
configuration software. Apply power and connect to the 252/262/372 with the
preferred software.
• Using AgRemote, configure the 252/262/372 receiver to receive RTK corrections in
the CMR format from Port C at a baud rate of 38400:
o The XRTKCAB-DD15 cable plugs into port B on the 252/262/372. However,
there are 2 serial port pinouts available on port B (labeled B & C). For this
application, port C is used.
o Configure DGPS Options – select the source as RTK
Version 1.0
Pin-out Diagram 1
Cable Color
Red
Receive (from RTK Bridge-X to
Green
Xmit (to RTK Bridge-X from
White
Black
Brown
Section 2: Installation Instructions
Signal
Power
remote device)
remote device)
Power Ground
Signal Ground
4
252/262/372
C-Port
10
8
6
11
5
