2 Installation Instructions

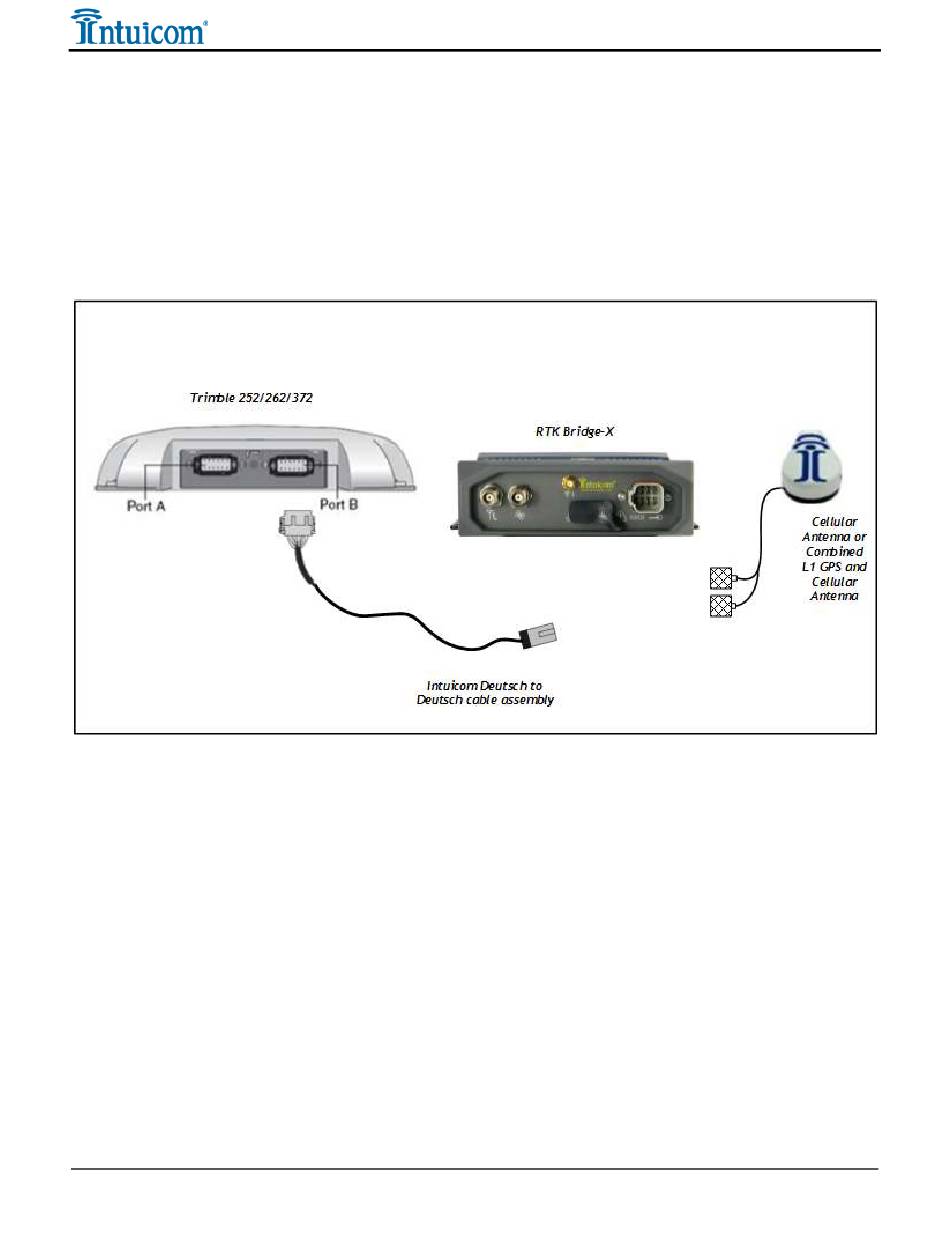

Below is the installation Diagram for the recommended installation of the Intuicom RTK
Bridge–X utilizing the equipment noted above.
2.1
Configuration
• Configure the Intuicom RTK Bridge–X to connect to GPS/GNSS Reference network
and obtain CMR/CMR+ correction data stream from an appropriate single reference
station, such as a VRS.
• Configure the resulting RTK correction data to be output at a known baud rate (a
baud rate of 38400 is recommended).
• Confirm GPS and cellular antenna (typically a combined antenna with two coaxial
cables with TNC connectors) are connected and placed where they have good sky
view and good cellular signal.
Version 1.0
Diagram 1
3
Section 2: Installation Instructions
Intuicom, Inc.
