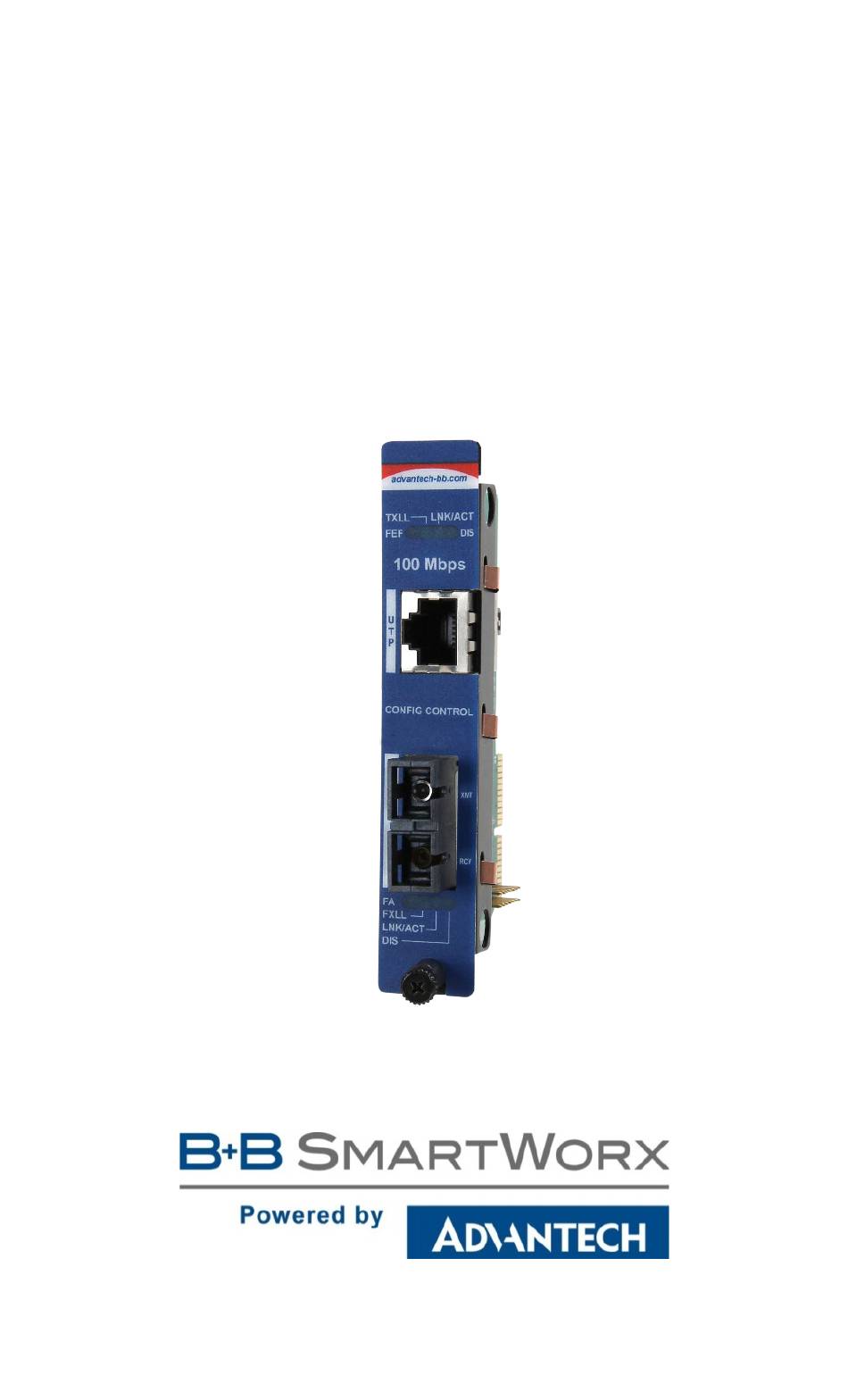

  • Page 1 iMcV-LIM with LFPT & ConfigControl USER MANUAL...
  • Page 2 Advantech B+B SmartWorx - Americas 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 (815) 433-5105 Advantech B+B SmartWorx - Europe Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Fax +353 91-792445 www.advantech-bb.com support@advantech-bb.com...

  • Page 3: Table Of Contents

    iMcV-LIM CONTENTS About iMcV-LIM ..................4 Configuration ........................ 4 Installing iMcV Modules ....................4 Managed Modules ......................5 iMcV-LIM & Configuration Control ................5 Unmanaged Modules ....................6 FX LinkLoss, TX LinkLoss, Link Fault Pass-Through, Far End Fault, FiberAlert....9 FiberAlert and Far End Fault ..................

  • Page 4: About Imcv-Lim

    iMcV-LIM ABOUT IMCV-LIM The iMcV-LIM is a Fast Ethernet module which provides a single conversion between 100Base-TX `twisted-pair and 100Base-FX/SX single-mode or multi- mode fiber. Each iMcV-LIM includes one RJ-45 connector and one pair of ST or SC fiber optic connectors, and/or an SFP port, which can support any fiber type.

  • Page 5: Managed Modules

    iMcV-LIM MANAGED MODULES To manage one or more iMcV-LIM(s), an SNMP agent must be present in the chassis. To configure Managed Modules, install the module first, and then configure using the management software. Fiber type, serial number and date code are now loaded into the NVRAM during manufacturing.

  • Page 6: Unmanaged Modules

    iMcV-LIM If another type of module is installed into the same slot in a chassis, the iMcV-LIM clears the memory of the previous configuration for that slot; the settings of a new module are adopted and stored in the iMcV-LIM The SNMP Write Lock switch does not impact any iMcV module or iMcV module with Configuration Control.
  • Page 7 iMcV-LIM iMcV-LIM DIP Switch on S1 Feature Default Setting Auto Negotiation (AN) Far End Fault (FEF) FX LinkLoss (FXLL) TX LinkLoss (TXLL) FiberAlert (FA) Factory Default Factory Default Factory Default NOTE: Best Practices: When possible, it is advised to configure DIP Switches to match software settings.
  • Page 8 iMcV-LIM iMcV-LIM with SFP & Configuration Control Default Setting DIP Switch on S1 Feature Auto Negotiation (AN) Far End Fault (FEF) FX LinkLoss (FXLL) TX LinkLoss (TXLL) FiberAlert (FA) Factory Default Enable TX port Enable FX port...

  • Page 9: Fx Linkloss, Tx Linkloss, Link Fault Pass-Through, Far End Fault, Fiberalert

    iMcV-LIM FX LINKLOSS, TX LINKLOSS, LINK FAULT PASS-THROUGH, FAR END FAULT, FIBERALERT iMcV-LIM modules include the troubleshooting features FiberAlert, TXLL, FXLL, FEF and LFPT that help locate silent failures on a network. Before attempting to install the module(s), understand how these features work and react to a specific network configuration.
  • Page 10 iMcV-LIM Link Fault Pass-Through (LFPT) Link Fault Pass-Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote iMcV-LIM modules. LFPT is enabled by turning on both FX and TX LinkLoss on both modules. This feature allows either end of the conversion to detect a link fault occurring at the other end of the media conversion chain.

  • Page 11: Fiberalert And Far End Fault

    iMcV-LIM FIBERALERT AND FAR END FAULT Modules ship from the factory with troubleshooting features disabled. Refer to the Help file to enable/disable this feature. FiberAlert (FA) FiberAlert minimizes the problems associated with the loss of one strand of fiber. If a strand is unavailable, the B+B SmartWorx device at the receiver end notes the loss of link.

  • Page 12: Auto Negotiation On Imcv-Lim

    iMcV-LIM FEF versus FA FEF is preferred when the devices at both ends of the fiber can interpret the FEF signal. This allows FEF to be turned on at both ends, which will engage the FEF regardless of which direction the fault occurs. (Please refer to diagram on previous page) For example if a fault should occur on segment 2 in the direction of segment 1 to 3, FEF would be engaged on the iMcV-LIM between segment 2 and 3.

  • Page 13: Autocross Feature For Twisted-Pair Connection

    iMcV-LIM End-to-End Switch TX/FX Connection Half-Duplex Configure HDX manually Auto Negotiation is OFF Full-Duplex Configure FDX manually Auto Negotiation is OFF Auto Negotiation is ON Auto Negotiation is ON Full-Duplex Configure Auto Negotiation on an iMcV-LIM by adjusting the DIP Switch setting (for unmanaged modules) or via the management software.

  • Page 14: Led Operation

    iMcV-LIM LED OPERATION iMcV-LIM module diagnostic LEDs provide information on features and ports. Glows green when a fiber end fault is detected. TXLL Glows green when TX LinkLoss is enabled on the port. Blinks when a fault occurs on the copper port and actively disables the fiber port.

  • Page 15: Troubleshooting - Installation

    iMcV-LIM TROUBLESHOOTING - INSTALLATION • During installation, first test the fiber and `twisted-pair connections with all troubleshooting features disabled, then enable these features, if desired, just before final installation. This will reduce the features’ interference with testing. • When working with units where the features cannot be disabled, establish both the `twisted-pair and fiber connections before the link LEDs will light.

  • Page 16: Specifications

    iMcV-LIM SPECIFICATIONS Operating Temperature 0 to +50 °C (+32 to +122 °F) Storage Temperature -25 to +70 °C (-13 to +158 °F) Humidity 5 to 95% (non-condensing) DC Input iMcV-LIM w/LFPT: 0.80 A @ 5V...

  • Page 17: B+B Smartworx Technical Support

    USA/Canada: 1 (800) 346-3119 (Ottawa IL USA) Europe: +353 91 792444 (Ireland / Europe) Email: support@advantech-bb.com Web: www.advantech-bb.com STATEMENTS, PRECAUTIONS, GUIDELINES, REGULATORY FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules.

  • Page 18: Electrostatic Discharge (Esd) Precautions

    iMcV-LIM ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component.

  • Page 19: Regulatory, Standards, Compliances

    © 2018 B+B SmartWorx – powered by Advantech. All rights reserved. The information in this document is subject to change without notice. B+B SmartWorx assumes no responsibility for any errors that may appear in this document.
