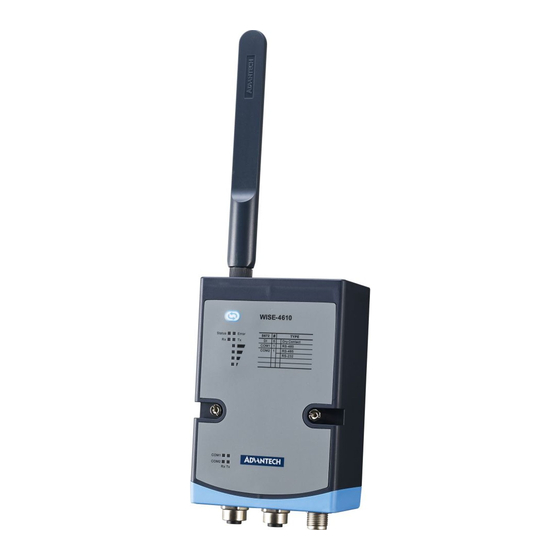

WISE-4610
Advanced Industrial LoRa/LoRaWAN IoT Wireless I/O
Module
Startup Manual
Overview
Thank you for purchasing the WISE-4610 module. This
quick start guide is intended to help you with deploying the
module. It includes information on the power requirements
and application wiring. Should you require more instruc-
tions, please refer to the user manual.
Input Power Requirements
The WISE-4610 has two pairs of external power inputs:
1.
+Vs and -Vs (for line power or battery recharge)
2.
Solar panel+ and solar panel- (for battery recharge)
Both power inputs support a standard industrial unregulated
24 V
power supply. This series of modules also accept
DC
+10 to +50 V
power input and 200-mV peak-to-peak
DC
power ripple. The immediate ripple voltage should be
between +10 and +50 V
DC
Battery Power
For modules with a lithium-ion battery, please note that the
operating temperature is 0~60°C (32~140°F). For safety
reasons, when the temperature is in the range of 45~60°C
(113~140°F), the battery can only be recharged to 20%.
Packaging List
• 1 x WISE-4610 wireless I/O module
• 1 x Waterproof antenna
• 1 x Mounting bracket
Note:
I/O board should be purchased respectively.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
http://support.advantech.com/
This startup manual is for WISE-4610 Series.
Part No. 2003461002
Printed in Taiwan
.
Edition 3
October 2020

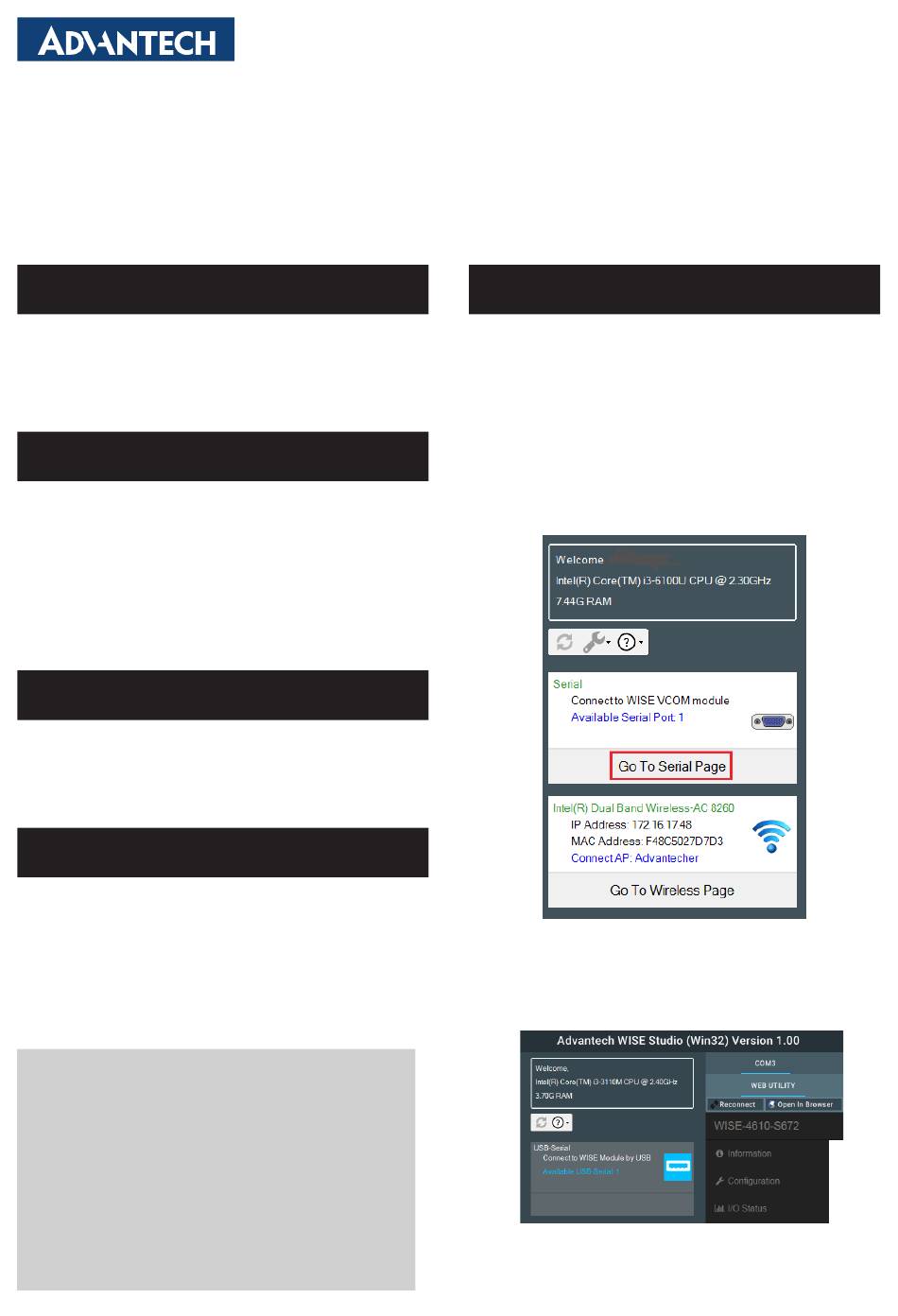

Quick Start for WISE-4610 Series
1. Download and install the USB driver from https://www.
silabs.com/products/development-tools/software/usb-to-
uart-bridge-vcp-drivers
2. Download and install WISE Studio from http://support.
advantech.com/
3. To power the module, connect a DC power source to
the +Vs and -Vs pins.
4. Connect the module to your computer via the micro-
USB port
5. Open WISE Utility and click Go To Serial Page.
6. Press Connect to link the WISE-4610 and you will then
see the web configuration page.
7. Use web configuration in WISE Utility or press Open in
Browser to open the web configuration in any browser
(Google Chrome is recommended).
8. Click Information to check whether your module has
successfully connected to a LoRa network. Once con-
nected, your I/O module is ready to be configured.
WISE-4610 Startup Manual 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WISE-4610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech WISE-4610

  • Page 1 (113~140°F), the battery can only be recharged to 20%. Packaging List • 1 x WISE-4610 wireless I/O module • 1 x Waterproof antenna • 1 x Mounting bracket 6. Press Connect to link the WISE-4610 and you will then see the web configuration page. 7. Use web configuration in WISE Utility or press Open in Note: Browser to open the web configuration in any browser I/O board should be purchased respectively.
  • Page 2: Application Wiring

    RS-232 RX AI 1- DO 0 Gray DATA1- AI 2+ RTD3+ DO GND Pink DATA1+ AI 2- RTD3- RS-485 D+ Blue AI 3+ RTD3 COM RS-485 D- RS-232 GND AI 3- RS-485 GND Brown White Blue Black 2 WISE-4610 Startup Manual...
  • Page 3 Blue RTD 2+ White RTD 2- Brown COM 2 Green Yellow RTD 3+ Gray RTD 3- Pink COM 3 Blue Brown White Solar Panel V+ Solar Panel V+ Blue Solar Panel V- Solar Panel V- Black WISE-4610 Startup Manual 3...
  • Page 4 Application Wiring (Cont.) WISE-S617 (2AI/2DI/1DO/1RS-485) WISE-S672 (6DI/1RS-485/1RS-485 or 1RS-232) 4 WISE-4610 Startup Manual...
  • Page 5 Application Wiring (Cont.) Application Wiring of WISE-S600T Series I/O Module with Terminal Block WISE-S614T (4AI/4DI) WISE-S617T (2AI/2DI/1DO/1RS-485) WISE-4610 Startup Manual 5...
  • Page 6: Module Configuration

    For the solar power, it is not only to recharge the battery but also to power up the device. Please refer to the application wiring section for solar panel power and line power pin assignment. Also, there is a USB port for the device configuration via WISE Studio but please note that the WISE device cannot be pow- ered via USB. 6 WISE-4610 Startup Manual...
  • Page 7: Led Indicators

    • 1 ON – 20% < V < 40% Signal Strength*4 Green (after pressing membrane button) • 2 ON – 40% <= V < 60% • 3 ON – 60% <= V < 80% • 4 ON – V >= 80% WISE-4610 Startup Manual 7...
