Advantech PCM-3680 Startup Manual

PCM-3680
2-Port CAN-bus PC/104 Module with Isolation Protection

Packing List

Before installation, please make sure that you have:
• PCM-3680
• ICOM Series Driver CD with Advantech WDM
CAN Driver
• Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.

Declaration of Conformity

FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the
user is required to correct interference at his expense
CE
This product has passed the CE test for environmental spec-
ifications
when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of
cable is available from Advantech. Please contact your local
supplier for ordering information.
Overview
PCM-3680 is a special purpose communication card
that brings the Control Area Network to your PC.
With the built-in CAN controller, the PCM-3680
provides bus arbitration and error detection with
automatic transmission repeat function. The onboard
CAN controllers are located at different positions
in the memory. You can run both CAN controllers
at the same time, independently. The PCM-3680
operates at baud rates up to 1 Mbps and can be
installed directly into the expansion slot of your PC.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCM-3680.
Part No. 2000368040
1 PCM-3680 Startup Manual

Features

• Operates 2 CAN networks simultaneously
• High speed transmission (up to 1Mbps)
• 16 MHz CAN controller frequency
• 4 KB address space, 40 base address adjustable in
steps from C800H up to EF00H
• Optical isolation protection of 2500 V
• Wide IRQ selection for each port includes:
IRQ 3, 4, 5, 6,7, 9, 10, 11, 12, 15
• LED indicates transmit/receive status on each port
• Direct memory mapping enables speedy access
• Supports 32/64-bit WinXP/Vista/Win7, WinCE
5.0/6.0 and Linux

Specifications

• Ports:
• CAN Controller:
• CAN Transceiver: 82C250
• Signal Support:
• Memory Address: From C800H to EF00H
• IRQ:
• Isolation Voltage: 2500 V
• Power Consumption: +5 V @ 400 mA typical,
• Connectors: Dual DB-9 male connectors
• Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)
• PC/104 Form Factor: 3.6" x 3.8" (90 x 96 mm)
• Shipping Weight: 0.485 lb (0.22 kg)

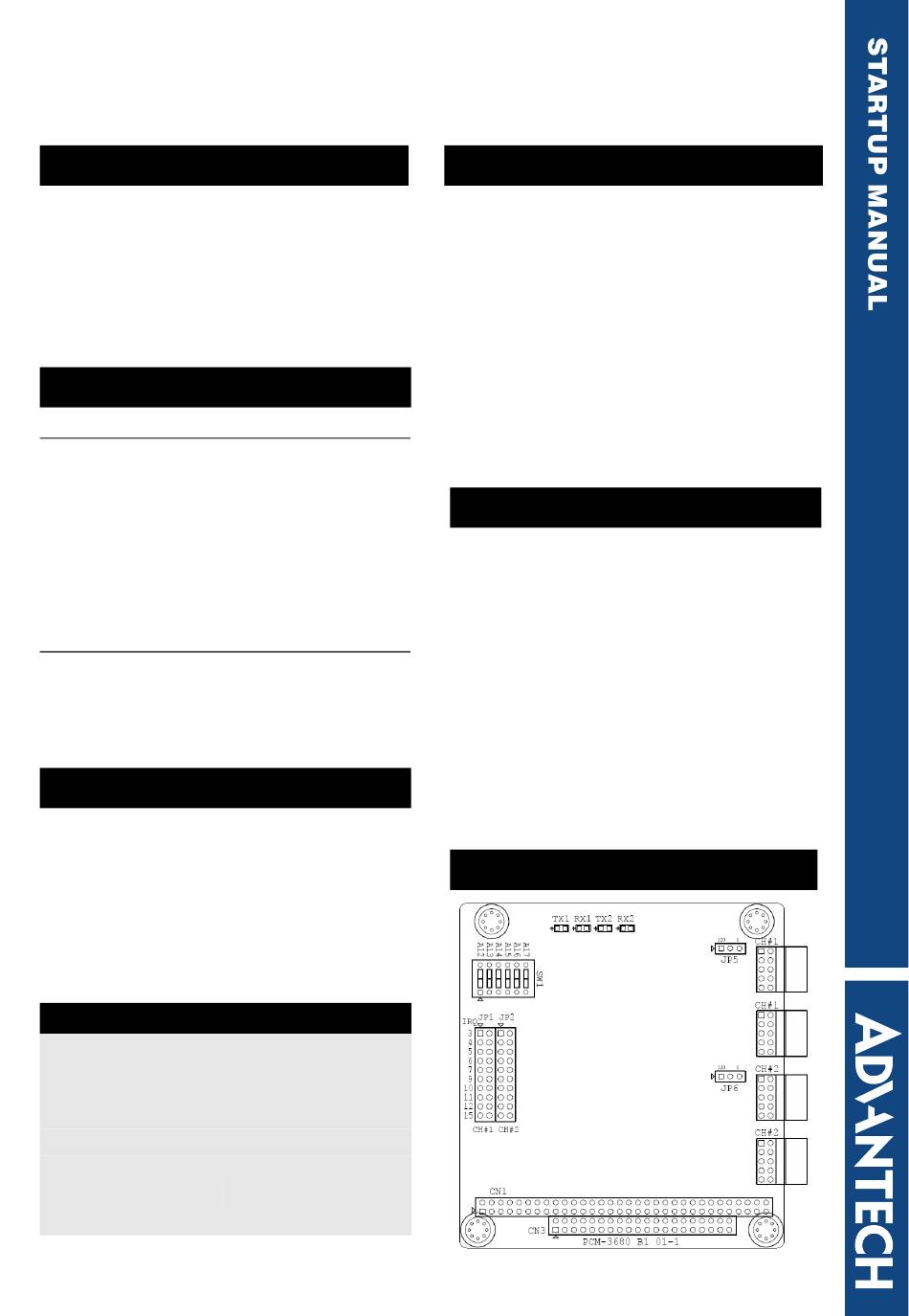

Jumper & Switch Locations
1st Edition
June 2011
All product specifications are subject to change without notice.
DC
2
SJA-1000
CAN-L, CAN-H
3, 4, 5, 6, 7, 9, 10, 11,12, 15
DC
950 mA max.
