58 Appendix B: Technical information
To build your own cable, you can purchase the following parts:
M a n u f a c t u r e r :
C o n n e c t o r :
B a c k s h e l l :
These parts can be purchased from third parties such as Digi-Key Corporation
(www.digikey.com).

PCIe auxiliary power connector

The PCIe auxiliary power connector on Matrox Radient eV-CXP is a standard
6-pin, 12 V connector. When this connector is connected to the 12 V power
supply of your computer, Matrox Radient eV-CXP can provide
power-over-CoaXPress to the devices connected to the CoaXPress input
connectors, at up to 13 W per link.

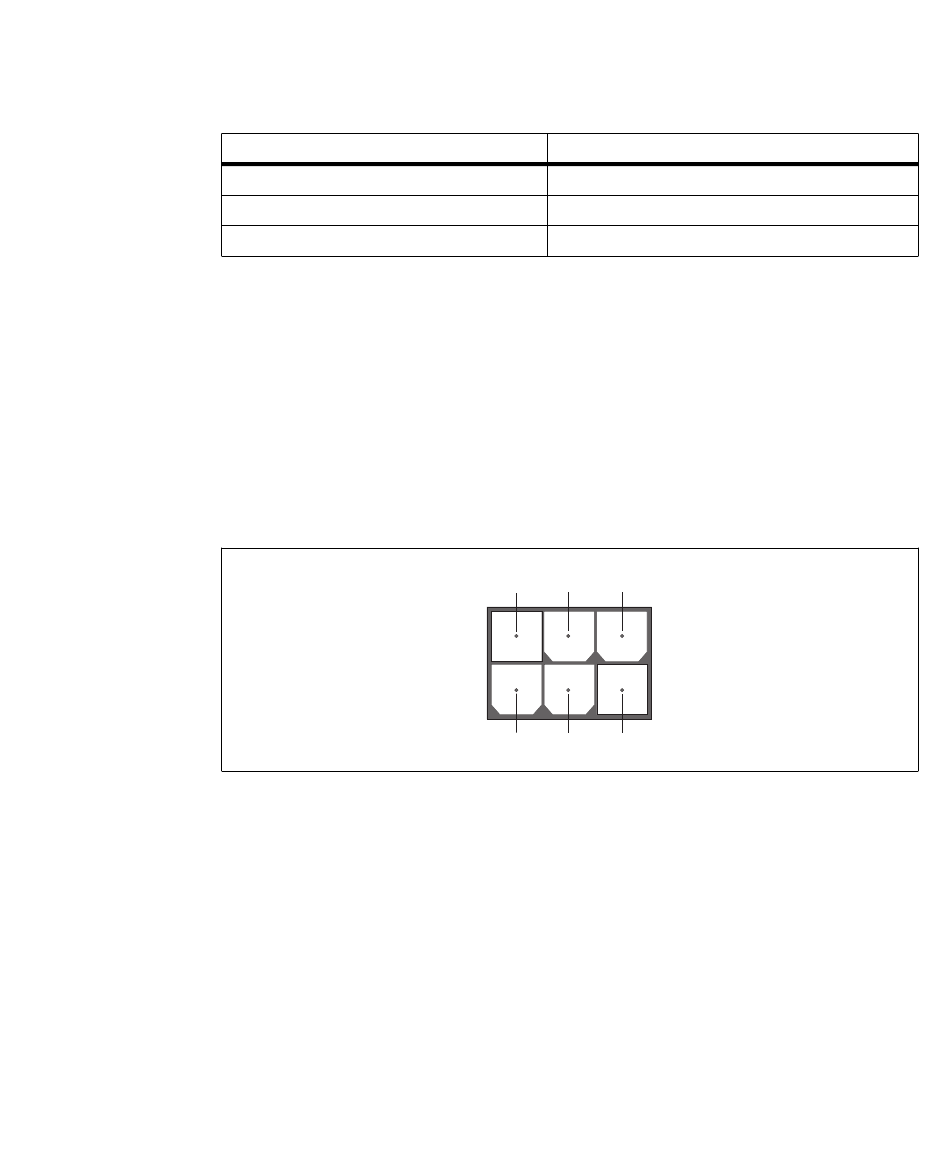

M a t i n g i n f o r m a t i o n
N o r C o m p , I n c .
1 8 0 - 0 1 5 - 2 0 3 L 0 0 1
9 7 0 - 0 1 5 - 0 1 0 - 0 1 1
1 2 3
4 5 6
