54 Appendix B: Technical information
External auxiliary I/O
connector 0

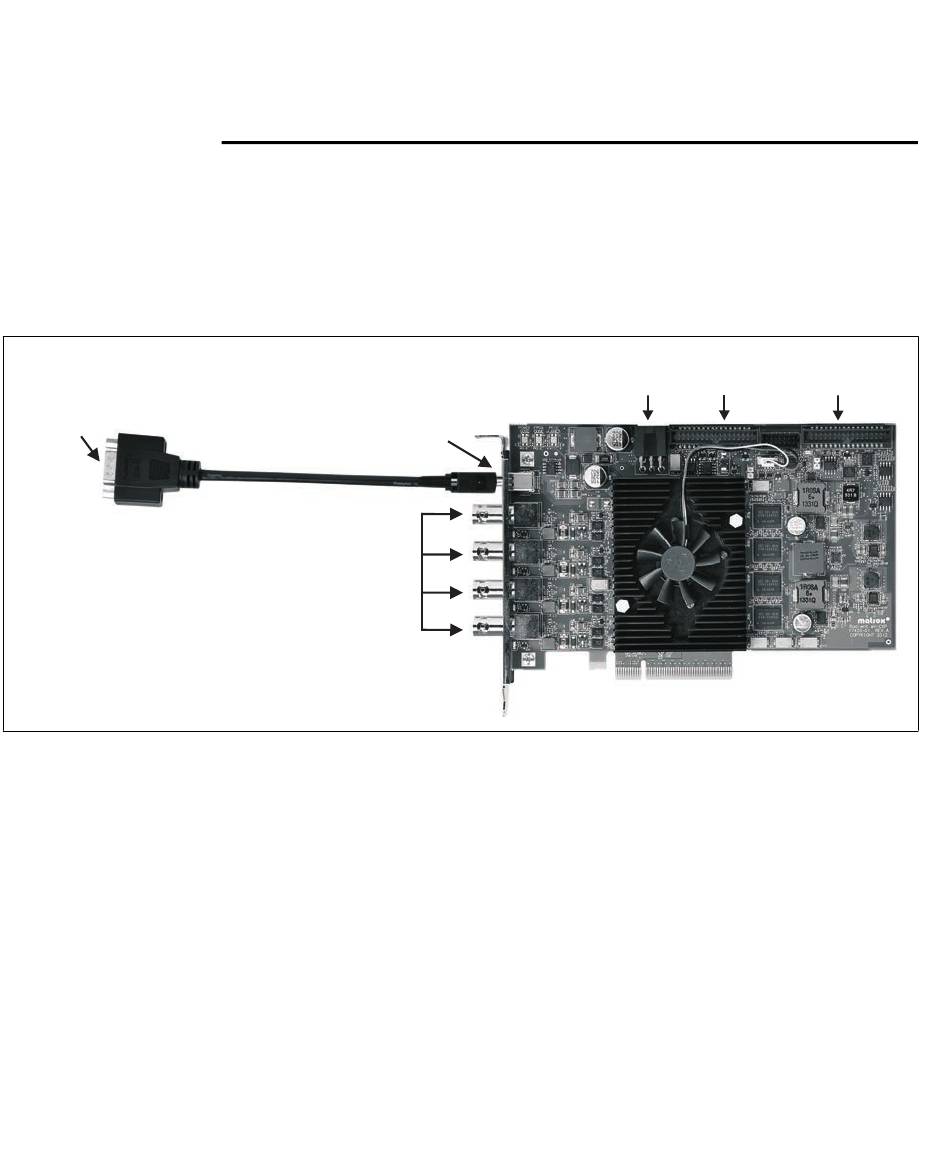

Connectors on the Matrox Radient eV-CXP
board
On the Matrox Radient eV-CXP board, there are several interface connectors. On
the bracket of the main board, there are four CoaXPress video input connectors
and one Mini DisplayPort (MiniDP) connector. In addition, close to the top edge
of the main board, there are two internal auxiliary I/O connectors and a 12 V
PCIe auxiliary power connector.
connector
MiniDP-to-DBHD-15
adapter cable
CoaXPress
video input
connectors
The MiniDP-to-DBHD-15 adapter cable connects to the the MiniDP connector
on the main bracket. The DBHD-15 connector at the end of this cable is called
external auxiliary I/O connector 0.
MiniDP
12 V PCIe Internal
auxiliary power auxiliary I/O
connector
connector 1
Internal
auxiliary I/O
connector 2
