56 Appendix B: Technical information
When using more than one CoaXPress cable to connect to the same video source,
you must choose cables of the same type and length, to ensure that the cables have
the same propagation delay.
Video sources can be connected to the CoaXPress video input connectors in any
order. Matrox Radient eV-CXP communicates with the video source(s) to identify
which video source is connected to which link(s).

External auxiliary I/O connectors

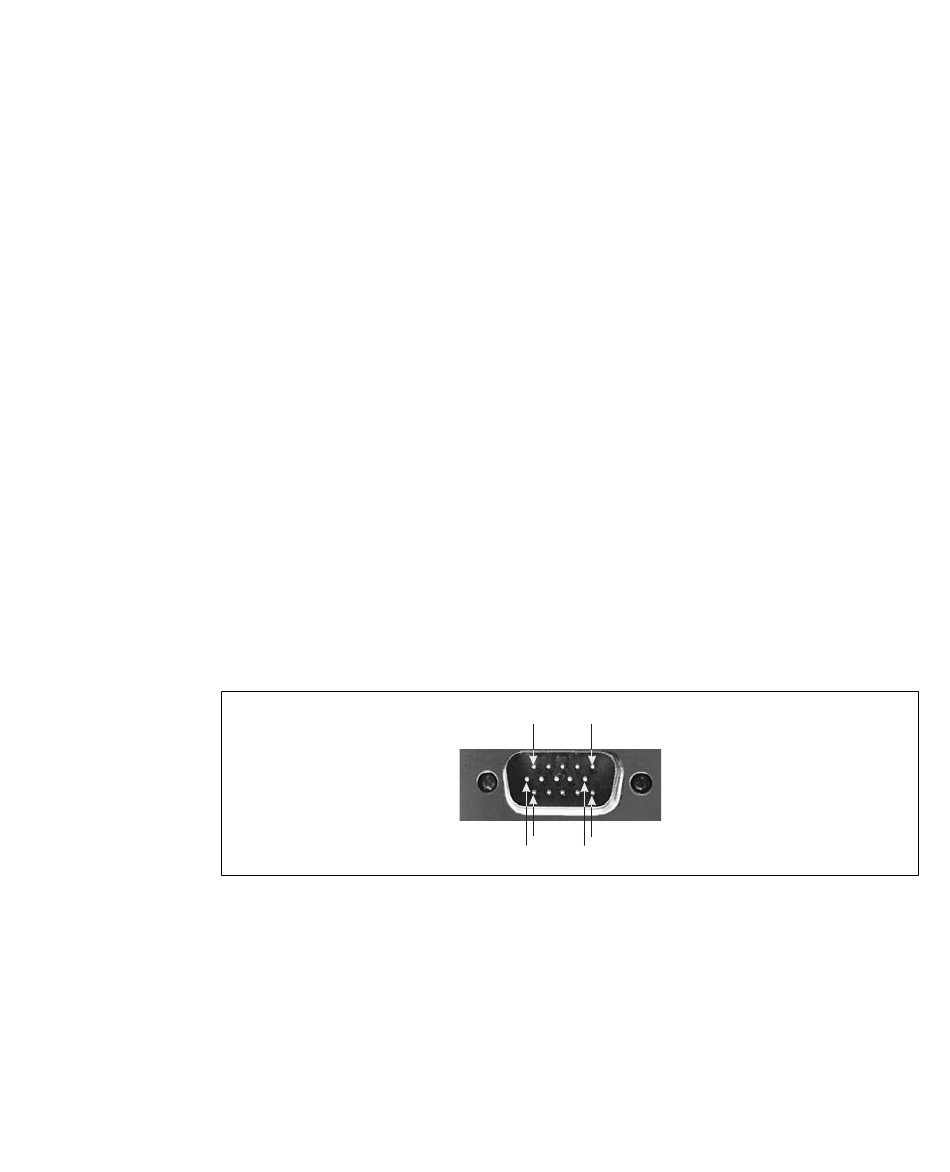

The external auxiliary I/O connectors on the MiniDP-to-DBHD-15 adapter cable
and the cable adapter brackets are DBHD-15 male connectors. The external
auxiliary I/O connectors are used to transmit and receive auxiliary signals.
❖ The auxiliary I/O connectors on Matrox Radient eV-CXP are not compatible with
display devices. Connecting one of the DBHD-15 connectors to a VGA monitor
or any other display device might damage both the device and the Matrox
Radient eV-CXP board.
The auxiliary signals are path independent; regardless of the acquisition path that
is being used to grab images, any of the auxiliary signals can be used. For more
information, see the Auxiliary signals section in Chapter 4: Matrox Radient eV-CXP
hardware reference chapter for supported functionality.
1 5
11
15
6 10
