22 Chapter 2: Hardware installation
To access the signals of the internal auxiliary I/O connectors, you can install up
to two cable adapter brackets. They each have two connectors that are named
based on the internal auxiliary I/O connector to which their cable adapter bracket
is attached.
• External auxiliary I/O connectors 1, 2, and 3 (panel mount DBHD-15). Each
used to transmit and receive auxiliary signals.

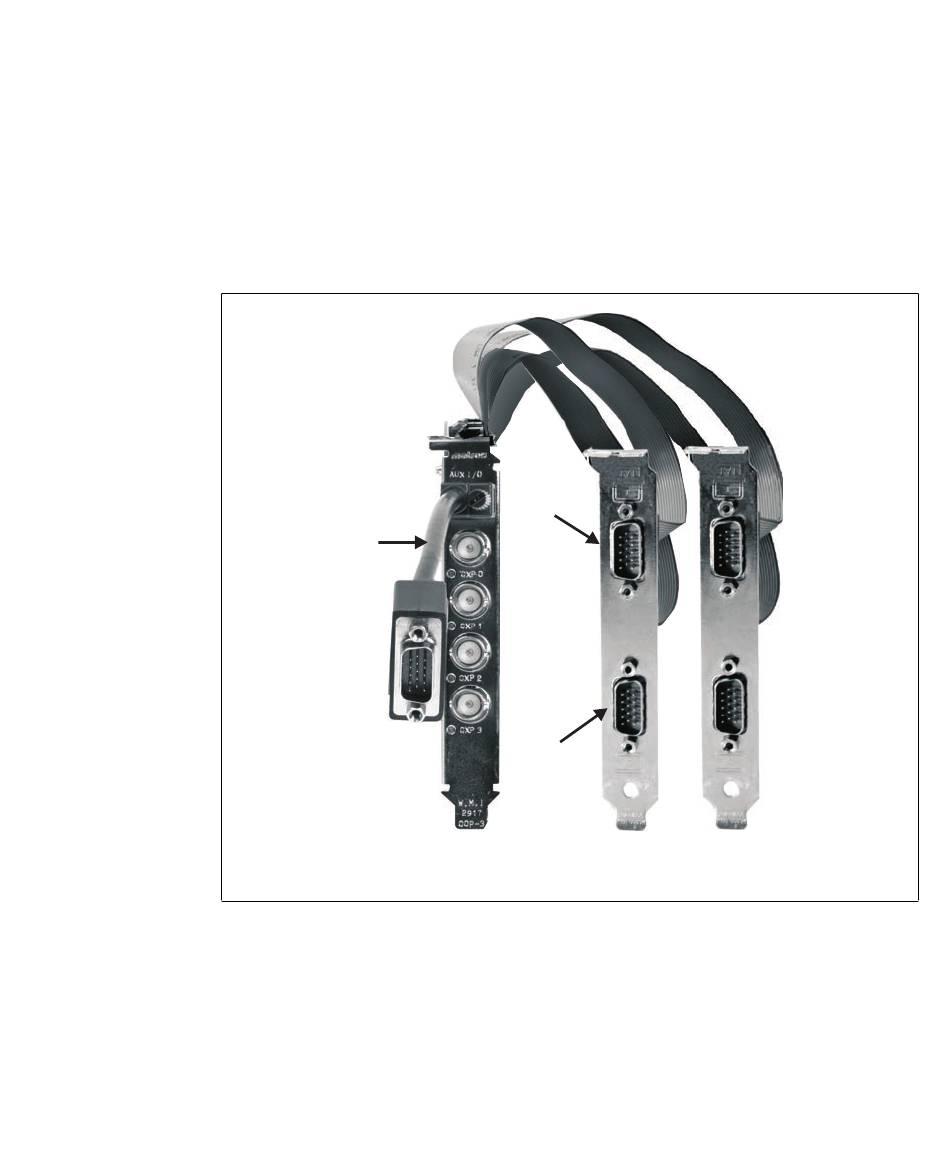

MiniDP-to-DBHD-15
adapter cable
External
auxiliary I/O
connector 0
Note that the primary cable adapter bracket is the bracket that you attach to
internal auxiliary I/O connector 1, and the secondary cable adapter bracket is the
bracket that you attach to internal auxiliary I/O connector 2.
External
auxiliary I/O
connector 1
CXP 0
CXP 1
CXP 2
CXP 3
External
auxiliary I/O
connector 2
Matrox Primary cable
Radient eV-CXP adapter bracket
External
auxiliary I/O
connector 3
Unused
connector
Secondary cable
adapter bracket
