The optional cable adapter brackets provide three additional external auxiliary I/O
connectors. The primary cable adapter bracket (the bracket attached to internal
auxiliary I/O connector 1) has auxiliary I/O connectors 1 and 2. The secondary
cable adapter bracket (the bracket attached to internal auxiliary I/O connector 2)
has auxiliary I/O connector 3 and an unused connector.
MiniDP
connector
CoaXPress video
input connectors
CoaXPress video input connectors
The four CoaXPress (CXP) video input connectors are standard 75 Ω BNC
connectors. They are used to receive video input streams and send and receive
CoaXPress trigger and GPIO signals, as well as control and acknowledgement
messages.
To interface with these connectors, use standard 75 Ω coaxial cables with BNC
connectors. You can purchase high-quality, 75 Ω coaxial cables from your video
source manufacturer, Belden Inc., or other third parties. Note that these cables are
not available from Matrox.

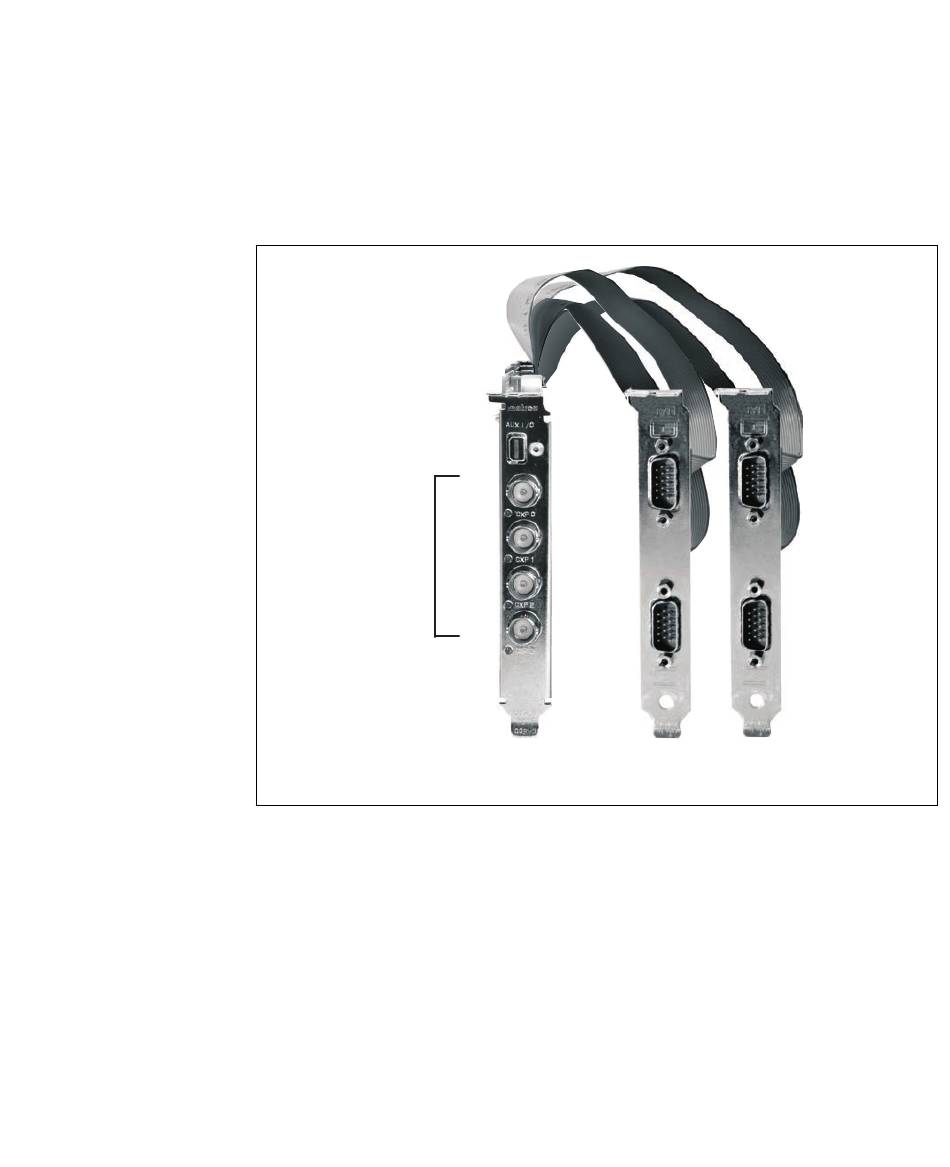

Connectors on the Matrox Radient eV-CXP board
External
auxiliary I/O
connector 1
CXP 0
CXP 1
CXP 2
External
auxiliary I/O
connector 2
CXP 3
Matrox
Primary cable
Radient eV-CXP
adapter bracket
External
auxiliary I/O
connector 3
Unused
connector
Secondary cable
adapter bracket
55
