Strong Razor Series Instruction Manual page 8

13. Adjusting Display Position
13.1 Horizontal Level Adjustments
1. L oosen the two locking nuts (W) at the bottom of the arm assembly end plate using the 8mm socket wrench (T3). (Figure 11)
2. Place a level on top of the display, and rotate the display until it is horizontally level. (Figure 12)
3. Tighten the locking nuts at the bottom of the arm assembly end plate and then loosen them ¼ turn. This will allow for the
display to be positioned with minimal effort.
4. After adjustment is complete, tighten the nuts.

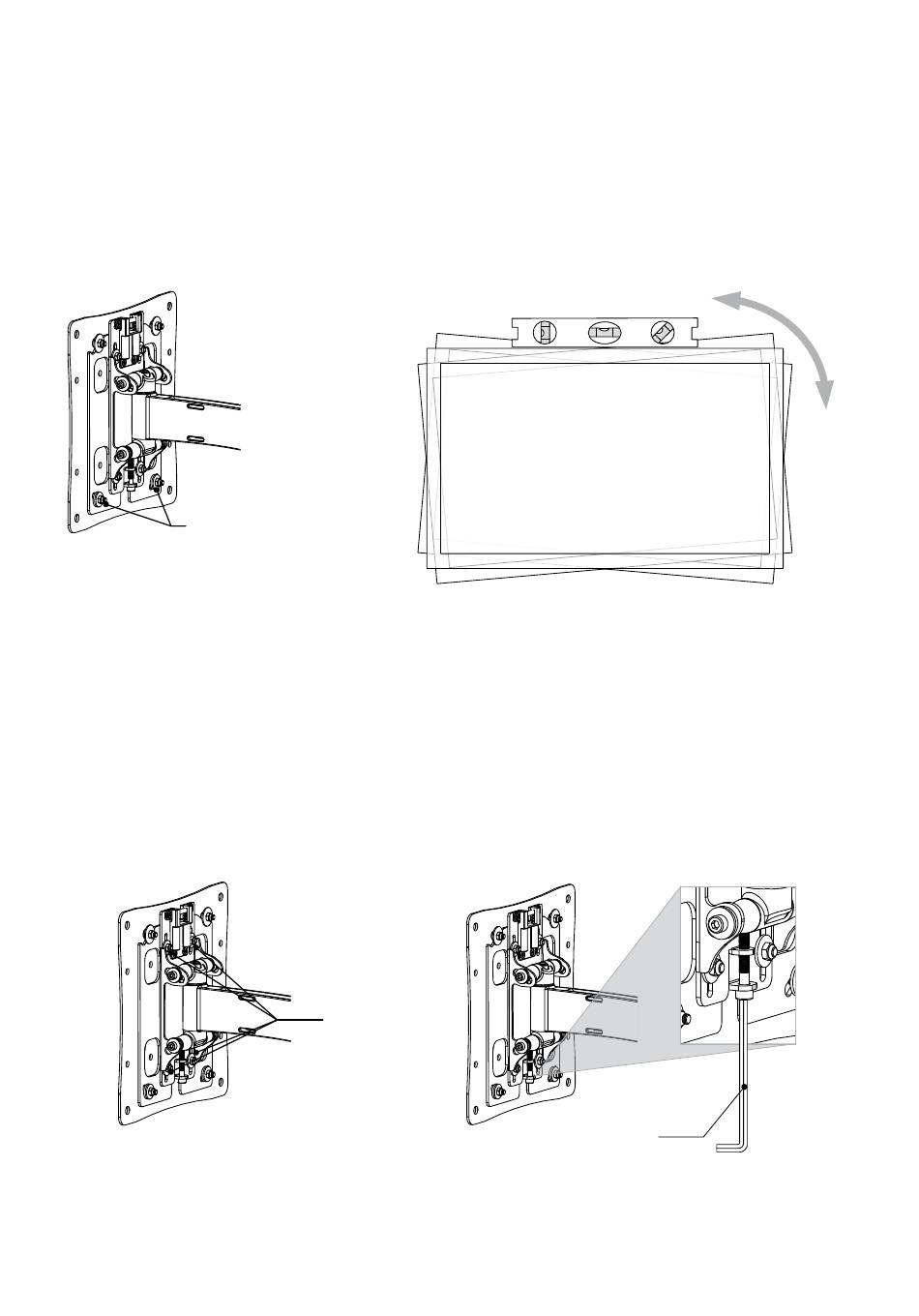

Figure 11.
Horizontal Level
Adjustment Nuts (W)
13.2 Vertical Position Adjustments
The vertical position of the display can be adjusted +/- 3/8" from the pre-adjusted centered position. This is achieved
by tightening (up) or loosening (down) the vertical adjustment screw located on the arm plate.
1. 1. Extend the arm to access the vertical position adjustment.
2. 2. Loosen the four lock-nuts on the rear of the arm plate using the 8mm socket wrench (T3). (Figure 13)
3. 3. U sing the Large 4mm Allen wrench (T2), tighten the adjustment screw to raise the display, or loosen the screw to lower
the display. (Figure 14)
4. 4. Tighten the four lock nuts on the rear of the arm plate using the 8mm socket wrench (T3).
Figure 13.
Pg. 8
Figure 12.
Figure 14.
Lock Nuts
Large 4mm Allen Key (T2)
+/- 4°
