Overview
Thank you for purchasing a great product from Strong™. We appreciate your purchase and
are committed to providing the highest quality products possible. The Strong VersaBox™ Pro
is designed to provide the best UL-Listed in-wall box solution for installers adding equipment
behind low-profile displays and other wall-mounted equipment in an area where coding is
strictly enforced. It can easily be installed in existing ceilings and walls, or in new jobs using
the optional dust cover.
Inside the enclosure, up to two layers of components may be mounted using the built-in
attachment points and the pivoting center mounting plate. Easy-to-remove cutouts allow outlet
boxes and low-voltage rings to be installed in the sides of the box to save space for more
equipment. The center support plate is perforated to aid in wire management and device
mounting and can be set to different depths to allow for more varied installations. The plate can
also be modified as needed so that larger components fit into the box.
Package Contents

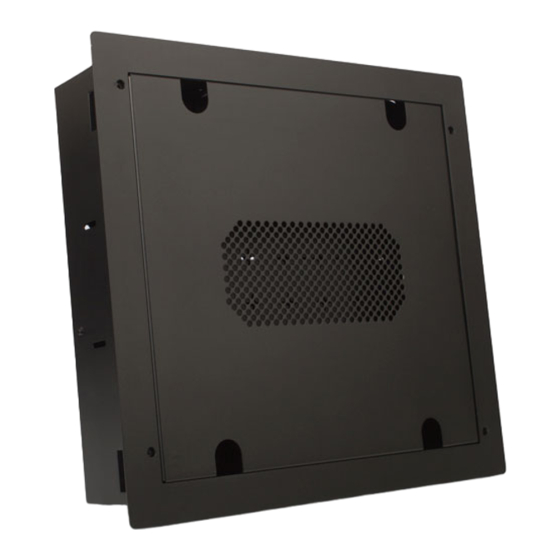

(1) SM-RBX-PRO-14-BLK
(1) Center Support Plate
(1) Cover Plate/Door
(1) Dust Cover
Recommended for Installation
Tools
•
#1 Phillips Screwdriver
•
Drywall Saw
•
Tape Measure
•
Level
•
¼" Flat Head Screwdriver (optional)
•
Electric Drill and ¼" bit (optional)
•
Tin Snips (optional)
Important Instructions and Considerations for Installation
•
Read and follow all instructions.
•
Before beginning installation, carefully plan locations, accounting for potential electrical, ductwork, plumbing or other obstacles
that may interfere with installation of the box, equipment, or wiring.
•
Contact a suitable contractor if you are unsure of how to best install.
CAUTION:
This equipment must be installed and assembled by qualified service personnel in accordance with
local building codes. Total equipment weight stored in this enclosure must not exceed 15 pounds.
www.snapav.com Support: 866.838.5052
(1) RBX Pro Trim Ring/Bezel
(6) Grommets
(1) Hardware Pack
Optional Accessories and Hardware
•
Drywall screws
•
Electrical box and low voltage ring for adding terminations to cutouts
•
Compact Wattbox (sold separately)
Use only standard size cover plates on boxes and rings installed
in the Strong VersaBox
SM-RBX-PRO-14-BLK Installation Manual
Installation Manual
Strong VersaBox™
. Midi and jumbo size plates will not fit.
TM
Pg. 1
