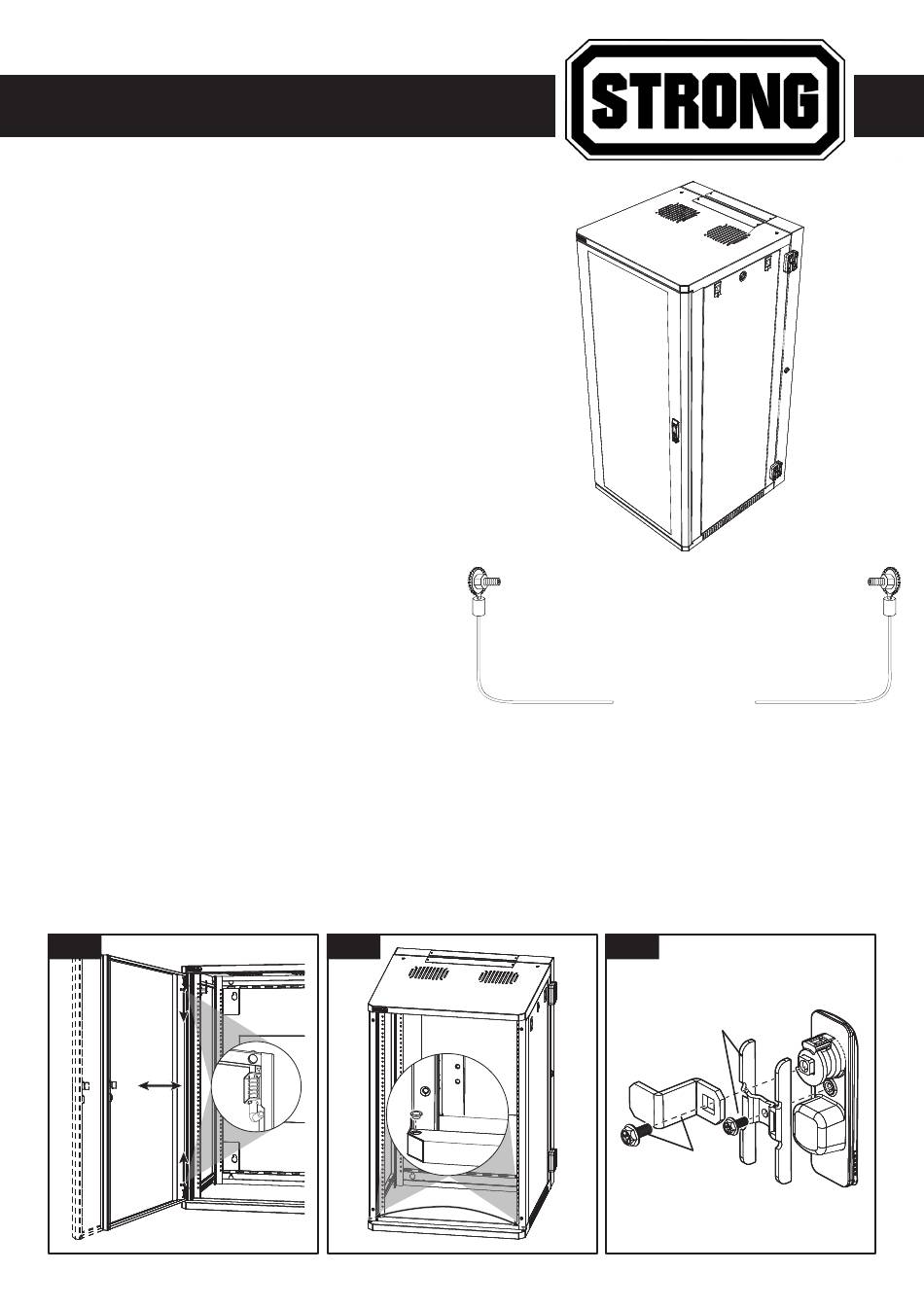

Strong SR-WMS Series Manual

SR-WMS Wall Mount Series

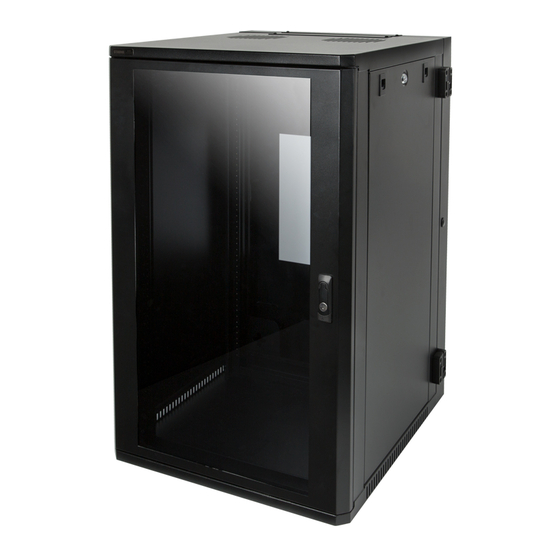

Fully Assembled Rack with Swing & Door
Package Contents
A. Fully Assembled Rack (1)
B. 5/16" Lag Bolts and Washers (4)
C. Mounting Template (1)
D. Keys - Front Door (2) & Swing/Side Panel (2)
E. #10-32 Rack Screws (40)
F. Door Shim Washers (3)
Key Features
• Full kit (rack swing and glass door included)
• Arrives fully assembled
• Universal hinges (number of hinges may vary by rack
height)
• Wire management (knock out on top of rack and swing
allows for ample room to manage cable)
• Front door, side panels, and swing are lockable
• Rails are labeled with U units for ease of arrangement
• EIA 310-D hole pattern
• Easily add fans for additional cooling (not included)
• Reversible door and swing
Reversing Front Door Swing
Tools required: #2 Phillips Screwdriver
1. Open the door and pull the hinge pins free, then slide the door out of the rack. (Fig. 1)
2. Move the grommet in the bottom hinge hole to the opposite side. (Fig. 2)
3. Flip the door and attach it to the opposite side of the rack (latch will be upside down). (Fig. 1)
4. Remove the door latch screw and bracket, rotate the outer handle 180°, then reassemble. (Fig. 3A)
5. Remove the locking latch screw and rotate the latch 180°, then reassemble. (Fig. 3B)
Fig. 1
To ground cabinet, connect the ground wire to the
field wiring ground terminal on the bottom
first. Then connect bonding wires
frame
panels and doors. To ground,
Listed closed loop
AWG wire 1/4" zinc plated steel or stainless steel
internal tooth washer, and an M6 nut. If grounding and
bonding is not completed in installation, then all parts
are considered not effectively grounded or bonded.
Fig. 2
to bonding terminals on main chassis, side
connectors with
Fig. 3
A
B
panel
from grounded
or bond use UL
minimum 12
© 2018 Strong
TM
