Strong Razor Series Instruction Manual page 6

9. Install the Display Adapter Plate
A. C arefully lay the display face-down on a soft surface.
B. L ocate the four mounting holes in the back of the
display housing. Try to thread screws (A through N) in
until the correct thread is found for the holes.
C. L ay the adapter plate over the holes in the display
(directional arrow facing up), and check the clearance
between the TV and the plate. Make sure the mounting
holes match up properly to four of the holes in the
adapter plate. The adapter plate should be centered
on the back of the display. See the available VESA
patterns in Figure 1.
D. I f the plate won't sit flat against the back of the
television, spacers (G and P) and washers (H and Q)
may be placed between the display and the plate as
needed.
E. F asten the plate to the display using a #2 Phillips
screwdriver. Use screws long enough to thread
securely into the display without bottoming out.
Note: The adapter plate (Figure 1) is designed for use with these
VESA patterns: 100x100, 100x200, 200x100, and 200x200. For
a 400x400 VESA pattern, attach the extension adapter (Figure 2)
with the 4 included nuts, bolts, and washers (J, K, L).
Warning: Over-tightening can damage the bolts or the display
and is not covered under warranty. Make sure the fasteners are
tight enough not to rattle loose while the mount is in use.
10. Determine the Correct Mounting Height
A. D ecide the height where the top edge of the display should
be once installed. (Height)
B. M easure and record the distance between the top of the
display and the top of the display adapter plate (Figure 3).
Make sure to measure from the flat area on top of the plate,
not the curved area. (Dimension A)
C. I nsert Dimension A into the formula:
(Height) – 1/4" – (A) = Wall Plate Screw Height
Example:
Desired Display Height =
Dimension A (measured) =
60" – 1/4" – 6 1/2" = 53 1/4" (Wall Plate Screw Height)
D. M ark the Wall Plate Screw height at the center line of the mount location. (Figure 4)
Pg. 6
(Used in Step 3, next page)
60"
6 1/2"

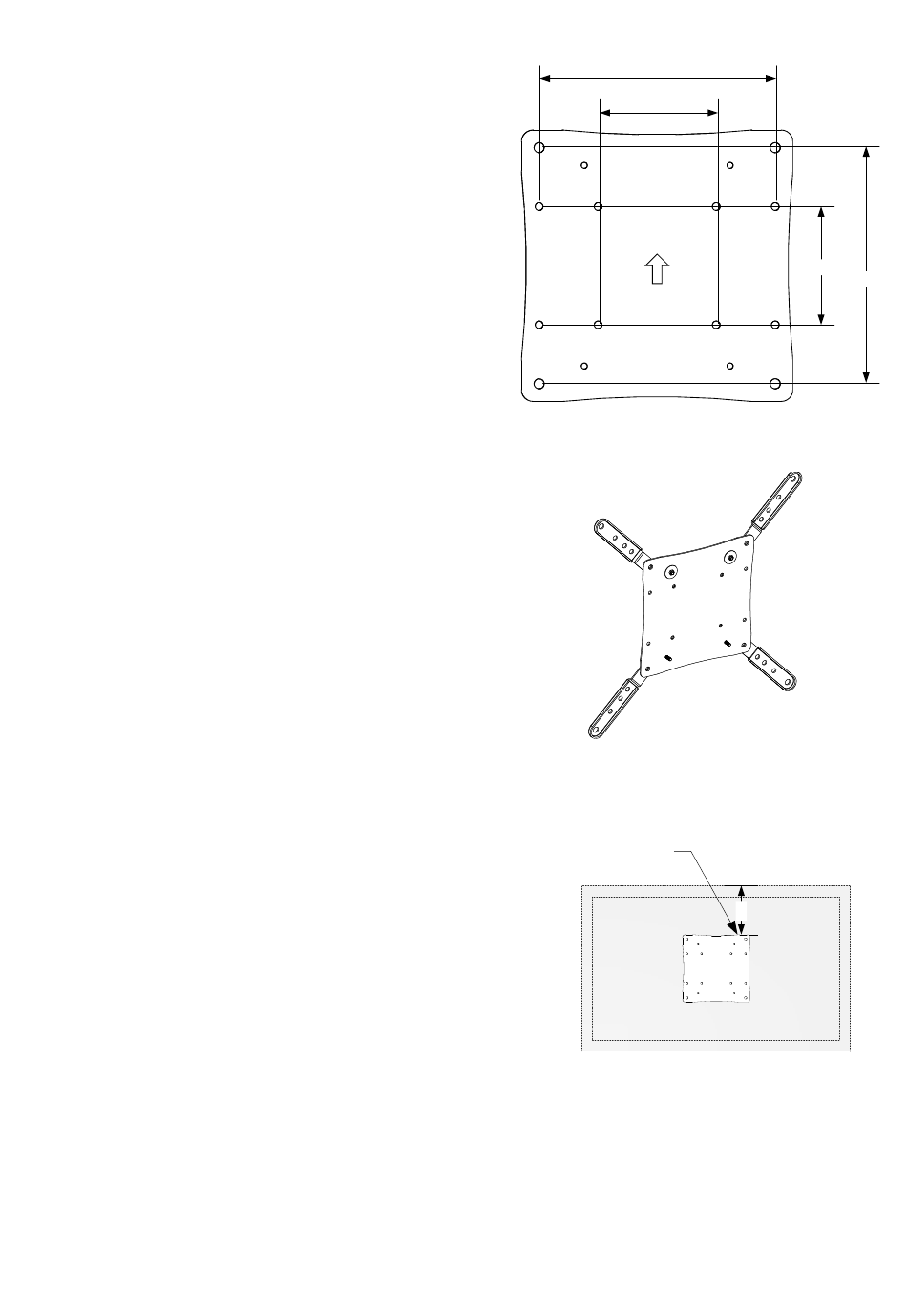

Figure 1.
200
100
Figure 2.
Figure 3.
Measure from
flat edge of plate
to top of TV
100
200
A
