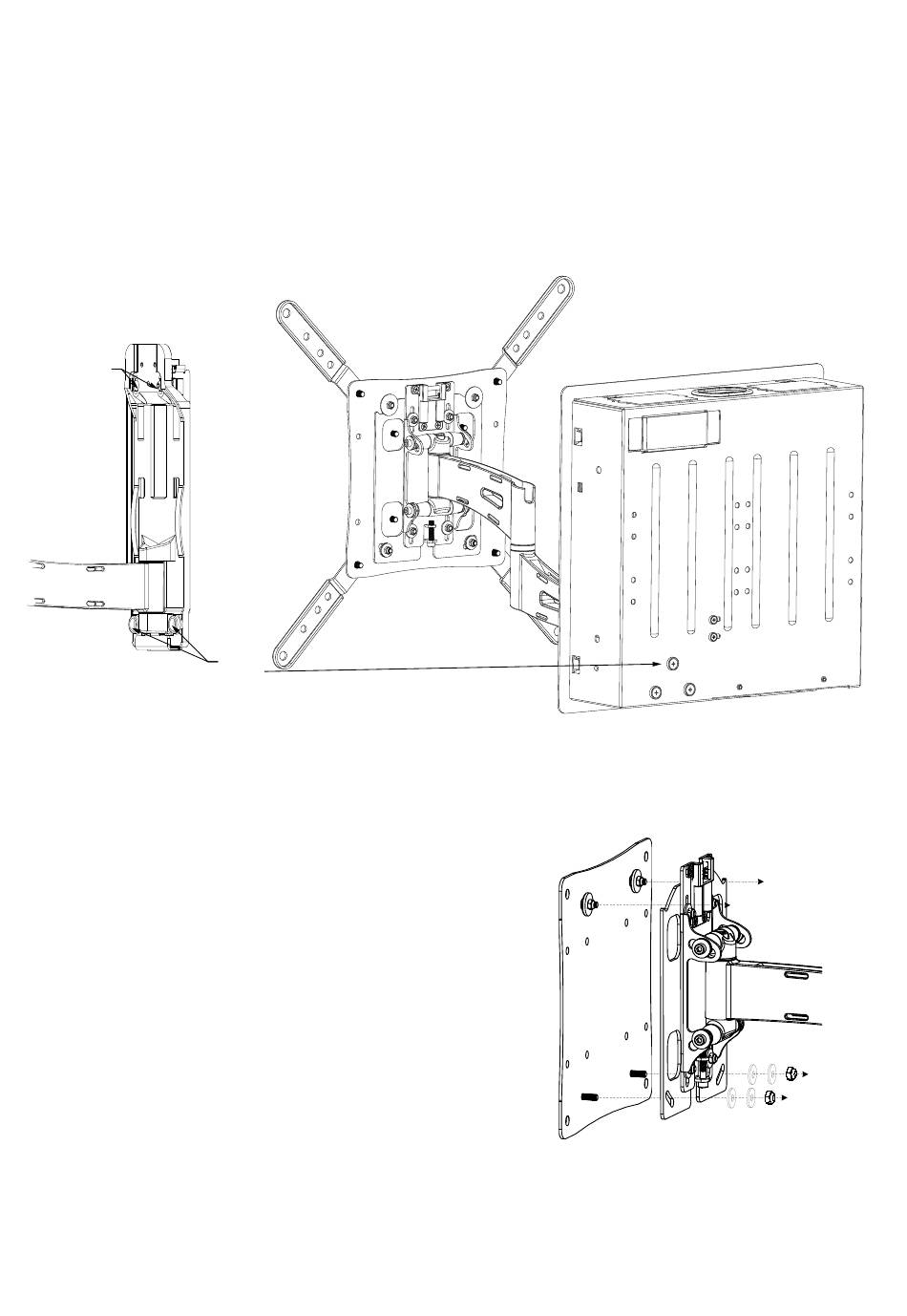

11. Detaching the Arm Assembly from the Enclosure
Note: It is not recommended to remove the Arm Assembly from the enclosure, but you may if so desired by carefully following
the instructions below.
A. Loosen the two upper clamping screws on the arm assemble, and loosen the 2 lower screws.
B. Remove the upper, middle screw from the lower left corner of the rear of the VersaBox panel.
Note: Do not reinstall this screw if you wish to remove the arm after the VersaMount has been installed in the
wall, as you will no longer have access to this screw.
C. Pull the mount arm up and away from the can to detach the mount.
Untighten
Screws
12. Attaching the Display to the Arm Assembly
1. L ift the display and place it on the end of the arm assembly as shown in
Figure 10.
2. S ecure the display using the two Nylon washers (X), two metal washers
(V), and lock nuts (W). Be sure to place the Nylon washer between the
mount and the metal washer. This will allow for easier tilt adjustments
later.
3. Tighten the nuts with the 8mm socket wrench (T3).
www.snapav.com Support: (866) 838-5052
Untighten
Screws
Figure 10.
(X) (V) (W)
