Strong Razor Series Instruction Manual page 5

7. Old Work Installation Instructions
1. M ark the desired height of the top of the SM-VM-ART1-IW-L on the
wall between two stud centers. Use a stud finder to locate the stud
locations.
2. Use the cut-out template to mark the wall, using a level to line it up
correctly.
3. Carefully cut the opening using a drywall saw.
4. A fter the hole is cut, test fit the box, and clean up the opening as
needed.
5. I nsert the box into the opening. Using a #1 Phillips screwdriver, secure
the box to the studs with 2 lag bolts located on both sides of the box.
8. Optional Compact Wattbox
Note: If you are installing the optional WB-200VB, insert it prior to mounting
the TV. If drywall is installed, see section 8.1.
Remove the bottom panel by unscrewing the 4 pre-installed screws. Insert
the compact wattbox, and re-thread the four screws to permanently secure
it. For further installation information, see the WB-200VB manual.
Note: The single-gang knockout located at the bottom right corner of the box
may also be utilized for a single-gang 2-outlet box.
8.1 Removing the Arm-Stop
If drywall is already installed, the arm-stop may have to be temporarily
removed to allow for installation clearance of the WB-200VB. Remove the
two screws attaching the arm-stop to the rear of the enclosure to remove
the arm-stop. Replace the arm-stop after the wattbox has been secured
within the enclosure to keep the mount from damaging installed equipment.
www.snapav.com Support: (866) 838-5052

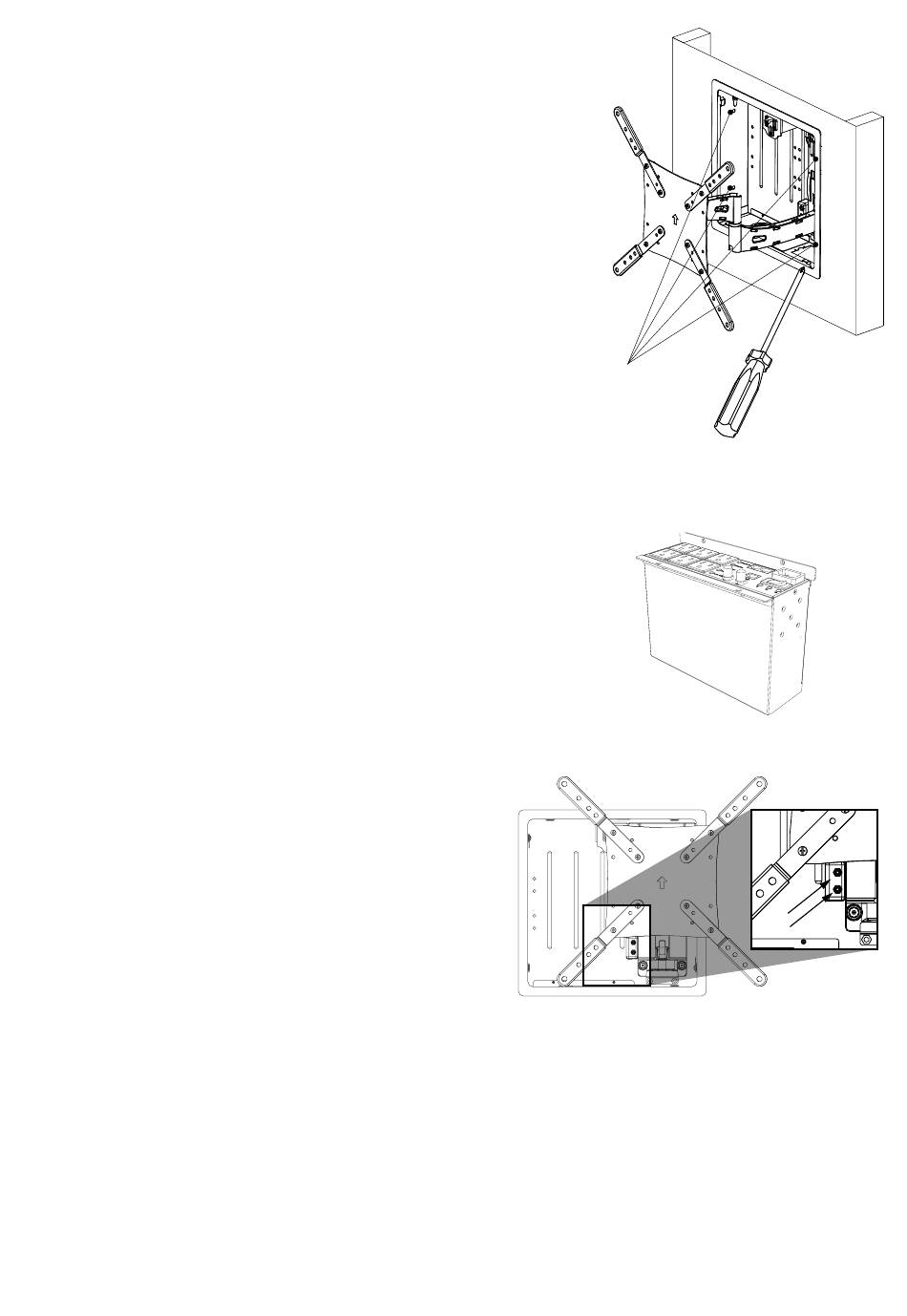

Lag bolts will need to
reach to studs on
either side of the box.
Secure 2 screws in
each side through
the allotted holes.
Pg. 5
