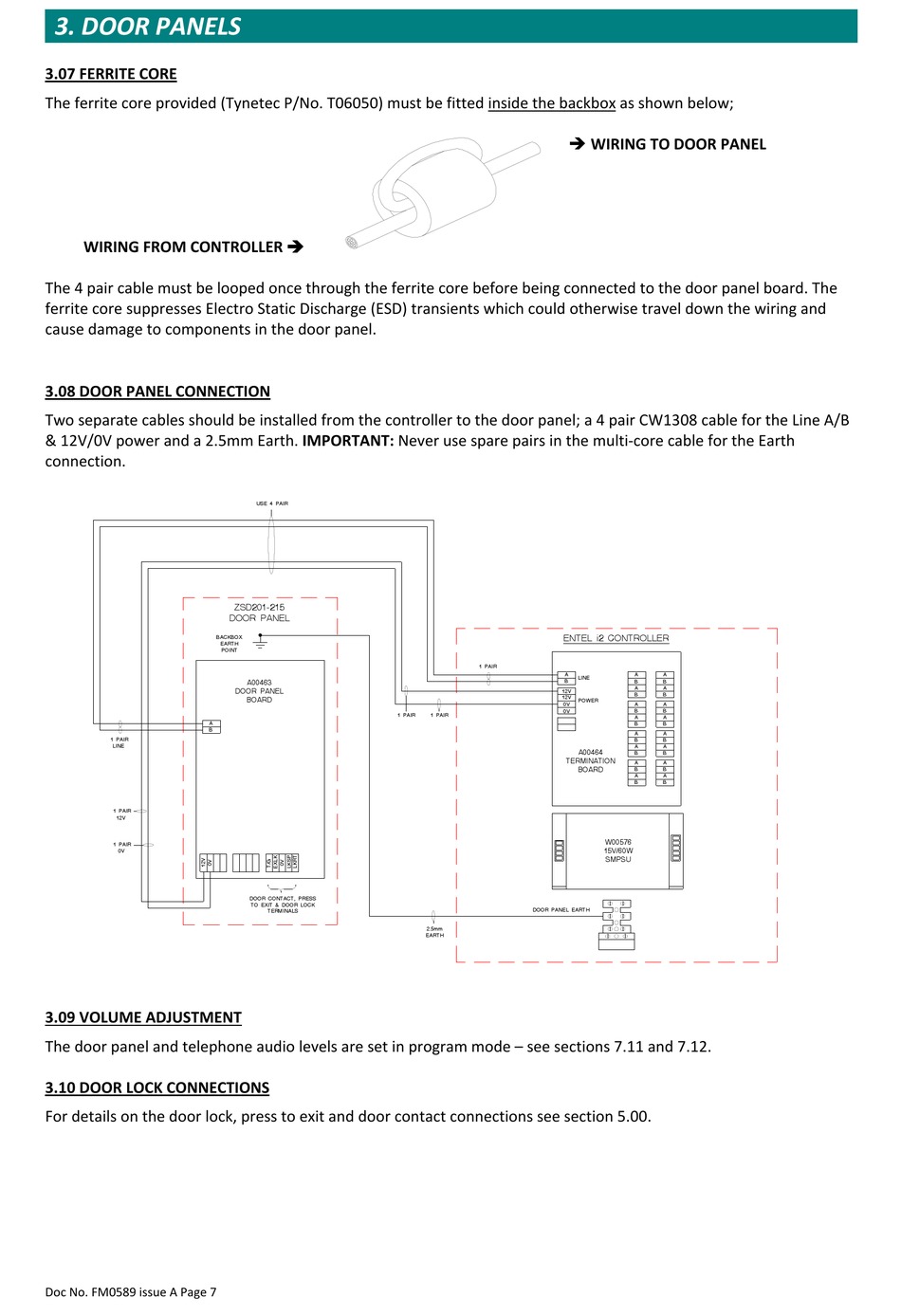

 3. DOOR PANELS

3.07 FERRITE CORE

The ferrite core provided (Tynetec P/No. T06050) must be fitted inside the backbox as shown below;





          WIRING FROM CONTROLLER 

The 4 pair cable must be looped once through the ferrite core before being connected to the door panel board. The
ferrite core suppresses Electro Static Discharge (ESD) transients which could otherwise travel down the wiring and
cause damage to components in the door panel.


3.08 DOOR PANEL CONNECTION

Two separate cables should be installed from the controller to the door panel; a 4 pair CW1308 cable for the Line A/B
& 12V/0V power and a 2.5mm Earth. IMPORTANT: Never use spare pairs in the multi‐core cable for the Earth
connection.












A

B
1 PAIR

LINE



1 PAIR
12V

1 PAIR

0V







3.09 VOLUME ADJUSTMENT

The door panel and telephone audio levels are set in program mode – see sections 7.11 and 7.12.

3.10 DOOR LOCK CONNECTIONS

For details on the door lock, press to exit and door contact connections see section 5.00.





Doc No. FM0589 issue A Page 7
