 1. OVERVIEW

The Entel i2 Functional Door Entry system is designed to comply with most Local Authority's specifications for
buildings with up to 15 flats and 1 entrance door.

Door panels are vandal resistant stainless steel with engraved operating instructions and a flush mounting backbox.
The controller includes a low voltage power supply and a termination board housed in an IP65 lockable enclosure. The
telephone handsets have a single pushbutton for lock release or privacy and a single LED to indicate privacy mode or
door open.







DOOR PANEL


1 PAIR
EXIT
PTE

BUTTON
PRESS FLAT NUMBER REQUIRED
WAIT FOR ANSWER

SPEAK INTO DOOR PANEL
ENTER WHEN LOCK IS RELEASED
1 PAIR

DOOR
CONTACT


1.00mm PAIR
LOCK
RELEASE








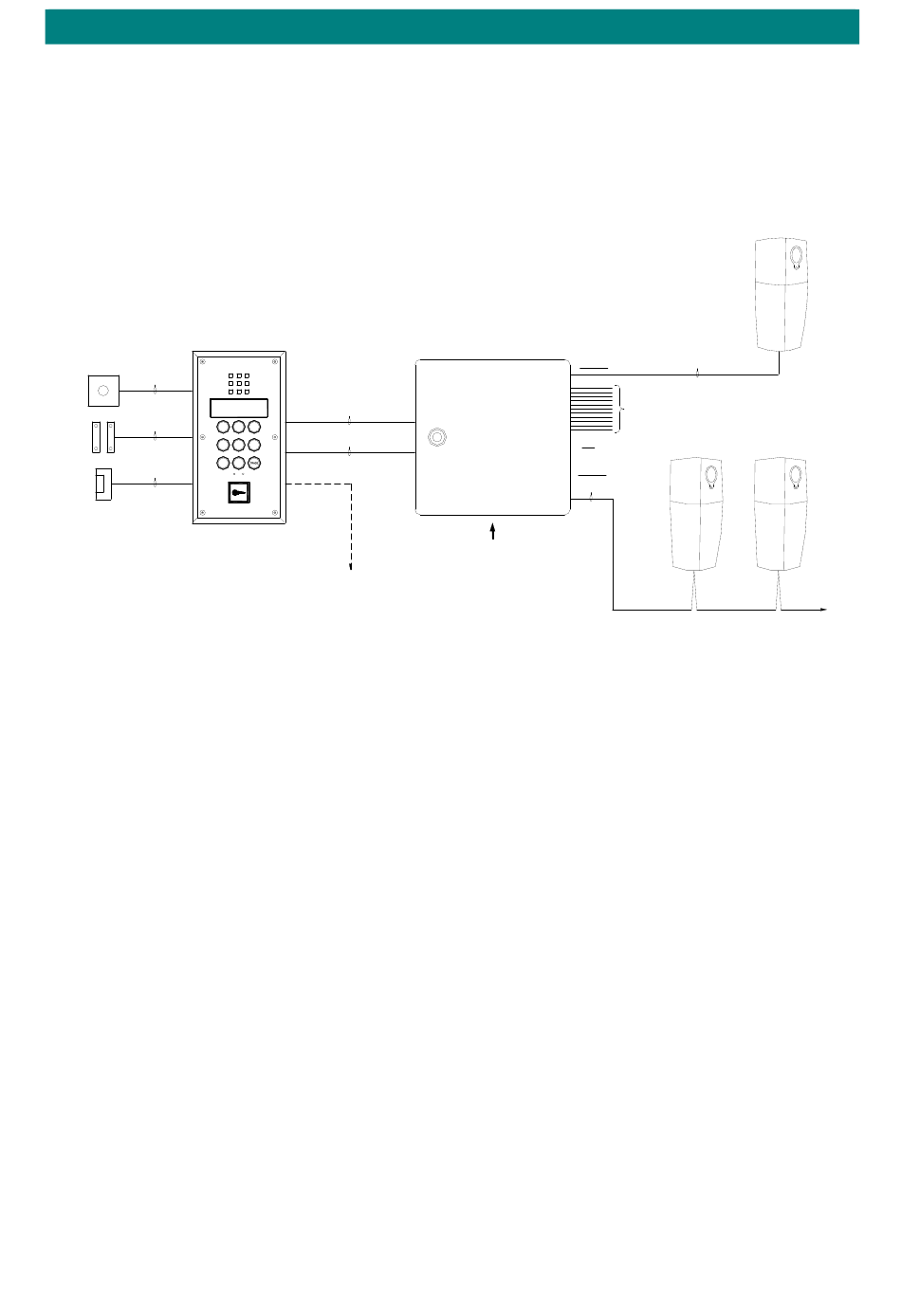

A typical installation requires 2 separate cables between the door panel and the controller;

1 x 4 pair 0.5mm CW1308 BT spec (Line & Power Connection)
  1  x 2.5mm Earth

If a Oneprox reader is fitted in the door panel then an additional 6 core 7/0.2 cable will be required to the PAC
Easikey controller. Note, door panel backboxes and fascias must be bonded to the spare Mains Earth terminal in the
controller using a 2.5 mm

Telephones are connected using a 1 pair CW1308 spec cable, they can be individually wired back to the controller
(star formation) or looped from flat to flat (daisy chain formation). Maximum cable length to a telephone should not
exceed 200 metres.

A 12V DC fail safe or fail secure lock release can be is connected to the door panel. Always ensure a protection diode
or MOV/varistor is fitted directly across the lock terminals to prevent voltage transients causing damage to the door
panel electronics. Maximum lock current = 1A.

A N/C door contact can be connected to the door panel. This will terminate the lock release time after the door has
been opened/closed and illuminate all telephone LED's green if the door is left open.

A N/O press to exit button can be connected to the door panel, this will release the door lock and allow persons to
exit the building.

See Tynetec Drg No. ZE200I for detailed wiring connections.








Doc No. FM0589 issue A Page 3
ENTEL i2
4 PAIR (LINE & POWER)
6
7
8
2.5mm EARTH
3
4
5
1
2
6 CORE
7/0.2mm
TO PAC
CONTROLLER
(OPTIONAL)
2
 cable. Cable length to a door panel should not exceed 150 metres.

ENTEL i2
CONTROLLER
OPTION 1 (STAR)
MAX 15 TELEPHONES INDIVIDUALLY
CONNECTED TO THE CONTROLLER
OR
OPTION 2 (DAISY CHAIN)
1 PAIR
240V AC
MAINS SUPPLY
ENTEL i2
TELEPHONE
1 PAIR TO EACH FLAT
MAX 15 TELEPHONES
CONNECTED IN PARALLEL
