Tynetec ZXT438 Manual

Tynetec ZXT438 Manual

Door exit contact & keyswitch

Advertisement

Quick Links

__________________________________________________________________________________________________________
What is the Door Exit Contact & Keyswitch used for?
The contact can be used to raise a "door exit" alarm when a door is opened.
With the keyswitch in the "NORMAL" position an alarm call will be transmitted immediately.
With the keyswitch in the "OVERRIDE" position the door can be opened without an alarm.
Where should the Keyswitch be fitted?
The keyswitch should be wall mounted internally alongside the door being monitored and should be within 3 metres cable run of
the door contact.
Typical Tools Required
Check for cables and pipes in the wall before using the drill.
Make sure the correct type drill bit and screwdrivers are used.
Fitting the Keyswitch
Undo the 2 screws and remove the lid from the
keyswitch module.
Break out the most appropriate cable entry
point in the back box.
Fix the back box to the wall with the screws & plugs
provided through the 2 fixing holes "A"
Fitting the Door Contact
Connect 2 wires to the door contact (see drawing below).
Fix the part with the wires to the door frame with
the screws provided.
Clip the wire tidily with the self adhesive clamps provided.
Fix the magnet part to the door with the screws provided.
Note: there should be no more than 10mm gap between the
two parts of the door contact when the door is closed.
The contacts must part when the door is opened.

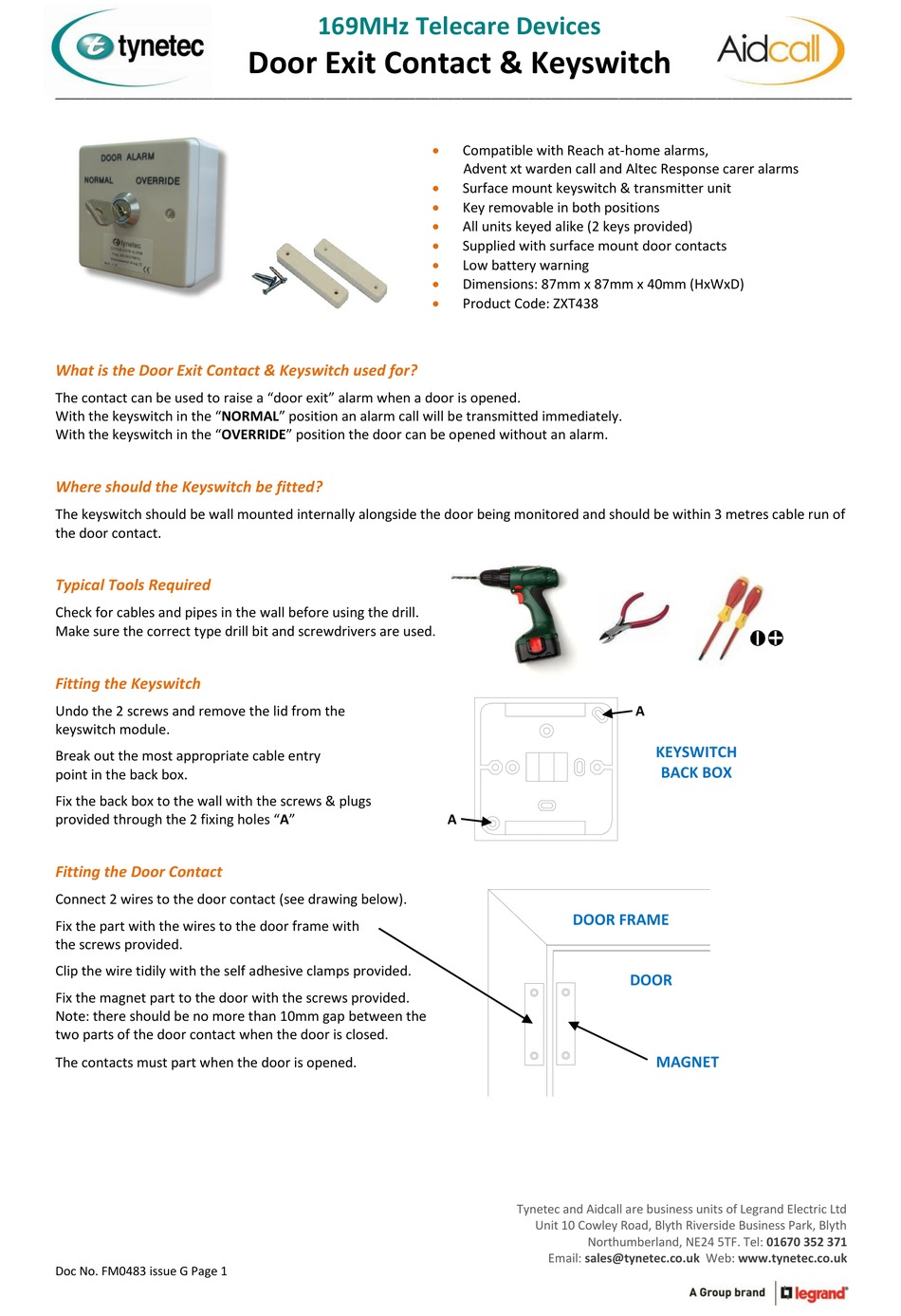

Doc No. FM0483 issue G Page 1
169MHz Telecare Devices

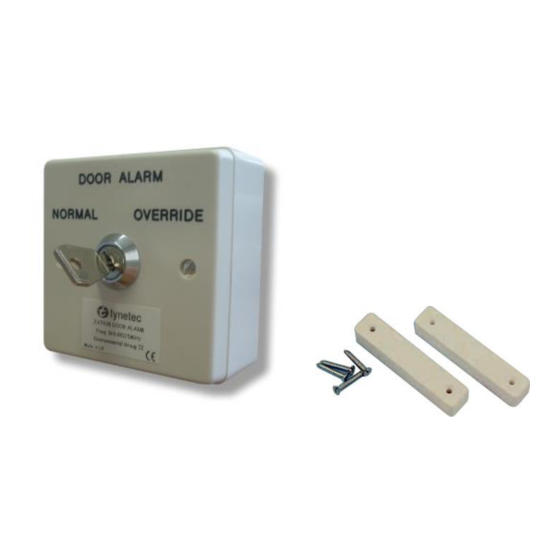

Door Exit Contact & Keyswitch
Compatible with Reach at-home alarms,
Advent xt warden call and Altec Response carer alarms
Surface mount keyswitch & transmitter unit
Key removable in both positions
All units keyed alike (2 keys provided)
Supplied with surface mount door contacts
Low battery warning
Dimensions: 87mm x 87mm x 40mm (HxWxD)
Product Code: ZXT438
A

DOOR FRAME
Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel:
Email:
sales@tynetec.co.uk Web: www.tynetec.co.uk
A
KEYSWITCH
BACK BOX
DOOR

MAGNET
01670 352 371
