6. EASIKEY 250 OPTION
The PAC Easikey 250 system can be interfaced to the Entel i2 to allow residents access to the building without the
need for a mechanical lock and key. The Easikey 250 system consists of one or two readers, a controller and up to 250
proximity tokens which are issued to the residents.
The Oneprox panel mount reader can be fitted inside a standard Entel i2 door panel. Oneprox vandal resistant
stainless steel readers can be surface mounted separately.
The Easikey 250 controller is available in its own metal box complete with power supply or unboxed with an inner
door mounting kit for fitting inside the Entel i2 controller.
A maximum of 250 Oneprox tokens can be used with the Easikey 250 system. Up to 3 of these tokens must be
retained as "Editors" which are needed when adding/deleting tokens in the future.
6.01 EASIKEY 250 WIRING

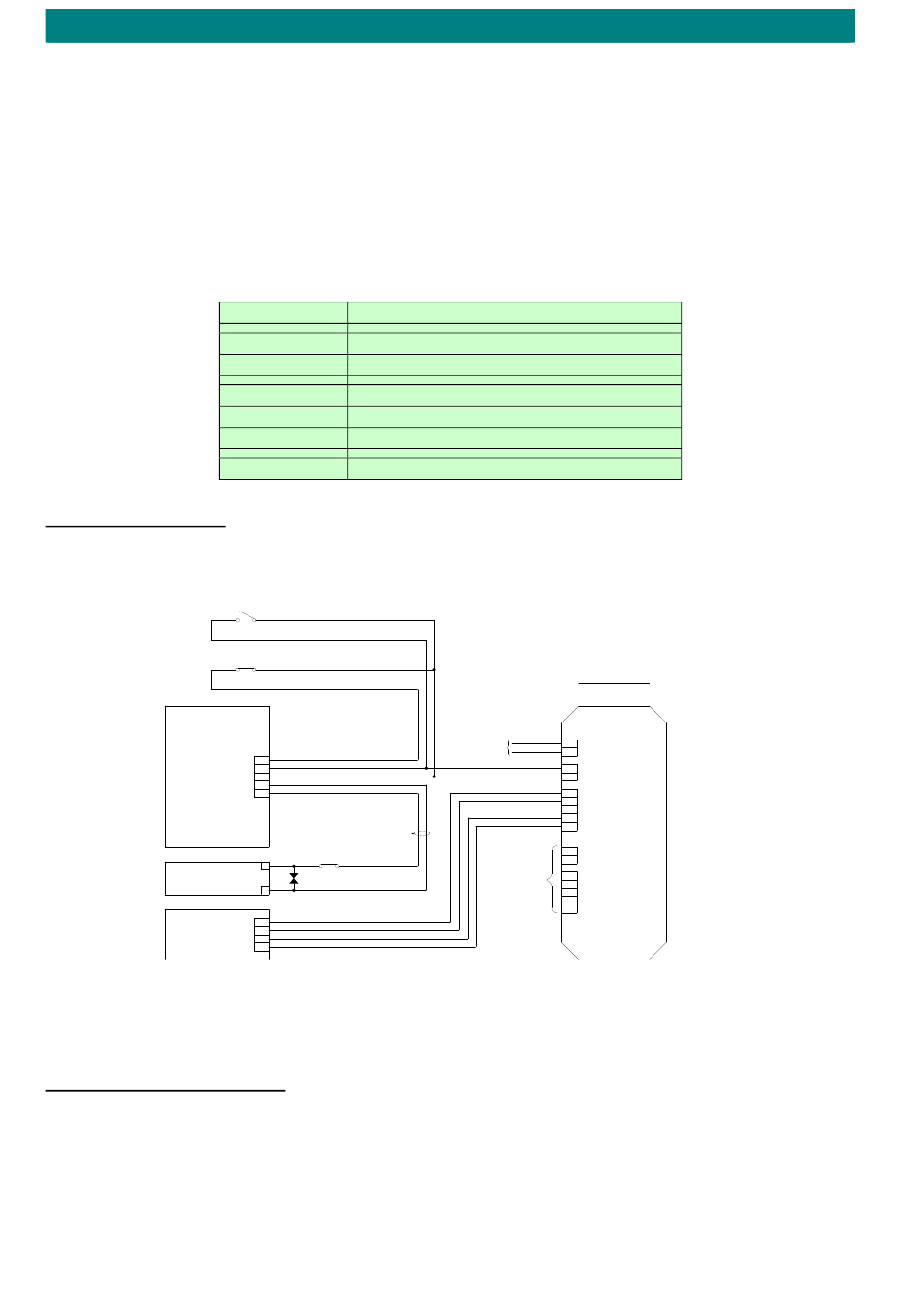

Connection of the Easikey equipment to the Entel i2 door panel is shown below:
PRESS
TO EXIT
ANTI
TAILGATE
ENTEL i2
DOOR
PANEL
SET LOCK TYPE
LINK LK1
A = FAIL SECURE
B = FAIL SAFE
12V DC
DOOR LOCK
PAC
READER
When connected correctly the Easikey controller will trigger the Entel i2 external lock input which will release the lock
for the time period programmed via the door entry.
6.02 EASIKEY 250 PROGRAMMING
The Easikey 250 controller must be programmed for a standard lock type with 2 seconds lock release time.
See instructions supplied with the Easikey controller.
Doc No. FM0589 issue A Page 11
TYNETEC P/No. DESCRIPTION
PA20049 Oneprox panel mount reader
PA20424 Oneprox vandal resistant reader
PA22275 Easikey 250 boxed controller
PA22370 Easikey 250 unboxed controller
PH0020 Easikey inner door mounting kit
PA21087 Oneprox token
N/0
PTE BUTTON
N/C
DOOR CONTACT
T/G
EXLK
0V
LKSP
LKRT
1.0mm PAIR
N/C FIREMANS
SWITCH
-
*
IMPORTANT
+
*
FIT MOV OR REVERSE BIAS
DIODE LOCK SUPRESSION
-V
SIG
VCA
+V
PAC PROGRAMMING
SE LOCK OUTPUT TO FAIL SECURE
SET LOCK TIME TO MINIMUM (2 SECS)
P1
12V DC PSU
P2
WHITE
L1
GREEN
L2
BLACK
-V1
BLUE
S1
R1
YELLOW
PAC
A1
RED
+V1
EASIKEY
CONTROLLER
L3
L4
REPEAT
-V2
FOR
S2
DOOR 2
R2
A2
+V2
