 3. DOOR PANEL

Entel i2 Functional door panels are manufactured with the number of buttons to match the number of flats in the
building (maximum 15). Each button is engraved with the corresponding flat number and a high‐visibility yellow ring.
When a button is pressed a voice message will confirm the flat number being called. If the telephone is turned off a
voice message will announce "Sorry Not Available – Please Try Later".
Timeout pips will sound if a conversation is held to within 10 seconds of the programmed speech time, the call will
then automatically cancel. When the door lock is released from a telephone or the Trade button a voice message will
announce "Door Open – Please Enter".

The optional Trade button is used for Services to gain access during preset time periods each day. If the Trade button
is pressed during a trade period the door lock is released.

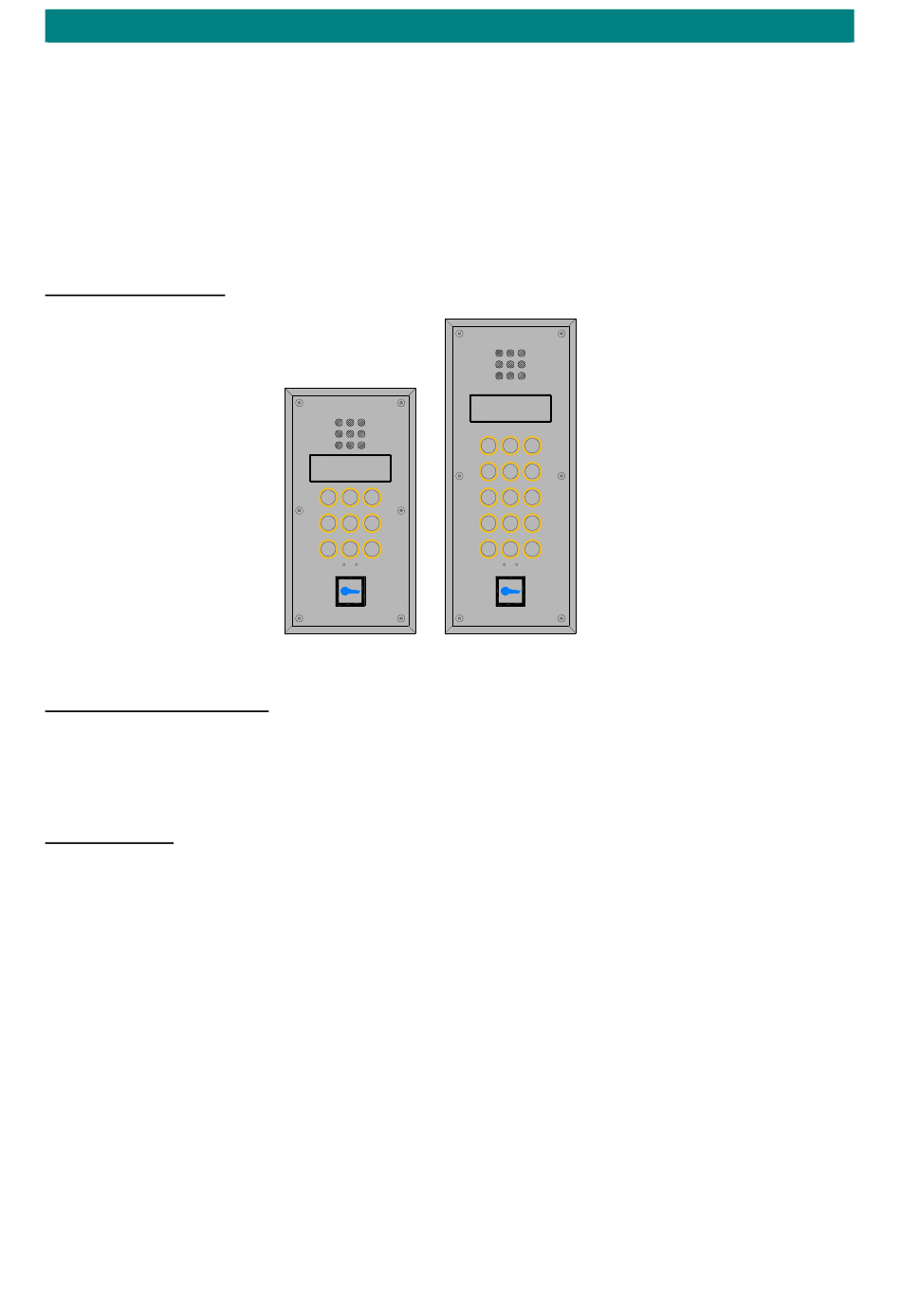

3.01 DOOR PANEL RANGE

3.02 ONEPROX READER OPTION

All door panels have a 40mm square cut‐out and 4 off M3 x 20mm studs for a PAC 20049 Oneprox panel mount
reader (ordered separately). If the reader is not supplied then a Tynetec Logo blanking plate is fitted. Door panels with
a PAC reader fitted will require an additional 6 core 7/0.2mm cable connected to the PAC Easikey controller ‐ see
section 6.

3.03 TRADE TIMES

The door panel has an integral real time clock with it's own battery back‐up. Up to 3 trade periods can be set which
will repeat every day. Automatic British Summer Time (BST) adjustment is made in March and October if enabled in
programming – see section 7.18.

During a trade period the door panel TRADE button can be pressed to gain access, if the door panel does not have
TRADE button then the door lock will automatically release for the full trade period. The Trade option can be disabled
if not required. See sections 7.14 to 7.17 for Trade related programming.












Doc No. FM0589 issue A Page 5
PRESS FLAT NUMBER REQUIRED
WAIT FOR ANSWER
SPEAK INTO DOOR PANEL
ENTER WHEN LOCK IS RELEASED
1
2
3
4
5
6
7
8
9
             1 TO 9 WAY                   10 to 15 WAY

PRESS FLAT NUMBER REQUIRED
WAIT FOR ANSWER
SPEAK INTO DOOR PANEL
ENTER WHEN LOCK IS RELEASED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
