Tynetec Touch 2 Instructions

Tynetec Touch 2 Instructions

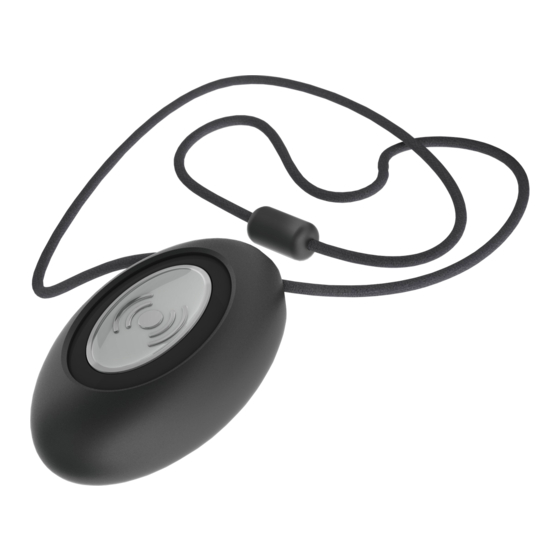

Personal pendant

Advertisement

Quick Links

__________________________________________________________________________________________________________
What is the Touch Pendant used for?
One press of the button on the pendant will initiate an emergency alarm call to a local Carer or an Alarm Receiving Centre (ARC)
from anywhere in or around the home. In residential housing, calls can be made from anywhere on the scheme.
Wearing Options
The Touch 2 pendant is supplied with a kit of parts, so it can be worn around the neck, clipped onto a belt or pocket, or on the
wrist like a watch. It also includes a suction cup to stick the pendant to a tiled wall when in the bath or shower.
Neck Cord:
lie the cord through one of the grooves on the rear of
the Pendant then slide the neck cord attachment into place.
Note: smaller cord end of attachment marked
Wrist Strap:
feed the wrist strap (pattern side up) through the 2 slots
in the wrist strap attachment. Note: locate the attachment pip in the
centre strap hole marked
Push the fixing stud through the hole marked
Belt Clip:
simply clip into place on the rear of the pendant.
Note: the suction cup can be fitted to the belt clip to stick the
pendant to a hard-smooth surface.
Making an Emergency Call
Simply press the
SILVER
button ONCE
The button will
FLASH RED
Take no further action – your call will be answered soon.
Registering a Pendant
It is necessary to register a new Touch 2 pendant onto the warden call system, at-home alarm unit or Nursecall system.
See the following pages for how to put each of these products into registration mode.
The range of all radio devices can be affected by the working environment - always take care during installation
and perform several test calls from all extremes of the building.
Battery Life
The pendant battery is checked once a day, if the voltage falls and stays below a preset level for 7 consecutive days a low
battery alert is automatically transmitted. Once a low battery call is received the pendant should be replaced within 7 days.
Touch pendants must be returned to Tynetec/Aidcall for battery replacement. Detailed information on battery management for
all Tynetec/Aidcall products is available - request Doc No. FM0630.
Declaration of Conformity
We declare this product complies with the relevant UK
legislation on condition that it is used in the manner
intended, and in accordance with the current installation
standards and/or the manufacturer's recommendations.
A copy of the full UKCA Declaration of Conformity is
available on request.

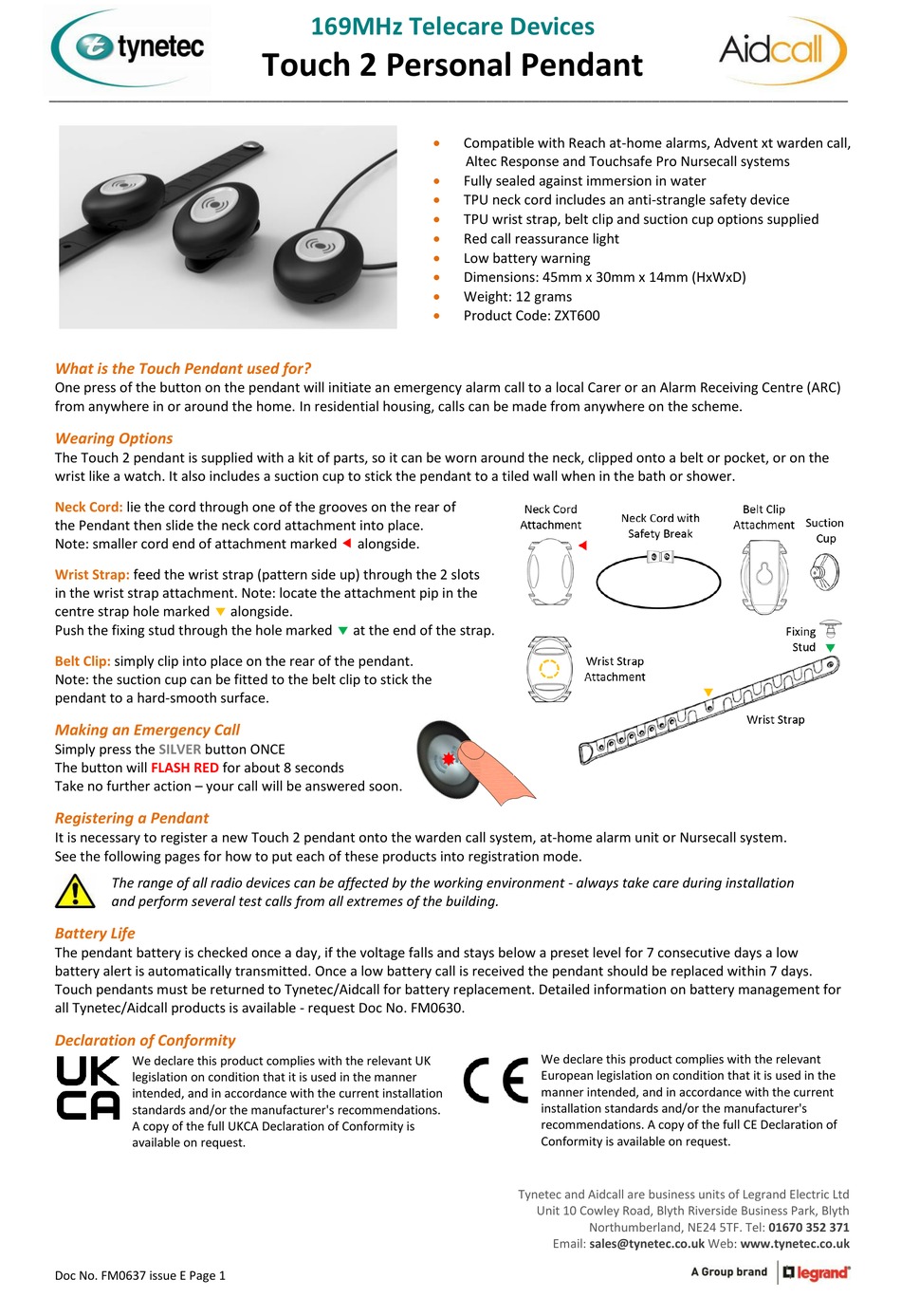

Doc No. FM0637 issue E Page 1
169MHz Telecare Devices
Touch 2 Personal Pendant
alongside.
alongside.
at the end of the strap.
for about 8 seconds
Compatible with Reach at-home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Fully sealed against immersion in water
TPU neck cord includes an anti-strangle safety device
TPU wrist strap, belt clip and suction cup options supplied
Red call reassurance light
Low battery warning
Dimensions: 45mm x 30mm x 14mm (HxWxD)
Weight: 12 grams
Product Code: ZXT600
We declare this product complies with the relevant
European legislation on condition that it is used in the
manner intended, and in accordance with the current
installation standards and/or the manufacturer's
recommendations. A copy of the full CE Declaration of
Conformity is available on request.
Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel:
Email:
sales@tynetec.co.uk Web: www.tynetec.co.uk
01670 352 371

Advertisement

loading
Need help?

Need help?

Do you have a question about the Touch 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tynetec Touch 2

  • Page 1 Wearing Options The Touch 2 pendant is supplied with a kit of parts, so it can be worn around the neck, clipped onto a belt or pocket, or on the wrist like a watch. It also includes a suction cup to stick the pendant to a tiled wall when in the bath or shower.
  • Page 2 Registering a Pendant onto a Reach at-home alarm unit 1. Put the Reach unit into radio device learn mode… “Trigger GREEN  Press and HOLD the button on the Reach unit. Radio Device” When the front light FLASHES FAST GREEN release the ...
  • Page 3 Registering a Pendant onto an Advent xt warden call system 1. Put the Advent xt system into radio device learn mode… “Ready” Using the Manager’s DECT telephone; Press the LINE key and wait for the “Ready” prompt. Enter 5 0 0 0 followed by the  key. Enter the flat number the pendant is being installed in followed by the ...
  • Page 4 Registering a Pendant onto an Altec Response local carer alarm unit 1. Put the Altec Response unit into radio device learn mode… tynetec Press ENTER to activate the wake-up display then ENTER again to display the main menu.  Radio Devices ...
  • Page 5: Nursecall System

    Tynetec and Aidcall operate a policy of continuous improvement and reserve the right to change product specifications without notice. If any variation to the details contained in this document are suspected please contact Tynetec’s customer support dept on 01670 352371.

This manual is also suitable for:

Zxt600
