7
Make a Measurement
7
8
After a Default Setup, the Probe Comp signal is output to the Probe Comp terminal. However,
N OTE
the oscilloscope can also output training signals on this terminal. See: Main Menu > Training
Signals > Training Signals. On P924xA oscilloscopes, the Probe Comp terminal is also the
Demo 1 terminal. There is no Demo 2 terminal (unlike some other InfiniiVision X-Series
oscilloscopes).

Turn On Measurements and Statistics

1
2
36
If necessary, use a nonmetallic tool (supplied with the probe) to adjust the
trimmer capacitor on the probe for the flattest pulse possible.
On N2894A probes, the trimmer capacitor is located on the probe BNC
connector.

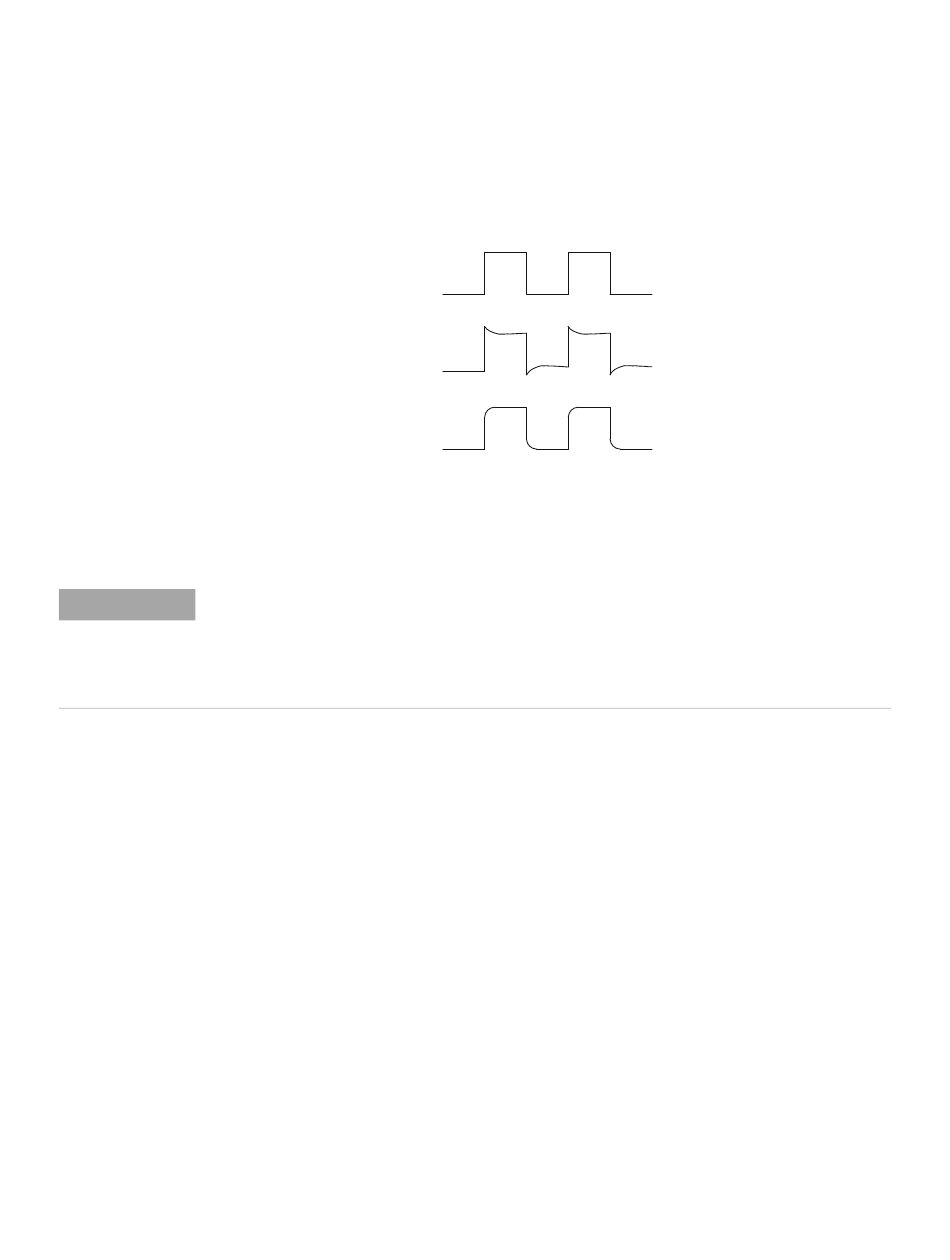

Perfectly compensated
Over compensated
Under compensated
Connect probes to all other oscilloscope channels (that is, channel 2 of a
2-channel oscilloscope).
Repeat the procedure for each channel.
To turn on measurements, choose Main Menu > Measure > Measurements.
To turn on measurement statistics, choose Main Menu > Measure > Statistics.
You should see a display similar to this:
Keysight P9241/42/43A Oscilloscopes Startup Guide
