Installation Instructions
Upright Mounting
Page 5 of 20 // Installation Instructions - HQA2 Two Way Articulated TV Wall Mount 80"-110"
•

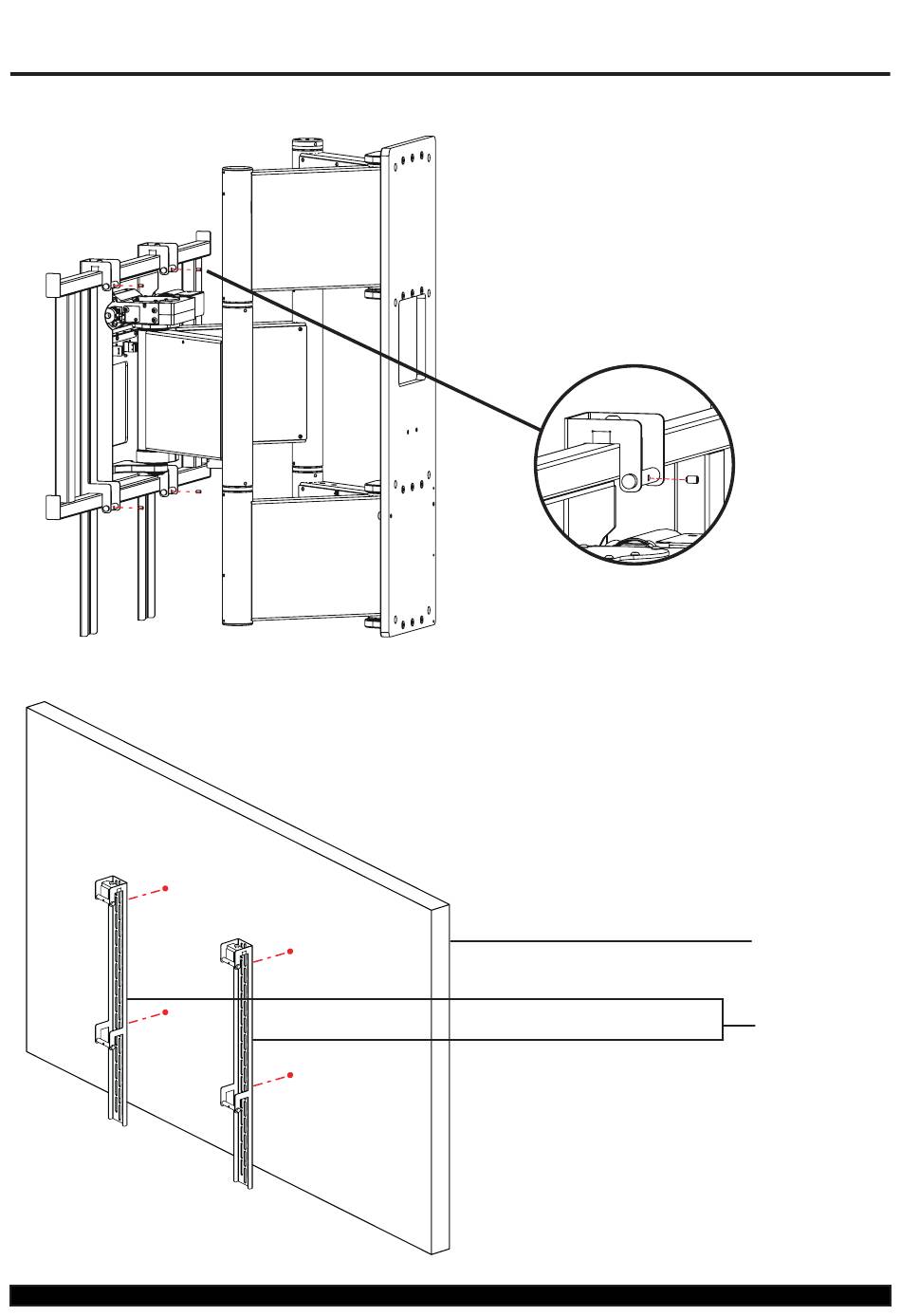

Loosen or remove the four grub
screws to release the Uprights from
the main assembly.
Keep the grub screws safe
for re-assembly later.
•
Align Screen Uprights onto the rear of the
display and bolt through into the VESA
mounting holes.
NOTE: If the display is not VESA compatible
a custom adapter will need to be added at
this stage.
Display
Uprights
