Apache Labs ANAN-100/D

Suitable routers or LAN Network switches:

A Full Duplex wired or wireless Ethernet Router with sufficient ports to connect the host computer and the
ANAN-100/D at 1000 baseT required to handle 80Mbps. Optional Full Duplex Ethernet 5 port switch with 1000
baseT Internet connectivity may be required if additional Ethernet ports are needed. Ethernet HUBS will NOT
work properly for this application.

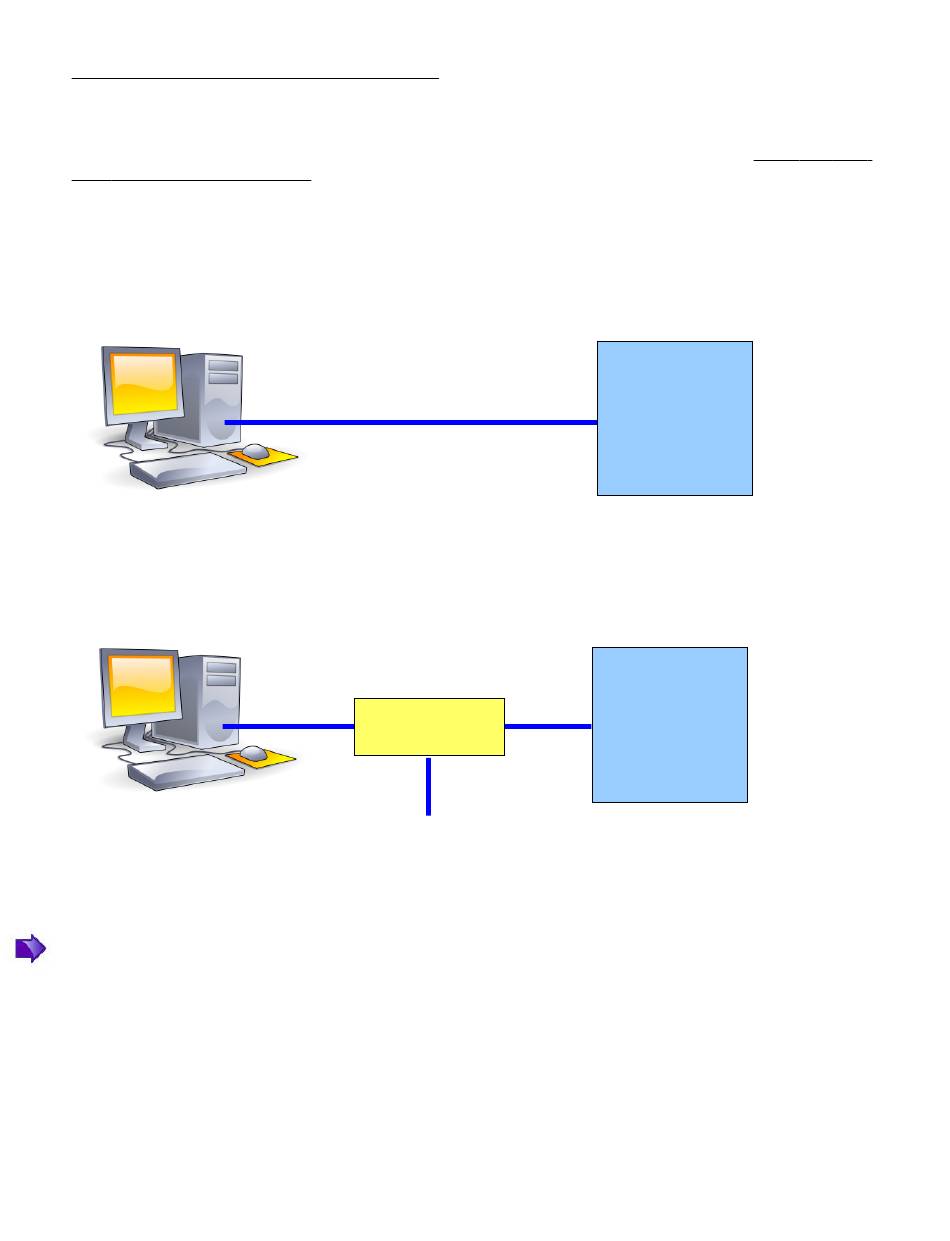

Ethernet Connection

crossover cable not required
ANAN-100/D
ANAN-100/D must be connected directly to a dedicated Ethernet port on the host PC or to a port on a suitable
Ethernet router or switch. Connection to a dedicated Ethernet port is shown above
1000 baseT
Switch
ANAN-100/D
home network
Ethernet switch is shown above
For direct connection of ANAN-100/D to a dedicated Ethernet port, a CAT 5 Ethernet cable is
used. Note that a 'crossover' cable is not necessary.
IMPORTANT: The Ethernet switch must be capable of operating in full duplex mode at
1000 baseT. The initial release of ANAN-100/D FPGA code operates at 100 baseT, but future
releases will run at 1000 base-T. For this reason, a 100 baseT Ethernet switch may be used in the
interim, but if a new purchase is planned then a 1000 baseT switch is recommended.
An Ethernet "HUB" will not work properly and is not recommended.
Revision v1.8 April 23, 2013 9 of 70 authors N9VV and KC9XG
