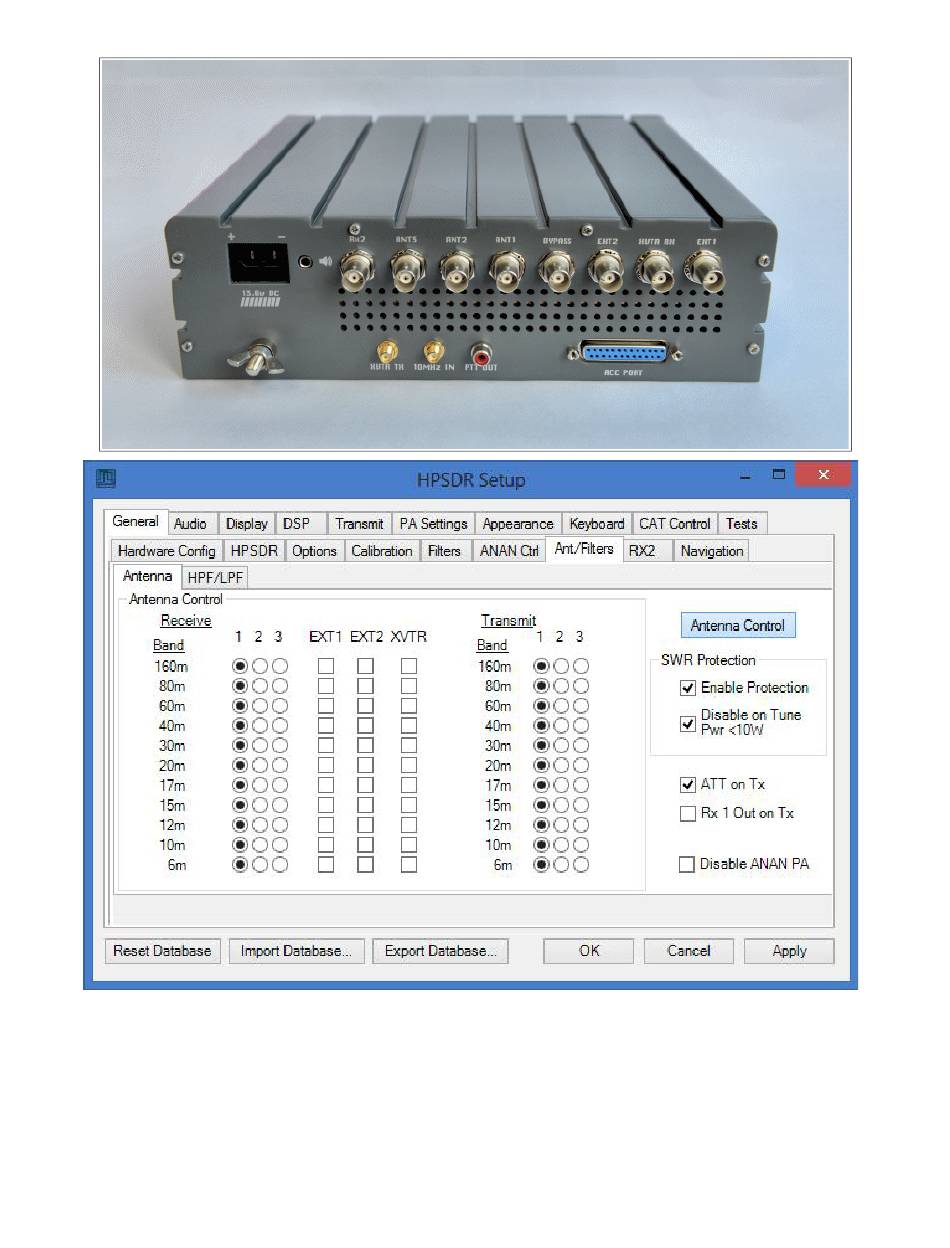

Note the Antenna Control box on the right allows you to control the following options:
1. Software SWR Protection.
Enabling this option will reduce power output when high SWR levels are detected.
2. Disable on Tune Pwr < 10W.
Enabling this option will disable Software SWR protection when the Tune power level is less than 10 watts. The
Tune power level can be set on the Setup, Transmit tab.
3. ATT on TX. This option inserts attenuation in the receiver when the ANAN-* is transmitting. This can prevent or reduce
the ADC/Receiver overload warnings during transmit.
4. RX 1 Out of Tx
5. Disable ANAN PA
