09931488A
FL 6500/ 8500 Variable Angle Solid Sam ple Holder
I nstallation I nstructions
This instruction sheet describes the installation of this accessory which is used with the FL 6500/8500
Fluorescence Spectrometer.
Read these instructions before you install this accessory.
NOTE:
Contacting P erkinElm er
Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part
numbers.
See our website:
http://perkinelmer.com
PerkinElmer's catalog service offers a full selection of high-quality supplies.
To place an order for supplies and many replacement parts, request a free catalog, or ask for information:
If you are located within the U.S., call toll free 1-800-762-4000, 8 a.m. to 8 p.m. EST. Your order will be
shipped promptly, usually within 24 hours.
If you are located outside of the U.S., call your local PerkinElmer sales or service office.
Features
• Use for measuring various samples of powder, film, glass, and plate, etc.
• Easy installation and user convenient sampling
• Excellent durability

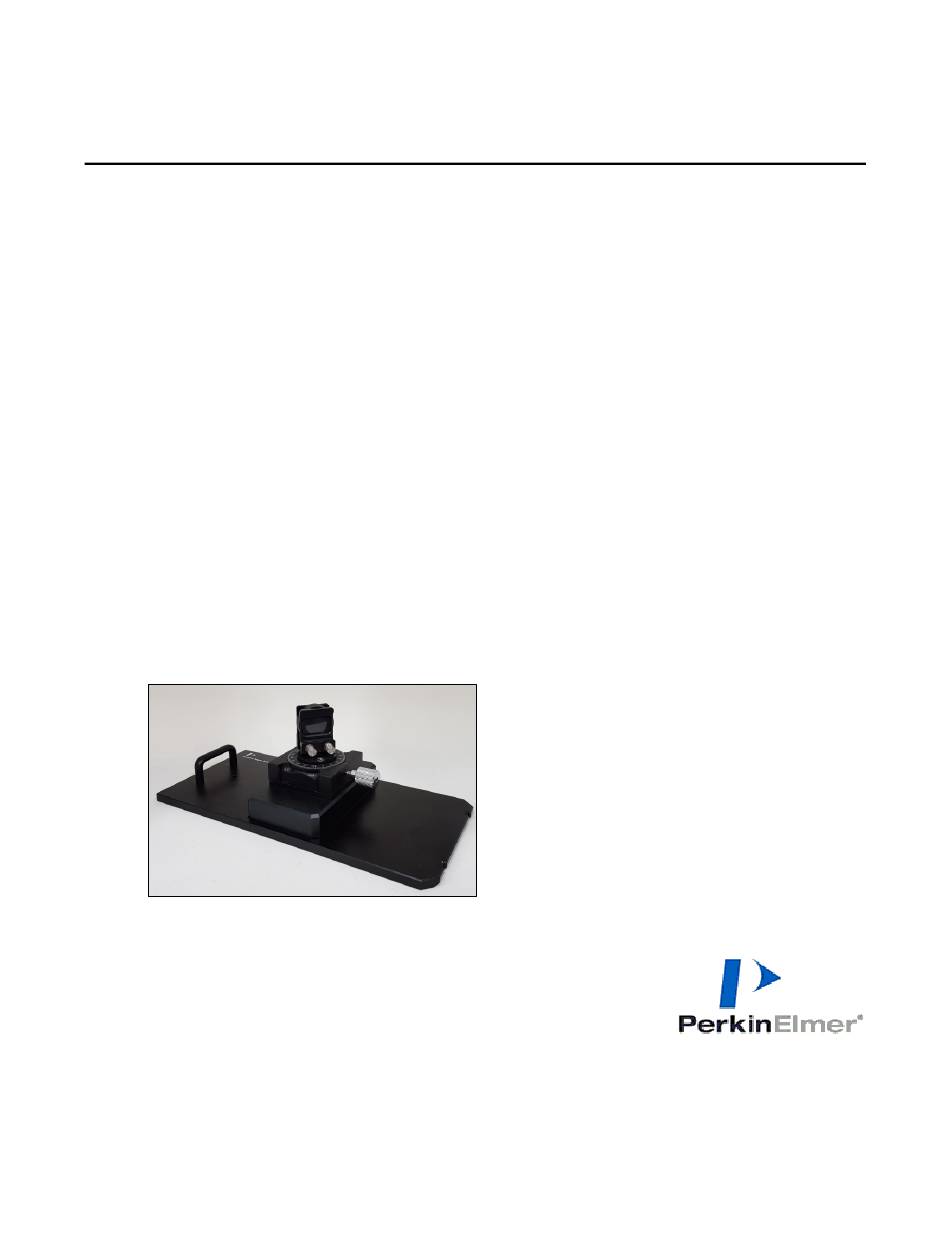

Figure 1 FL 6500/8500 Variable Angle Solid Sample Holder [P/N:N4201014]
PerkinElmer, 710 Bridgeport Avenue,
Shelton, CT 06484-4794, U.S.A
Produced in the USA.

Advertisement

loading

Related Manuals for PerkinElmer FL 8500

Summary of Contents for PerkinElmer FL 8500

  • Page 1 If you are located within the U.S., call toll free 1-800-762-4000, 8 a.m. to 8 p.m. EST. Your order will be shipped promptly, usually within 24 hours. If you are located outside of the U.S., call your local PerkinElmer sales or service office. Features •...

  • Page 2: Dimensions And Specifications

    09931488A Dim ensions and Specifications Physical Characteristic Specification Dimensions (mm) 130 x 267 x 95 (WDH) Weight (Kg) 0.96 Angle (Degree) 0 ~ 80 (Depend on sample size) Max. Length : 140 Sample Size (mm) Max. Thickness : 13 Configuration of the Variable Angle Solid Sam ple Holder Figure 2 Variable Angle Solid Sample Holder Configuration Figure 3 FL Precision Cell for Powder [P/N: N4201032] I nstallation...
  • Page 3 09931488A Figure 4 Loosening the Accessory Fixing Bolt Pull out the cell holder by hand. Figure 5 Pulling Out the Cell Holder After checking the pogo pin position of the sample compartment, attach the Variable Angle Solid Sample Holder to the pogo pin. Tighten the accessory fixing bolt.
  • Page 4 09931488A M easurem ent 1. Double click on the Spectrum FL software and select the measurement mode. 2. Check the recognition of Accessory. 3. Set up the measurement parameters. For more detail of method, refer to Spectrum FL Software Users Guide. NOTE: 4.

  • Page 5: Troubleshooting

    09931488A P recision Cell I nstallation Procedure 1. For powder sample, use the Precision Cell provided with the Variable Angle Solid Sample Holder. 2. Load the powder sample on the base of lower cover. 3. Place the screw top cover on the lower cover and tighten the precision cell by turning the screw cap clockwise.
  • Page 6 09931488A 2. Check if incident angle is proper. If incident angle get out of recommended incident angle (30 ~70˚) or sample position get out of center, fluorescence intensity measured low because sample is not adequately struck by beam.

This manual is also suitable for:

Fl 6500
