(Optional.) Installing an XFP/SFP+/SFP/QSFP+
transceiver module
1.
Unpack the transceiver module.
Do not touch the golden plating on the transceiver module.
2.
Pivot the clasp of the transceiver module up. Holding two sides of the transceiver module, gently
push the module into the slot until you feel that the bottom spring tab catch in the slot.
For a QSFP+ module that uses a plastic pull latch, skip this step.

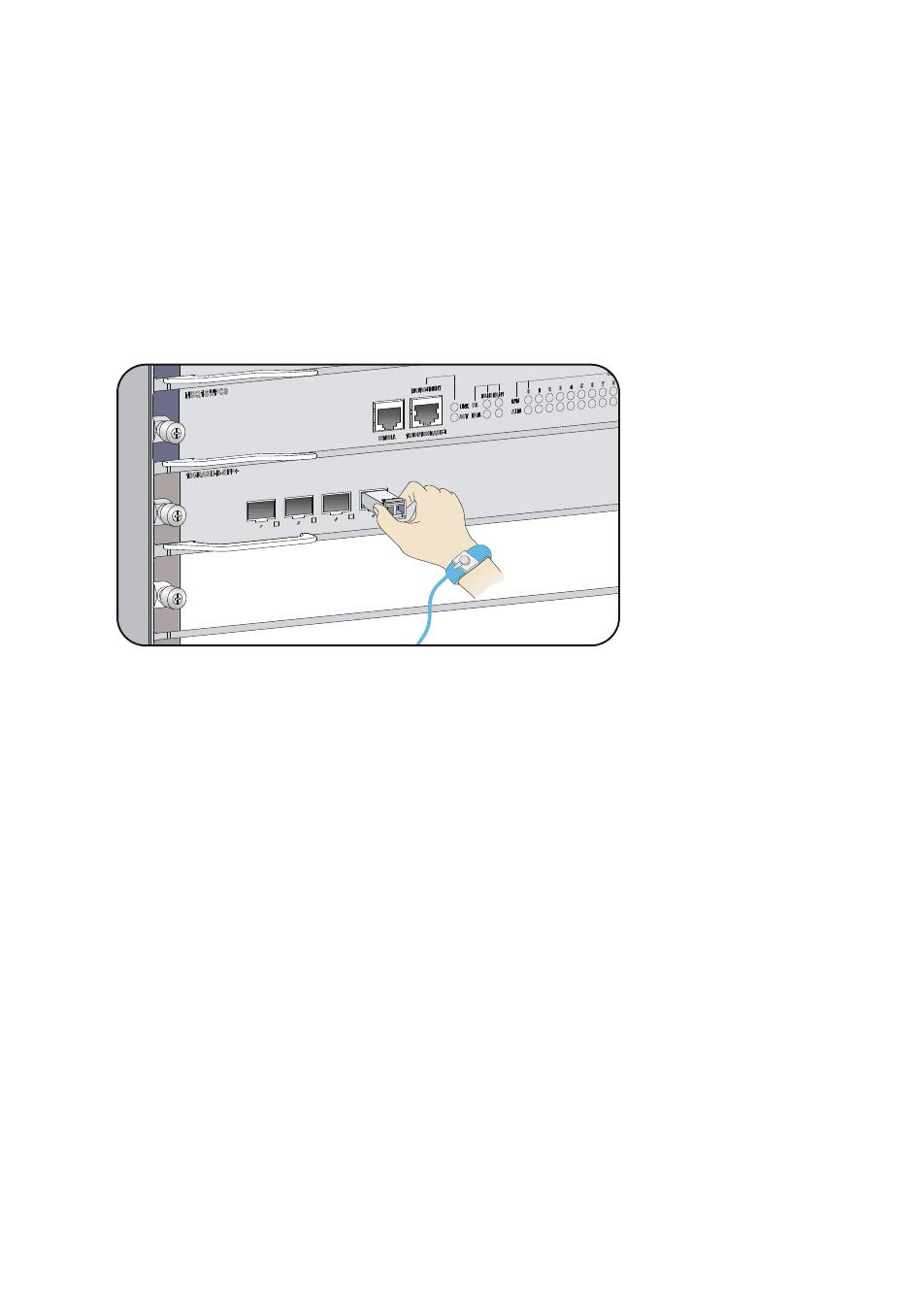

Figure 14 Installing an XFP/SFP+/SFP/QSFP+ transceiver module
Logging in to the IPS
1.
Connect the DB-9 connector of the console cable to the serial port of a terminal, for example, PC.
2.
Connect the RJ-45 connector of the console cable to the console port on the IPS.
13
