2. Attach the cable management bracket to the chassis and align the screws with the mounting holes
in the chassis, as shown in
3. Fasten the screws.

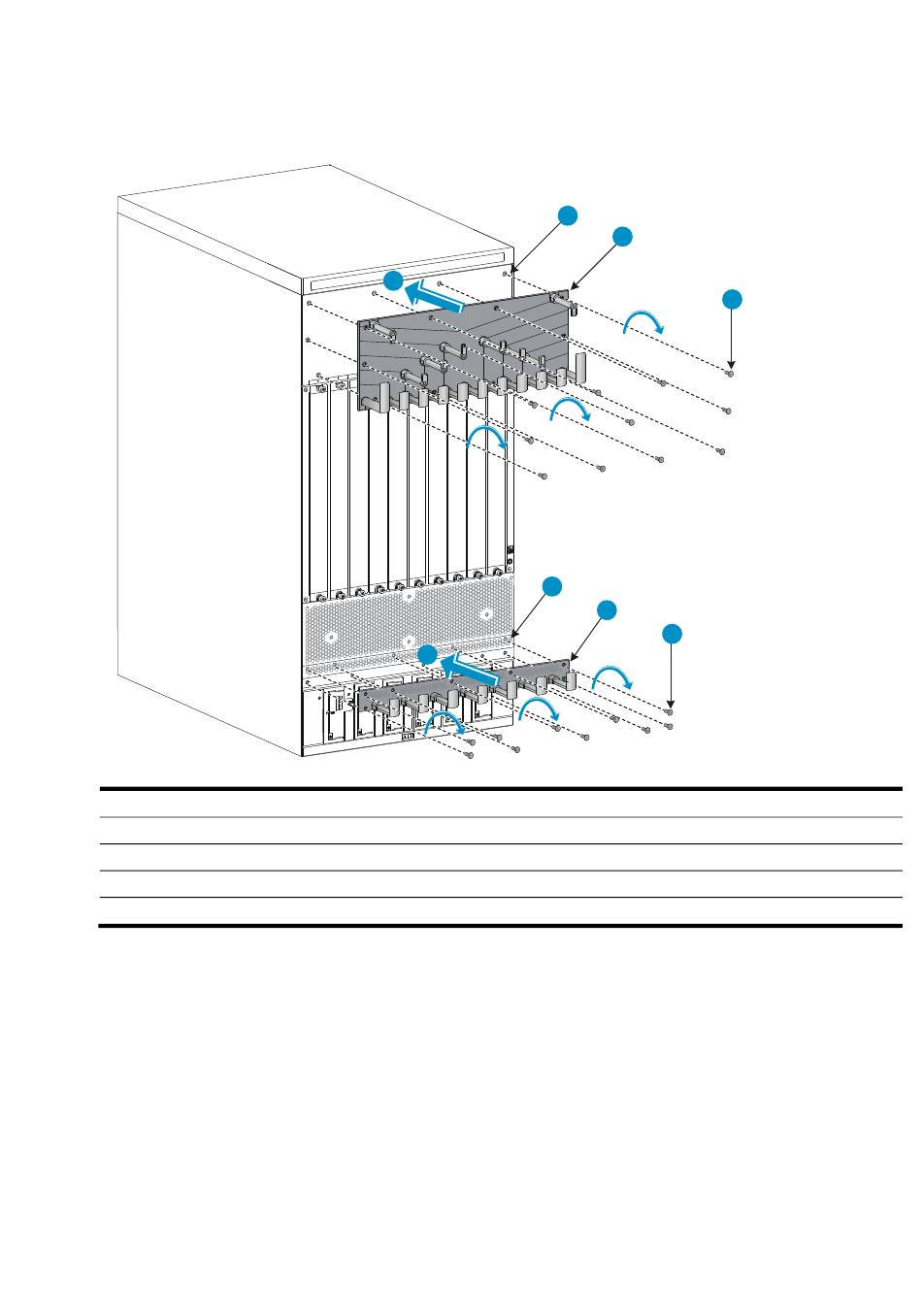

Figure 3 Attaching cable management brackets to a T9010 IPS
(1) Attach the cable management bracket to the chassis
(2) Screw holes for installing the cable management bracket
(3) Screws for attaching the cable management bracket to the chassis
(4) Signal cable management bracket (installed at the upper part of the chassis)
(5) Power cord management bracket (installed at the lower part of the chassis)
Figure 3.
1
1
5
2
4
2
5
3
3
