Installing the IPS in the rack

CAUTION:
Do not use the fan tray handle, power module handle, filler panel handle, or air vents of the chassis to
carry the IPS. Any attempt to carry the IPS with these parts might cause equipment damage or even bodily
injury.
This task requires a minimum of two people.
To install the IPS in the rack:
1. Move the chassis to face the rear of the chassis towards the front of the rack.
2. Lift the IPS by using the handles of the chassis and place the IPS on the slide rails or rack shelf. Then,
slide the IPS along the slide rails into the rack until the mounting brackets on the IPS touch the front
rack posts.
The handle of the T9006 IPS is located at the top of chassis. The handles of the T9010 and T9014
IPSs are located at the two sides of the chassis.
3. Use the mounting screws provided with the chassis to secure the chassis to the rack.
If the mounting holes in the mounting brackets cannot align with the cage nuts on the rack, perform
the following tasks:
Verify that the top flange of the slide rail or the top surface of the rack shelf aligns with the
middle of the narrower metal area between holes.
Verify that the cage nuts are installed in the correct holes.

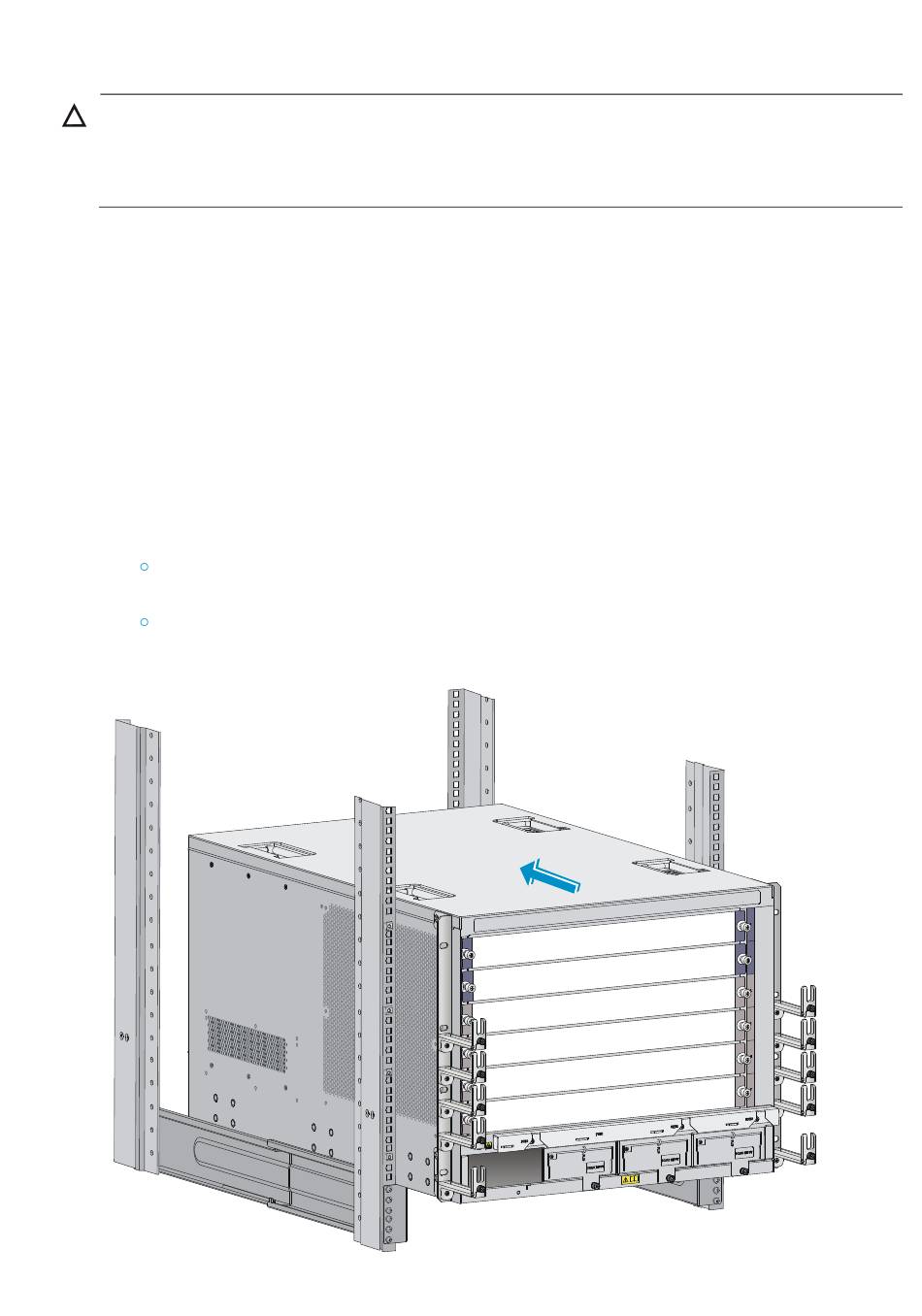

Figure 6 Installing the chassis in the rack (T9006)
