9. Measuring parameters
9.1 Transmitter types
The transmitter types in the table below can be used for the
measurement of values in the system.
Abbreviation Transmitter
DPT
Differential-pressure transmitter
DTT
Differential-temperature transmitter
FT
Flow transmitter
LT
Level transmitter
PT
Pressure transmitter
TT
Temperature transmitter
9.2 Parameter list
The table below shows which measured values the CU 352 can
receive via its analog inputs. Figures
values can be measured.
Number
Parameter
1
Flow rate
2
Discharge pressure
3
Differential pressure, external
4
Inlet pressure
5
Differential pressure, pump
6
Differential pressure, inlet
7
Differential pressure, outlet
8
Tank level, discharge side
9
Tank level, suction side
10
Return-pipe temperature, external
11
Flow-pipe temperature
12
Return-pipe temperature
13
Differential temperature
14
External pressure
15
Series 2000, differential pressure
16
Series 2000, flow rate
17
System pressure
Not shown
Ambient temperature *
Not shown
0-100 % signal **
* The ambient temperature is typically the temperature in the
room where the Control MPC is located.
** A 0-100 % signal from an external controller. It can for instance
be a 0-10 V signal.
4
2
5

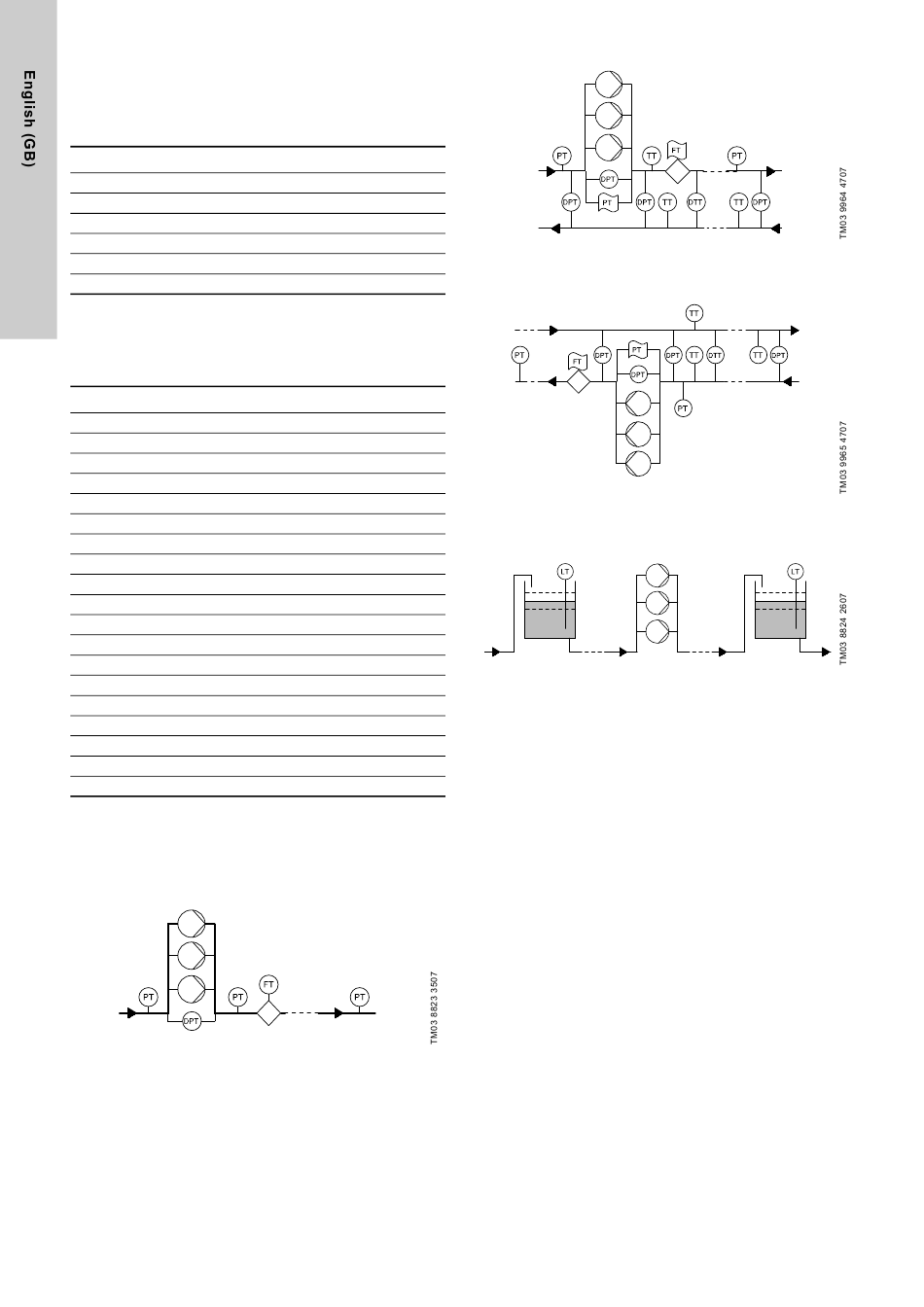

Fig. 124Pressure boosting
62
124
to
127
show where the
1
14
11
17
5
6
7
15
Fig. 125Heating and cooling, pumps in flow pipe
7
15
14
16
5
Fig. 126Heating and cooling, pumps in return pipe
9
Fig. 127Level monitoring
16
14
10
3
13
12
11
12
6
13
3
10
17
8
