8.7.59 Units (4.5.2)

Fig. 110Units
Description
Here you can select units for the various parameters.
Select between SI and imperial units. You can also select other
units for the individual parameters.
Setting range
Basic setting
Parameter
SI
Pressure bar
Differential pressure m
Head m
Level m
3
Flow rate m
Volume m
Specific energy kWh/m
Temperature °C
Differential temperature K
Power kW
Energy kWh
If units are changed from SI to imperial or vice versa,
Note all individually set parameters will be changed to the
basic setting in question.
Setting via control panel
• Settings > Functions, CU 352 > Units.
Possible units
Imperial
kPa, MPa, mbar,
psi
bar, m, psi
kPa, MPa, mbar,
psi
bar, m, psi
ft m, cm, ft, in
ft m, cm, ft, in
3 3
m /s, m /h, l/s,
3 3
/h gpm gpm, yd /s, yd
3
min, yd /h
3 3 3
gal l, m , gal, yd
3
kWh/m , Wh/gal,
3
Wh/gal Wh/kgal, BTU/
gal, HPh/gal
°F K, °C, °F
K K
HP W, kW, MW, HP
kWh, MWh, BTU,
kWh
HPh
Set unit standard, measuring parameter and specific unit.
See the example in fig. 111.

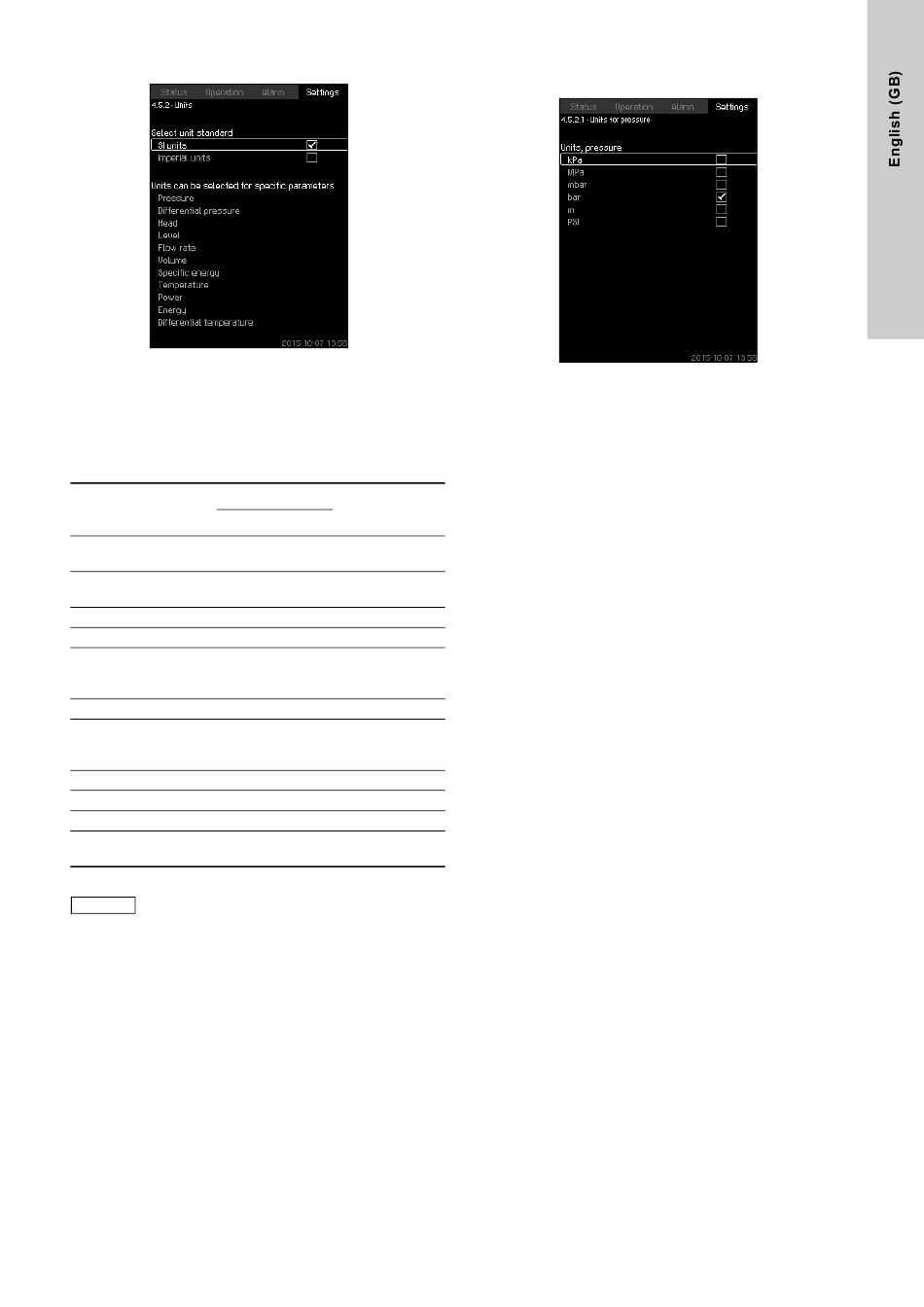

Fig. 111 Example of selection of units
Factory setting
The setting is done in the start-up wizard and depends on the
application.
/
