8.4.9 Battery status (1.2.7)

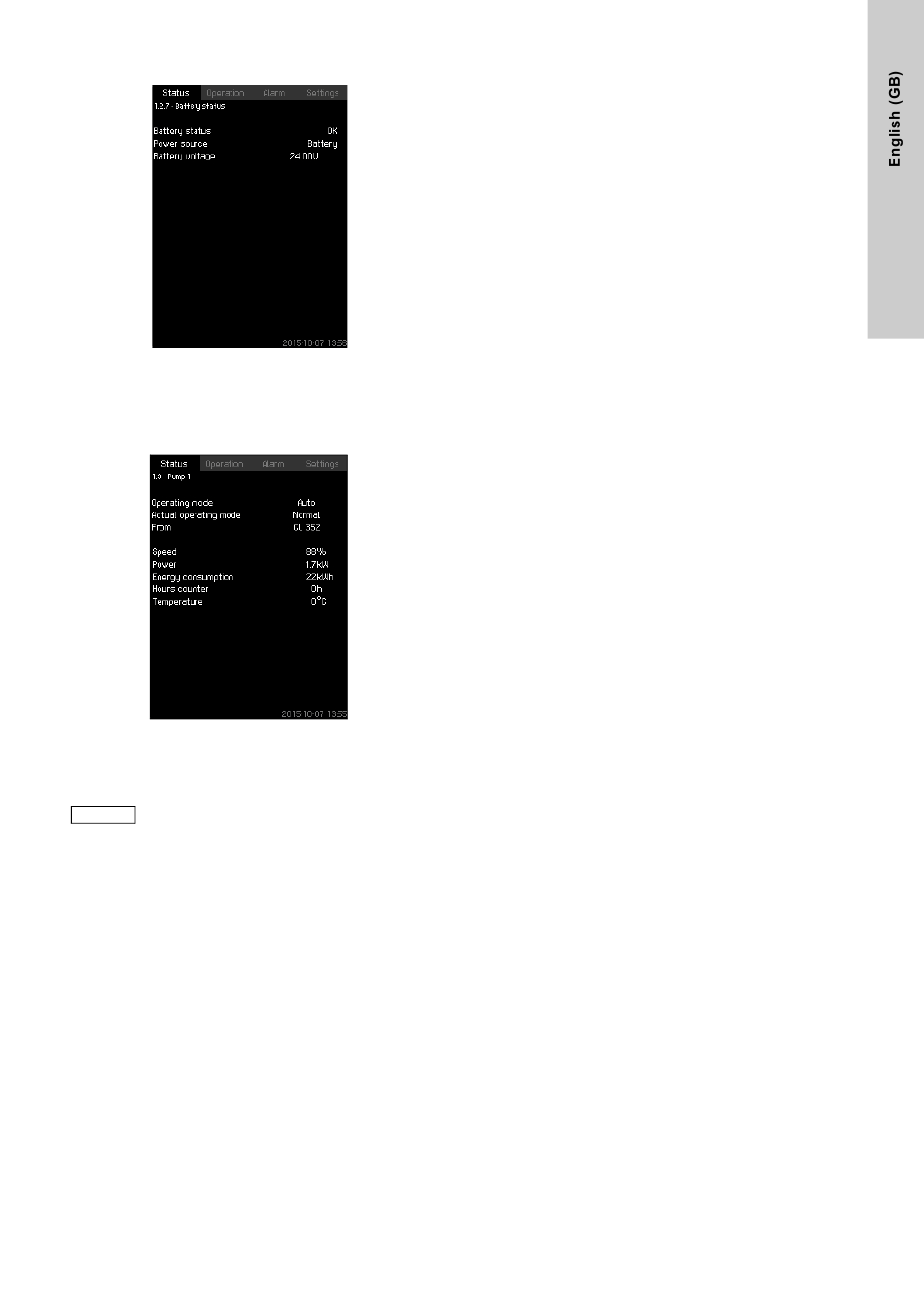

Fig. 15 Battery status
Description
Here you can see the status of the backup battery, if installed.
8.4.10 Pump 1 - 6, Pilot pump, Backup pump (1.3 - 1.10)
Fig. 16 Pump 1
Description
This display shows the operational state of the individual pumps.
The displays for backup and pilot pump are only
Note
shown if such pumps are installed.
The pumps can have different operating modes:
• Auto
– Together with the other pumps in automatic operation, the
pump is controlled by the PI controller which ensures that
the system delivers the required performance.
• Manual
– The pump is not controlled by the PI controller. In manual
operation, the pump has one of the following operating
modes:
• Max.
– The pump runs at a set maximum speed. (This operating
mode can only be selected for variable-speed pumps.)
• Normal
– The pump runs at a set speed.
• Min.
– The pump runs at a set minimum speed. (This operating
mode can only be selected for variable-speed pumps.)
• Stop
– The pump has been forced to stop.
Besides information about the operating mode, it is possible to
read various parameters in the status display, such as these:
• actual operating mode
• control source
• speed (only 0 or 100 % are shown for mains-operated pumps)
• power (only MPC-E/-EC)
• energy consumption (only MPC-E/-EC)
• operating hours.
