8.7.33 Analog outputs (4.3.10)

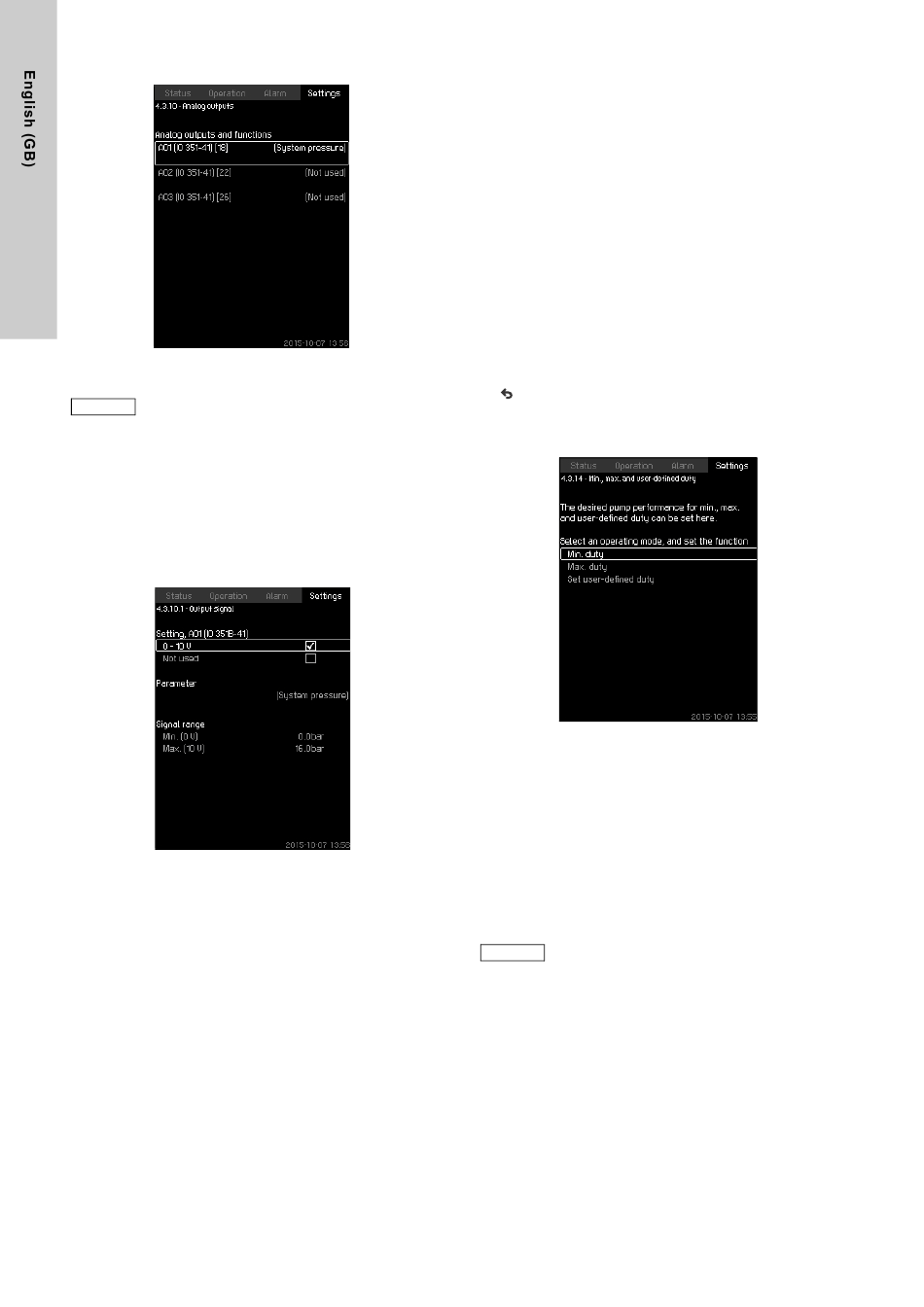

Fig. 79 Analog outputs
This display will only appear if an IO 351B module is
Note
installed.
Description
The CU 352 does not have analog outputs as standard, but the
system can be fitted with an IO 351B module with three analog
outputs.
Setting via control panel
• Settings > Secondary functions > Stop function > Analog
outputs.

8.7.34 Output signal (4.3.10.1 - 4.3.10.3)

Fig. 80 Output signal
Description
You can select the parameters below.
Setting range
• 0-100 % signal
• Inlet pressure
• Discharge pressure
• External pressure
• Diff. pressure, pump
• Tank level, discharge side
• Tank level, suction side
• System pressure
• Diff. pressure, external
• Tank precharge pressure
• Diff. pressure, inlet
• Diff. pressure, outlet
• Return-pipe temp., external
• Flow-pipe temperature
• Return-pipe temperature
• Differential temperature
44
• Ambient temperature
• Differential pressure 2 - 3
• System power
• Power, pump 1 - 6
• Power, pilot pump
• Power, backup pump
• Power, VFD
• Speed, pump 1 - 6
• Current, pump 1 - 6
• Current, pilot pump
• Current, backup pump
Setting via control panel
• Settings > Secondary functions > Stop function > Analog
outputs.
1. Select analog output and range.
2. Select: Parameter.
Display 4.3.10.2 appears.
3. Select output.
4. .
5. Set: Signal range.

8.7.35 Min., max. and user-defined duty (4.3.14)

Fig. 81 Min., max. and user-defined duty
Description
This function makes it possible to let the pumps run in open loop
at a set performance.
Setting range
The CU 352 makes it possible to change between three operating
modes:
1. Min. duty (4.3.14.1).
2. Max. duty (4.3.14.2).
3. User-defined duty (4.3.14.3).
For each of these operating modes, the number of
operating pumps and the pump performance (speed)
Note
can be set.
