3. Applications

Control MPC is used for control and monitoring of pumps in these
applications:
• booster systems
• circulation systems for heating, cooling and air-conditioning.

3.1 Pumps

Control MPC is designed for systems with these pumps:
• CR(E), CRI(E), CRN(E), CRIE
• NB(E), NBG(E)
• NK(E), NKG(E)
• TP
• TPE Series 1000
• TPE Series 2000
• HS
• SP
• MAGNA, UPE Series 2000.
The main pumps of the system must be of the same
Note
type and size.

3.2 Control variant

Control MPC is divided into four groups based on control variant:
Control
Description
variant
Two to six pumps with integrated frequency
-E
converter (0.37 - 22 kW).
Two to six pumps connected to a Grundfos CUE
-EC
frequency converter - one per pump.
Two to six MAGNA, UPE or TPE Series 2000
Series 2000
pumps
Two to six pumps connected to a Grundfos CUE
-F frequency converter. The speed-controlled
operation alternates between the pumps.
-S Two to six mains-operated pumps
See also section
5. Overview of control
The Control MPC includes software for pressure boosting,
heating and cooling.
variants.

4. Identification

4.1 Nameplate

The nameplate is fitted on the base frame.
Type: 1
Model: 2
Serial No.: 3
4
Mains supply:
5
I : A
n
P
No. kW
7 8
Fixed speed pumps:
11
10
E-pumps:
13 14
Pilot Pump:
16
Order No.:
17
Options:
20
23
IP
24
Weight: kg
25

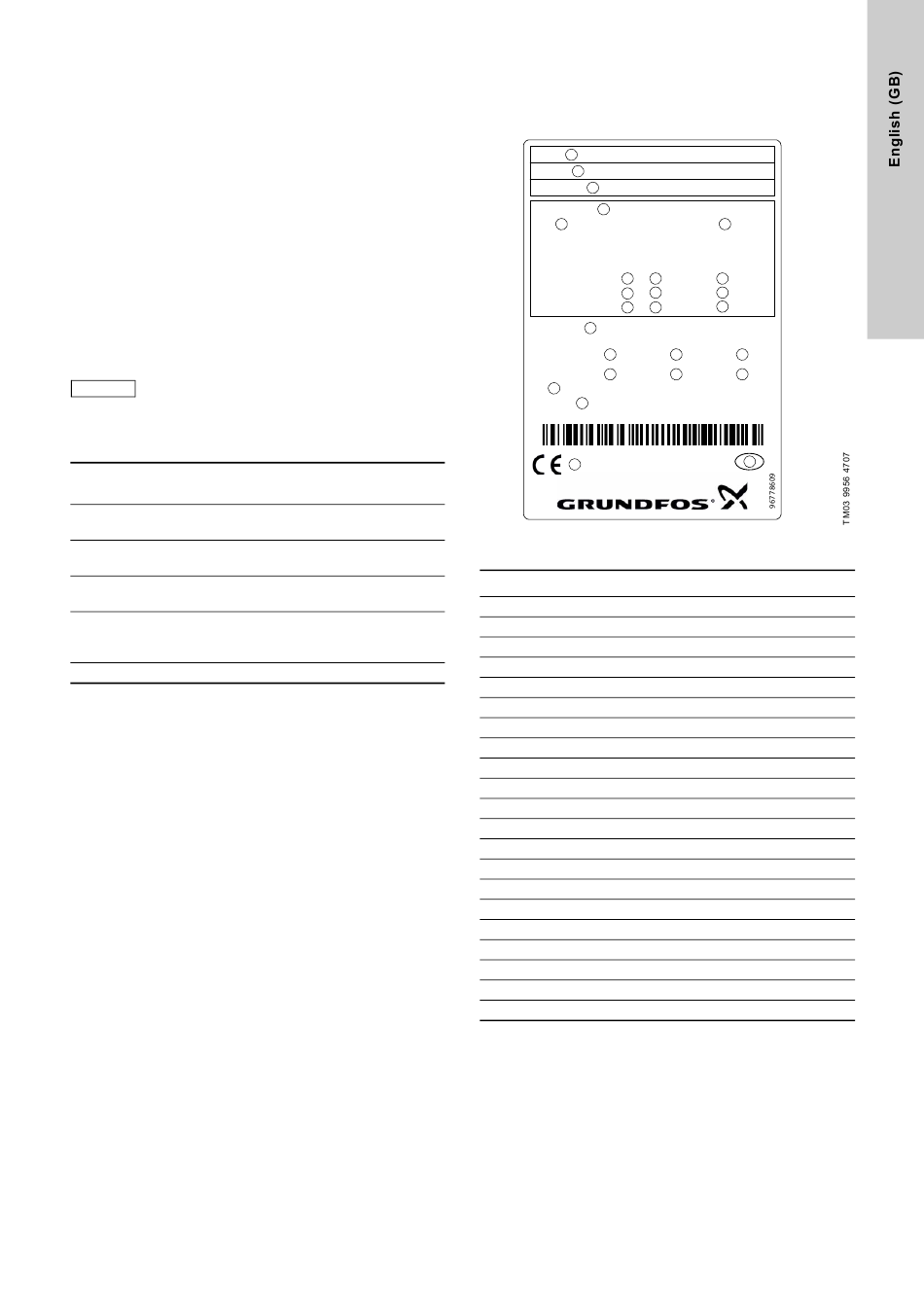

Fig. 2 Nameplate
Pos. Description
1 Type designation
2 Model
3 Serial number
4 Supply voltage
5 Rated current [A]
6 Maximum ambient temperature [°C]
7 Number of mains-operated pumps
8 Power [kW] of mains-operated pumps
9 Rated voltage [V] of mains-operated pumps
10 Number of pumps with frequency converter
11 Power [kW] of pumps with frequency converter
12 Rated voltage [V] of pumps with frequency converter
13 Number of pilot pumps
14 Power [kW] of pilot pumps
15 Rated voltage [V] of pilot pumps
16 Order number
17-22 Options
23 Enclosure class
24 Weight [kg]
25 CE mark
26 Country of origin
6 o
T : C
AMB.
U
n
V
9
12
15
18 19
21 22
26
Made in
