Factory setting

User name: admin
Password: admin
When you have entered user name and password, a Java
Runtime Environment application starts up in the CU 352,
provided that it has been installed on the computer. If this is not
the case, but the computer is connected to Internet, then use the
link on the screen to download and install the Java Runtime
Environment application.

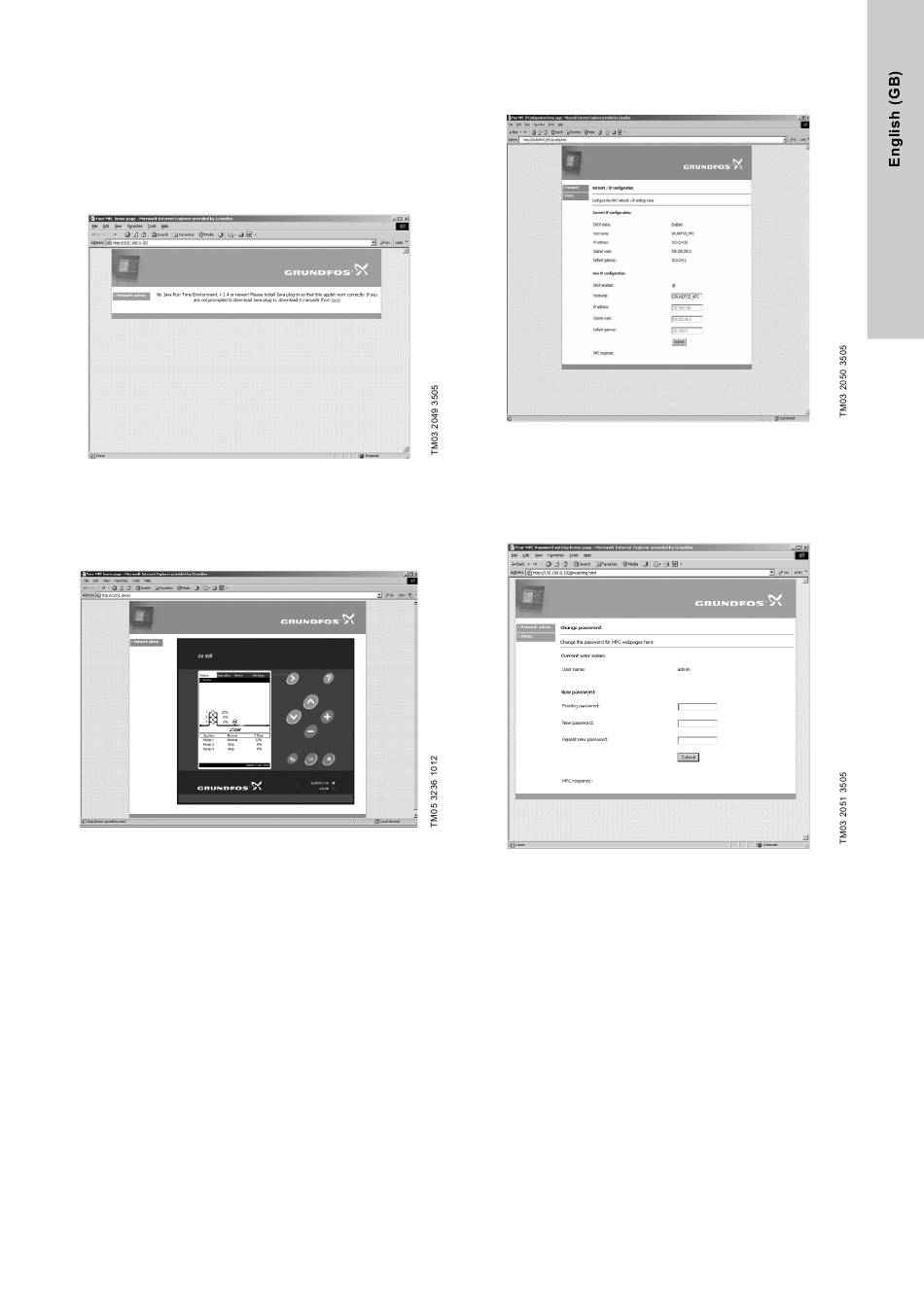

Fig. 120Display with link to the JavaScript® application
The Java Runtime Environment application will then export the
CU 352 user interface (including display and operating panel) to
the computer screen. It is now possible to monitor and control the
CU 352 from the computer.
Fig. 121Network setting

Change of network setting

When connection to the web server of the CU 352 has been
established, it is possible to change the network setting.
Fig. 122Change of network setting
1. Click [>Network admin].
2. Enter the changes.
3. Click [Submit] enable the changes.
Change of password
Fig. 123Change of password
1. Click [Change password].
2. Enter the new password.
3. Click [Submit] save the new password.
8.8.2 GENIbus
By installing a GENIbus module in the CU 352 it is possible to
connect the system to an external network. The connection can
take place via a GENIbus-based network or a network based on
another fieldbus protocol via a gateway. See examples in fig. 117.
For further information, contact Grundfos.
The gateway may be a Grundfos CIU communication interface or
a third-party gateway. For further information on the CIU, see
WebCAPS, or contact Grundfos.
