Floe V2000 Assembly Instructions Manual

Pontoon 20-1/2"
Hide thumbs Also See for V2000:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

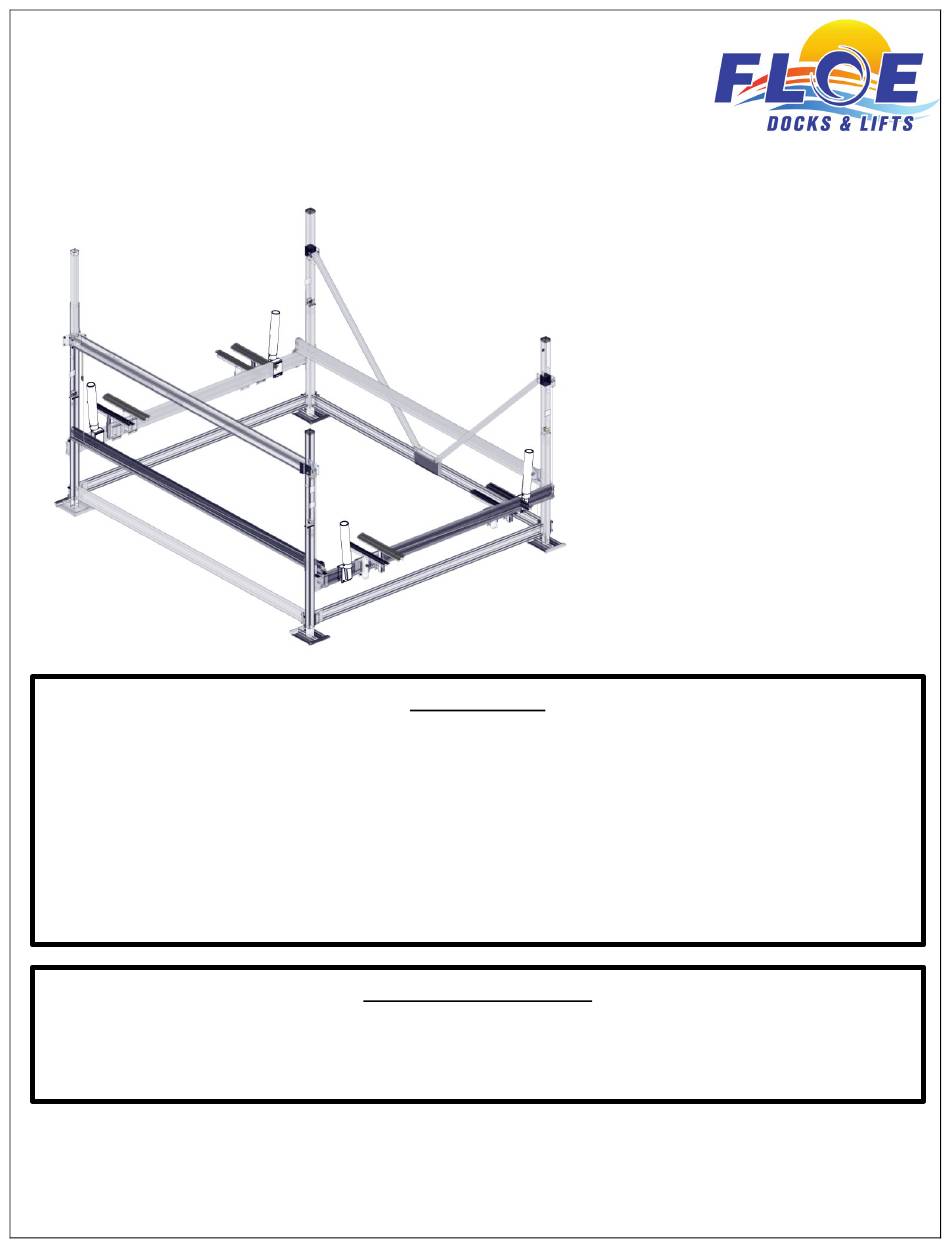

FLOE PONTOON 20-1/2" GUIDE INS
V2000-VSD5000 PONTOON
ASSEMBLY INSTRUCTIONS
KIT P/N 511-02280-00
IT IS THE INSTALLER'S RESPONSIBILITY TO ENSURE THAT THE GUIDE-INS ARE
PROPERLY SET UP SUCH THAT NO PART OF THE GUIDE-INS CAN COME IN
CONTACT WITH ANY PART OF THE LIFT, MOTOR, CANOPY RAILS, CANOPY
HOOPS, OR CANOPY FABRIC WHILE THE LIFT IS OPERATION. FAILURE TO
ADHERE TO THIS WARNING MAY RESULT IN SEVER DAMAGE TO THE LIFT
FOR CRADLE PAD/BUNK INSTALLATION, REFER TO THE INCLUDED
INSTRUCTION P/N: 611-02280-00
RELEASED 10/14/21
*LIFT & CRADLE PADS NOT INCLUDED
WARNING!!!
AND/OR ACCESSORIES.
INSTALLATION NOTE
INSTRUCTIONS WITH THE KIT
SHEET 1 OF 8
TOOLS REQUIRED
-(2) 7/16" SOCKETS/WRENCHES
-(2) 9/16" SOCKETS/WRENCHES
-TAPE MEASURE
-TORQUE WRENCH
-MARKER
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the V2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe V2000

Summary of Contents for Floe V2000

  • Page 1 FLOE PONTOON 20-1/2” GUIDE INS V2000-VSD5000 PONTOON ASSEMBLY INSTRUCTIONS KIT P/N 511-02280-00 TOOLS REQUIRED -(2) 7/16” SOCKETS/WRENCHES -(2) 9/16” SOCKETS/WRENCHES -TAPE MEASURE -TORQUE WRENCH -MARKER *LIFT & CRADLE PADS NOT INCLUDED WARNING!!! IT IS THE INSTALLER’S RESPONSIBILITY TO ENSURE THAT THE GUIDE-INS ARE...
  • Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-02280-00 PONTOON GUIDE-INS, 20.5” V2000-VSD5000P NUMBER PART NUMBER QTY. DESCRIPTION 001-70019-00 HHCS, 1/4-20 x 4” 18-8 SS 001-70115-00 HHCS, 3/8-16 x 3” 18-8 SS 001-75001-00 NUT, NYLOCK 1/4-20 ALUM. 001-76349-00 NUT, 3/8-16 ALUM. 002-04159-00 PIPE, PONTOON CRADLE PAD 20.5”...

  • Page 3: Installation

    INSTALLATION INSTALL CRADLE PADS/BUNKS IN DESIRED LOCATIONS (REFER TO INSTRUCTIONS INCLUDED WITH CRADLE PAD/BUNK KIT FOR INSTALLATION AND PLACEMENT) (FIGURE 1.1). SLIDE GUIDE-IN WELDMENTS ONTO CRADLE BEAMS WITH TUBES ALIGNED TOWARDS THE OUTSIDE OF THE LIFT (FIGURE 1.2). FIGURE 1.1 FIGURE 1.2 SHEET 3 OF 8...
  • Page 4 ATTACH WELDMENTS TO THE CRADLE BEAM USING (2) 3/8” X 4” BOLTS AND (2) 3/8” NUTS. DO NOT TORQUE AT THIS TIME (FIGURE 1.3). SLIDE PVC PIPES ONTO THE TUBES ON THE GUIDE-IN WELDMENTS (FIGURE 1.4). FIGURE 1.3 FIGURE 1.4 SHEET 4 OF 8...
  • Page 5 ATTACH USING (1) 1/4” X 4” BOLT AND (1) 1/4” NYLOCK NUT (FIGURE 1.5). TORQUE NUTS TO 10 FT-LB (FIGURE 1.6). NOTE: SEE FIGURE 1.9 FOR GENERAL GUIDELINES ON SETUP FIGURE 1.5 FIGURE 1.6 SHEET 5 OF 8...
  • Page 6 SLIDE GUIDE-IN COVERS OVER PVC PIPES (FIGURE 1.7). POSITION THE GUIDE-INS SO THEY ARE BUMPING AGAINST THE PONTOONS, BUT NOT BENDING/BINDING WHEN ENTERING OR EXITING THE LIFT. TORQUE 3/8” NUTS TO 35 FT-LB (FIGURE 1.8) FIGURE 1.7 FIGURE 1.8 SHEET 6 OF 8...
  • Page 7 NOTES SHEET 7 OF 8...
  • Page 8 SHEET 8 OF 8...

This manual is also suitable for:

Vsd5000
