Wire Access - GE AF-600 FP Operating Instructions Manual

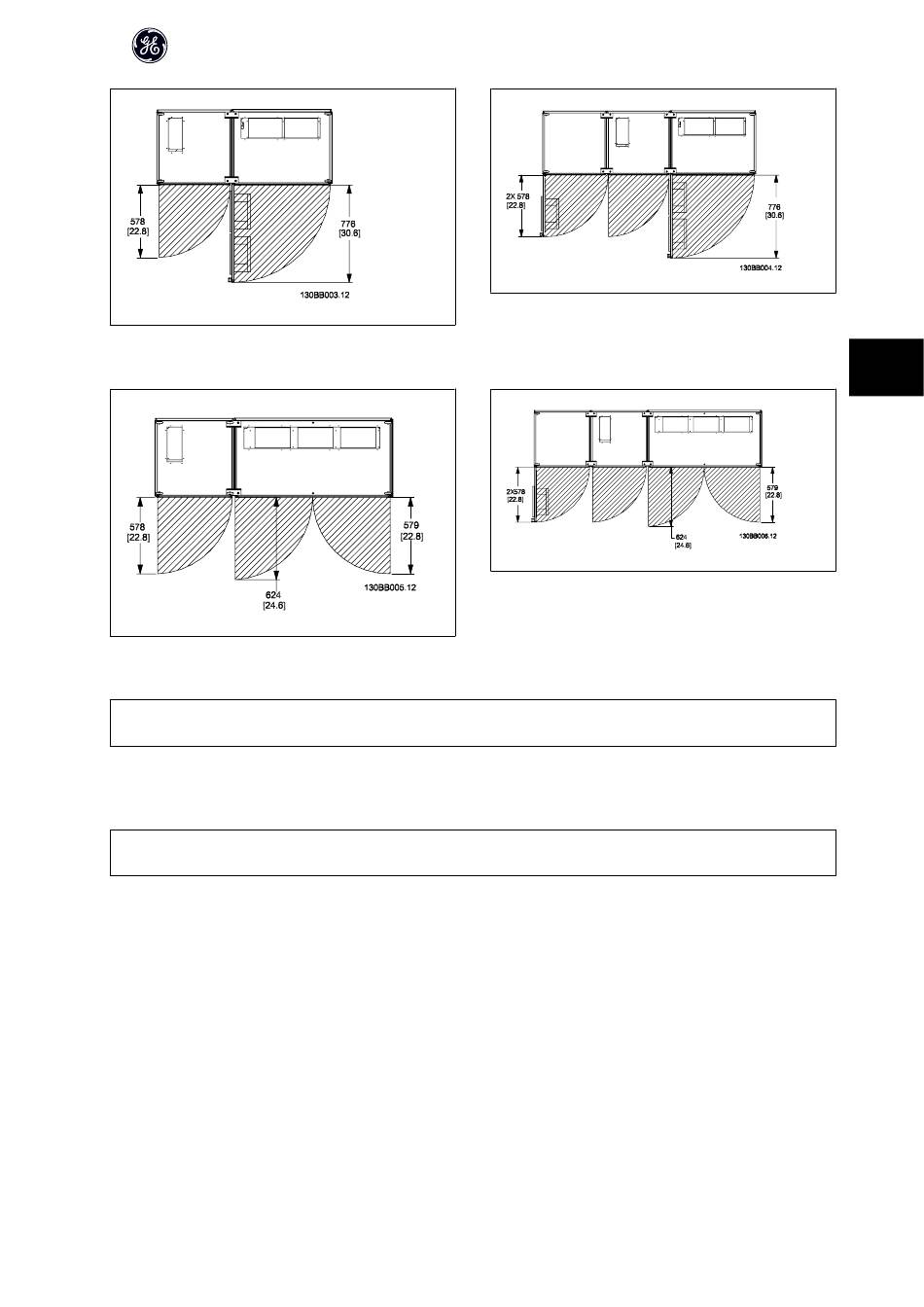

Illustration 5.10: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 61.
Illustration 5.12: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 62.
NB!
Airflow direction, see Mechanical Dimensions on previous pages

Wire access

Ensure that proper cable access is present including necessary bending allowance. As the IP00 Open Chassis drive type is open to the bottom cables must be
fixed to the back panel of the Unit where the frequency converter is mounted, i.e. by using cable clamps.
NB!
All cable lugs/ shoes must mount within the width of the terminal bus bar
AF-600 FP High Power Operating Instructions
Illustration 5.11: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 63.
Illustration 5.13: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 64.
5
53
