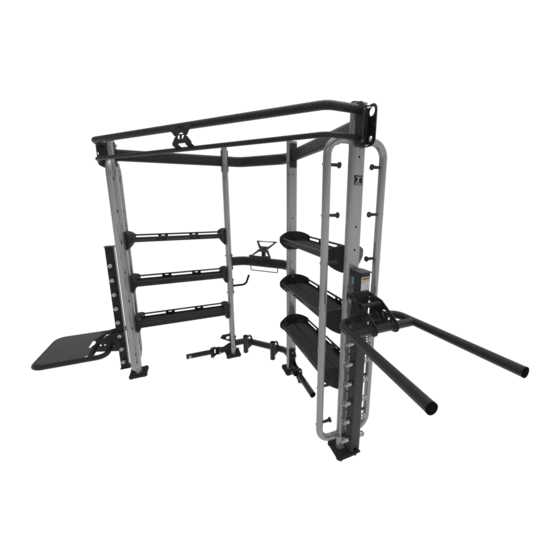

X-LAB-EDGE
Assembly Guide
VERSION: XLE-X3
PART #: 5518701-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-LAB-EDGE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Torque X-LAB-EDGE

  • Page 1 X-LAB-EDGE Assembly Guide VERSION: XLE-X3 PART #: 5518701-A...
  • Page 2 STEP 1 XLAB-701 XLAB-701 XLAB BOOT XLAB BOOT PAGE 2...
  • Page 3 STEP 2 XLAB-701 XLAB-701 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3-3/4" BOLT (4) GRT-101 GRT-101 BATTLE ROPE CONNECTOR LOOSELY assemble bolt connections in this step. PAGE 3...
  • Page 4 STEP 3 TOP CONNECTOR 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3-1/2" BOLT (4) XLAB-401 XLAB-401 XLAB-701 XLAB-701 LOOSELY assemble bolt connections in this step. PAGE 4...
  • Page 5 STEP 4 XLAB-301 XLAB-301 XLAB-BOOT XLAB-BOOT PAGE 5...
  • Page 6 STEP 5 XLAB-401 XLAB-401 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) SUSPENSION CROSS XLAB-301 XLAB-301 LOOSELY assemble bolt connections in this step. PAGE 6...
  • Page 7 STEP 6 XLAB-701 XLAB-301 XLAB-701 XLAB-301 AT-101 AT-101 1/2 X 3-3/4" BOLT (4) 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) 1/2" LOCK NUT (4) LOOSELY assemble bolt connections in this step. PAGE 7...
  • Page 8 STEP 7 XLAB-701 XLAB-701 CONNECTOR 1/2 X 3-1/4" 1/2 X 3-1/4" XLAB-301 BOLT XLAB-301 BOLT AT-101 AT-101 1/2 X 3-3/4" BOLT (4) 1/2 X 3-3/4" BOLT (4) BATTLE 1/2" FLAT WASHER (12) 1/2" FLAT WASHER (12) ROPE 1/2" LOCK NUT (6) 1/2"...
  • Page 9 STEP 8 AT-101 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) XLAB-301 1/2" LOCK NUT (4) XLAB-701 XLAB-AA-101 1/2" FLAT WASHER (2) 1/2 X 3-1/2" BOLT 1/2" LOCK NUT LOOSELY assemble bolt connections in this step. PAGE 9...
  • Page 10 STEP 9 AT-101 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) XLAB-301 1/2" LOCK NUT (4) XLAB-701 XLAB-AA-101 1/2" FLAT WASHER (2) 1/2 X 3-1/2" BOLT 1/2" LOCK NUT LOOSELY assemble bolt connections in this step. PAGE 10...
  • Page 11 STEP 10 BRACKET COVER BRACKET COVER NOTE: MAKE SURE TABS OF THE COVER ARE INSERTED INTO THE GROOVES OF THE BRACKET 6 PLACES COVER SUSPENSION GROOVES CROSS TABS BRACKET ATTENTION: SECURELY TIGHTEN ALL BOLT CONNECTIONS FROM THE PAGE 11 PREVIOUS STEPS BEFORE COMPLETING THIS STEP.
  • Page 12 STEP 11: XCC-101 ASSEMBLY XCC-101 XCC-101 ATTENTION: ASSEMBLE THE XCC-101 TO THE XLAB EDGE USING PAGE 12 THE INSTRUCTIONS INCLUDED WITH THAT PRODUCT.

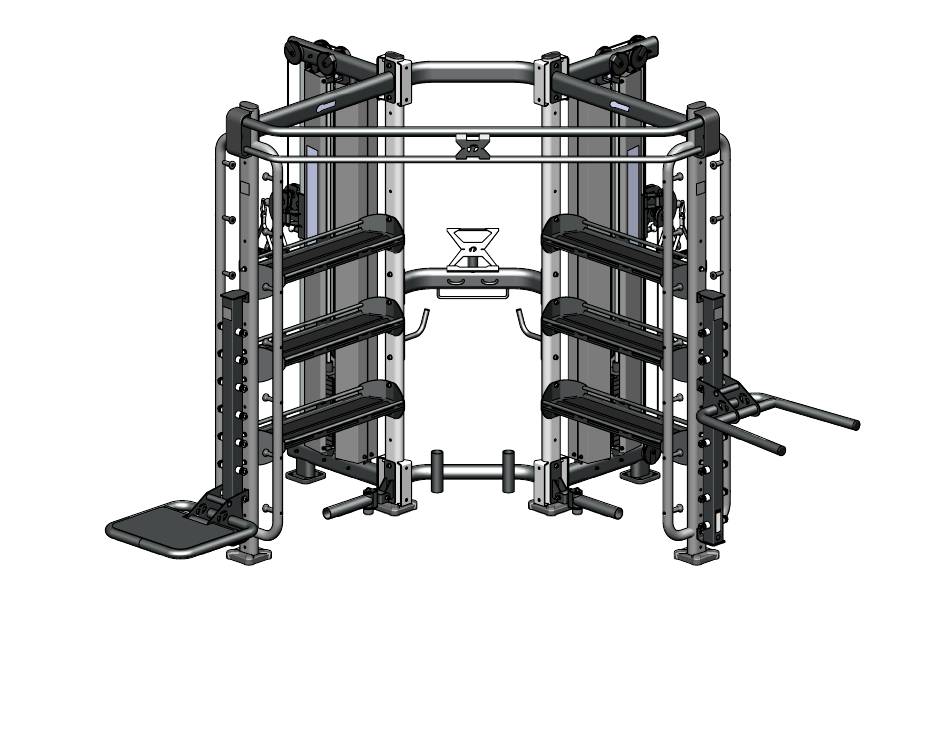

  • Page 13: Assembled View

    STEP 12 HOOKS PEGS XLAB-AA-101 ASSEMBLED VIEW WARNING! XLAB-PLYO STEP MAKE SURE THAT BOTH HOOKS OF PLYO STEP ARE SEATED SECURELY IN GROOVES OF PEGS ON ATTACHMENT ANCHOR PAGE 13 BEFORE PERFORMING ANY EXERCISES.
  • Page 14 STEP 13 HOOKS PEGS XLAB-AA-101 XLAB-DA-101 ASSEMBLED VIEW WARNING! MAKE SURE THAT BOTH HOOKS OF DIP ATTACHMENT ARE SEATED SECURELY IN GROOVES OF PEGS ON ATTACHMENT PAGE 14 ANCHOR BEFORE PERFORMING ANY EXERCISES.
  • Page 15 ANCHOR STEPS: 1) Position machine in desired location. 2) Trace around the four base plates and the four holes in each base plate. 3) Move machine. 4) Drill anchor holes. Follow instructions on anchor bolt packaging. 5) Vacuum dust out of each anchor hole. 5) Move machine back over anchor holes.
