Torque XGYM-WR-1.0 Assembly Manual

X-gym wall rack
Hide thumbs

Advertisement

Quick Links

Download this manual
X-GYM WALL RACK - 1.0 ASSEMBLY GUIDE
VERSION: XGYM-WR-1.0
PART #: 5726501-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the XGYM-WR-1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XGYM-WR-1.0

Summary of Contents for Torque XGYM-WR-1.0

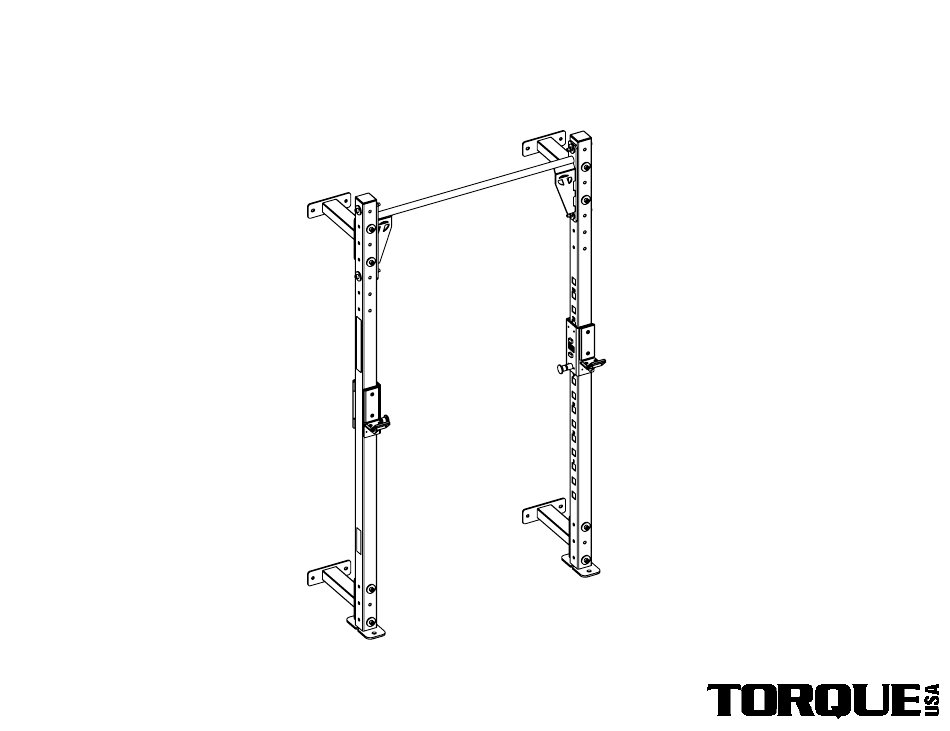

  • Page 1 X-GYM WALL RACK - 1.0 ASSEMBLY GUIDE VERSION: XGYM-WR-1.0 PART #: 5726501-A...
  • Page 2 Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. • If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). or 1-877-TORQUE5 (1-866-664- 9894). www.service@torquefitness.com Important Safety Instructions for Assembling Equipment •...

  • Page 3: General Notes

    If any items are missing, page. To correctly measure the bolts, measure connections that should be securely tightened, contact Torque Fitness Customer service at: from underneath the bolt head to the end of the while secondary connections need to be loosen 763-754-7533 (8:30 am - 5:00 pm CST).
  • Page 4 ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 57231PA PTD ASSY, 7.5' UPRIGHT 54742PA PTD ASSY, RIGHT BAR SUPPORT 5723501 WLDMT, 1 FT WALL MOUNT ANCHOR 54745PA PTD ASSY, LEFT BAR CATCH 2007801 WASHER, 1/2 X 1-3/4 X 4.5t 54748PA PTD ASSY, RIGHT BAR CATCH 2005817 BOLT, 1/2-13 X 4-1/2"...
  • Page 5 STEP 1 NOTE: LOOSELY tighten bolt connections in this step.
  • Page 6 STEP 2A NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE OPTIONAL NINJA CROSS TO THE UNIT THE EXACT SAME WAY. IF YOU PURCHASED THE OPTIONAL MULTI GRIP CROSS, PLEASE REFER TO NEXT PAGE FOR ASSEMBLY.
  • Page 7 STEP 2B (OPTIONAL MULTI GRIP CROSS) MULTI GRIP CROSS NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 8 STEP 3 (WALL ANCHOR MOUNT) WARNING: THE UPPER AND LOWER WALL MOUNT ANCHORS MUST BE ANCHORED TO THE WALL USING EIGHT WALL ANCHORS SUITABLE FOR THAT PARTICULAR WALL CONSTRUCTION. 1" 81-3/4" 4-3/4" NOTES: 8" The images above show how to attach the rack to the wall using wall 46"...
  • Page 9 STEP 4A (HEADER/FOOTER MOUNT) WARNING: THE HEADER AND FOOTER MUST BE ANCHORED TO THE WALL USING TWELVE WALL ANCHORS SUITABLE HEADER BOARD FOR THAT PARTICULAR WALL CONSTRUCTION. (NOT INCLUDED) 60" (2X) 2 X 6 X 5 3/8" LAG BOLTS (12) 2-1/2"...
  • Page 10 STEP 4B (HEADER/FOOTER MOUNT) WARNING: THE RACK MUST BE ANCHORED TO THE HEADER AND FOOTER BOARDS USING ALL EIGHT WALL ANCHORS. 81-3/4" 4-3/4" NOTES: The images above show how to attach the rack to the header and FLOOR 4" footer boards from previous step using 3/8" lag bolts. NOTE: All eight anchoring locations must be used.
  • Page 11 STEP 5A (OPTIONAL HEADER PLATE MOUNT) WARNING: THE UPPER AND LOWER HEADER PLATE MOUNTS MUST BE ANCHORED TO THE WALL USING 16 WALL ANCHORS SUITABLE FOR THAT PARTICULAR WALL CONSTRUCTION. 16" 16" 16" 85-1/8" 78-7/16" NOTES: 8-1/16" The images above show the anchoring hardware used for attaching 1-3/8"...
  • Page 12 STEP 5B (OPTIONAL HEADER PLATE MOUNT)
  • Page 13 STEP 5C (OPTIONAL HEADER PLATE MOUNT) NOTES: SECURELY tighten all bolt connections in this step.
  • Page 14 STEP 6 INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
  • Page 15 STEP 7 (OPTIONAL BAR CATCHES) INSERT BAR CATCHES INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR CATCHES FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
  • Page 16 STEP 8 (OPTIONAL DIP ATTACHMENT) INSERT DIP ATTACHMENT INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE DIP ATTACHMENT FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
  • Page 17 STEP 9A & 9B (OPTIONAL UPPER BAND PEG ATTACHMENT) LOOSEN AND REMOVE BOLTS, WASHERS AND NUTS. RE-USE BOLTS, WASHERS AND NOTE: NUTS FROM ASSEMBLE ONE SIDE PREVIOUS STEP AT A TIME NOTE: SECURELY tighten all bolt connections in this step.
  • Page 18 STEP 10A & 10B (OPTIONAL BATTLE ROPE ANCHOR) NOTE: DISCARD TWO RE-USE BOLTS FRONT WASHERS AND NUTS FROM PREVIOUS STEP NOTE: LOOSEN AND REMOVE USE TWO NEW BOLTS, WASHERS AND WASHERS NUTS. NOTE: SECURELY tighten all bolt connections in this step.
  • Page 19 STEP 11A & 11B (OPTIONAL GROUND ROTATIONAL TRAINER) RE-USE BOLTS AND NUTS FROM PREVIOUS STEP NOTE: DISCARD TWO FRONT WASHERS NOTE: BOLTS MUST BE ASSEMBLE FROM THIS SIDE LOOSEN AND REMOVE BOLTS, WASHERS AND NUTS. NOTE: USE TWO NEW WASHERS NOTE: SECURELY tighten all bolt connections in this step.
  • Page 20 STEP 12A & 12B (OPTIONAL LOWER BAND PEG ATTACHMENT) LOOSEN AND REMOVE BOLTS, WASHERS AND NUTS. RE-USE BOLTS, WASHERS AND NOTE: NUTS FROM ASSEMBLE ONE SIDE PREVIOUS STEP AT A TIME NOTE: SECURELY tighten all bolt connections in this step.
  • Page 21 STEP 13 (OPTIONAL HORIZONTAL MOUNT GROUND ROTATIONAL TRAINER TO LOWER BAND PEG ATTACHMENT) NOTE: SECURELY tighten all bolt connections in this step.
  • Page 22 STEP 14 (OPTIONAL BATTLE ROPE ANCHOR TO LOWER BAND PEG ATTACHMENT) NOTE: SECURELY tighten all bolt connections in this step.

  • Page 23: Maintenance

    Tighten spring pin nuts as needed. • FRAME: Wipe down frame with a damp cloth. SPRING PIN WARNING LABEL Torque Fitness 11201 Xeon Street NW Ste 101 Coon Rapids, MN USA 55448 GENERAL WARNING LABEL www.torquefitness.com Toll free: 1-877-TORQUE5 (1-866-664-9894) or 763-754-7533 (8:30 am –...
